Challenge Titan 200Pro
Challenge Titan 200Pro
Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:
How to Purchase This Item:
How to Purchase This Item:
- Web: Sales Contact Form
- Call: 1-800-343-4231
- Email: sales@midstatelitho.com
- Text: (810) 238-7370

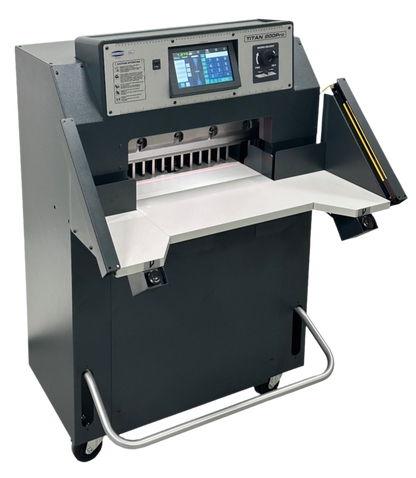

Hydraulic Paper Cutter
The Titan 200Pro is a 20-inch programmable hydraulic paper cutter engineered for precision, safety, and reliability. Designed for demanding production environments, it offers intuitive controls, powerful cutting capabilities, and a compact footprint for easy integration into any print shop or bindery.
Key Features:
- 9-inch color touchscreen with adjustable viewing angle
- 20-inch cutting width and up to 3.25-inch stack height
- Programmable backgauge with job memory for repeatable cuts
- Hydraulic clamp and knife with electronic pressure adjustment
- Dual-button cut cycle and safety shield or light beam safety options
- Lockable casters for easy mobility and repositioning
- USB port for storage and updates
- Heavy-duty cast iron and steel construction
Specifications:
|
Specification |
Detail |
|
Cutting Width |
20 in (50.8 cm) |
|
Maximum Cutting Height |
3.25 in (82 mm) |
|
Minimum Cut (no false clamp) |
0.5 in (13 mm) |
|
Minimum Cut (with false clamp) |
1.875 in (48 mm) |
|
Clamp Opening (no false clamp) |
3.25 in (82 mm) |
|
Clamp Opening (with false clamp) |
3.0 in (76 mm) |
|
Table Front of Knife |
15.25 in (39 cm) |
|
Table Behind Knife |
20 in (51 cm) |
|
Overall Dimensions (W x D x H) |
36 x 49.625 x 53 in |
|
Net Weight |
795 lbs (361 kg) |
|
Shipping Weight |
920 lbs (418 kg) |
|
Electrical Requirements |
230V, 1 Phase, 60Hz, 12 Amps |
Applications:
Ideal for cutting printed sheets, bound books, marketing collateral, and digital output. Built for high-volume environments that require consistent, accurate performance.
