James Burn International

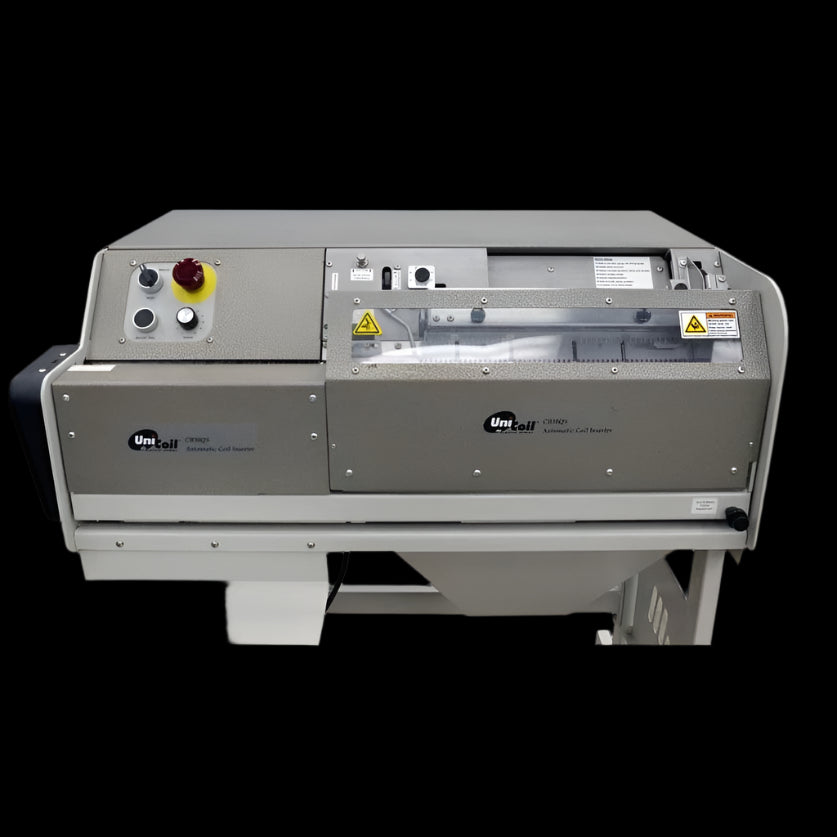

James Burn CB30QS

James Burn CB30QS

Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:

How to Purchase This Item:

View full details

Automatic Coil Inserter & Crimper

The James Burn CB30QS is an automatic spiral binding and plastic coil finishing machine known for its reliability and low cost of ownership. With an operator placing the books vertically, this machine can effortlessly bind even tabbed and extended cover books, thanks to its advanced technology that inserts, cuts, and crimps the coil simultaneously. Ideal for trade binderies, high volume print shops, and print on-demand markets, it features simple controls for easy setup and size changeovers while requiring minimal maintenance.

Discover unparalleled quality with the James Burn CB30QS automatic coil inserter and crimper, available for purchase online. With a remarkable finishing speed of up to 600 books per hour*, this machine is perfect for bookbinders of all levels. Train new employees effortlessly as the CB30QS is user-friendly and requires no tools or mechanical expertise. Its quick setup is denoted by the "QS" in its model name. Enjoy a smooth and quiet operation while using one of the most popular binding methods in the industry. Don't miss out on the simplicity, flexibility, and efficiency of the CB30QS - the top choice for bookbinding professionals worldwide.

The CB30QS from James Burn is a globally renowned binding equipment known for its top-quality materials and precision engineering. This ensures a durable product that produces perfectly finished documents. With low maintenance and high reliability, even in high volume and on-demand printing and binding settings, it offers a cost-effective ownership experience.

Features & Benefits

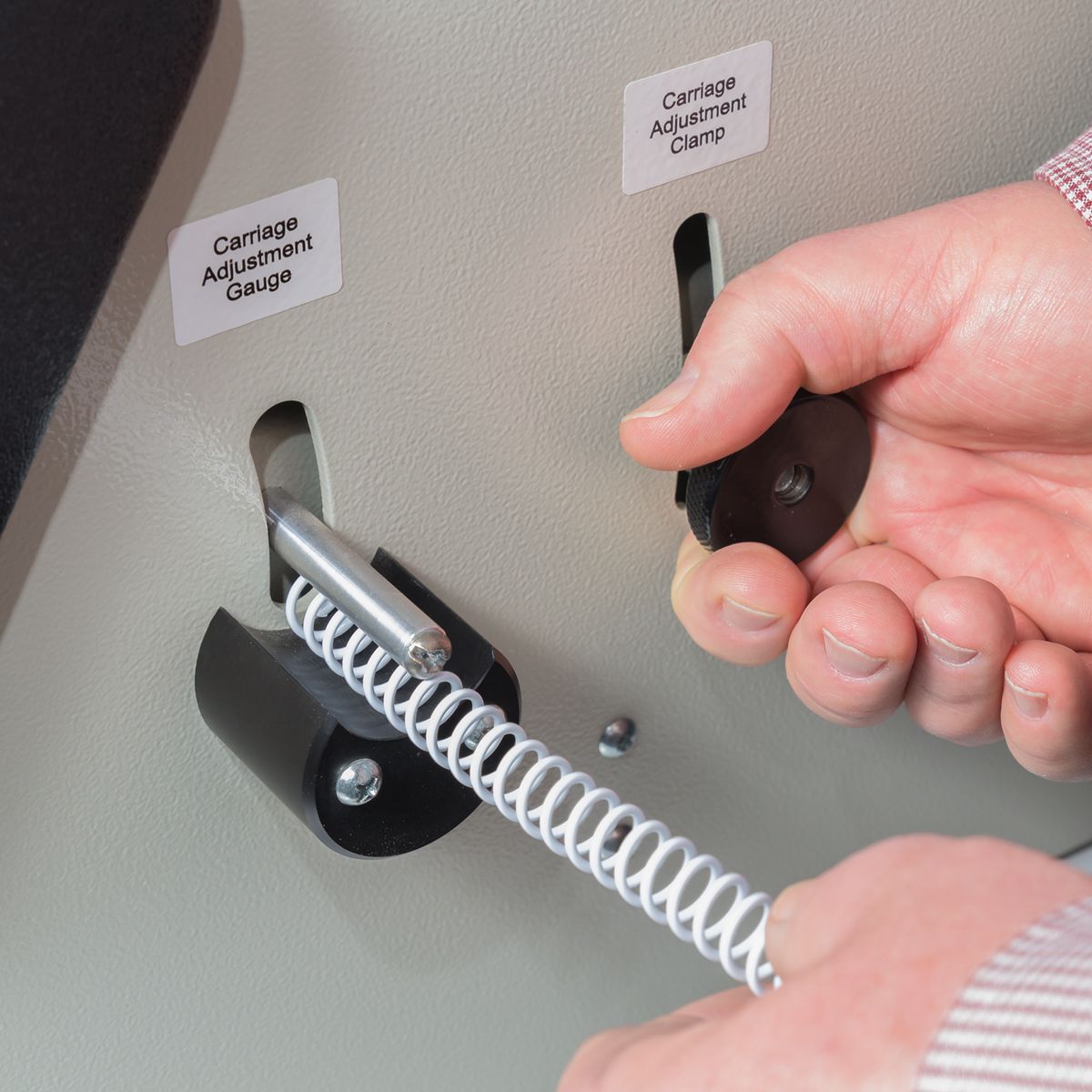

  • Quick & Easy Setup - Setup of the CB30QS is quick and simple, requiring no special tools. The QS in the model number actually stands for "quick setup".

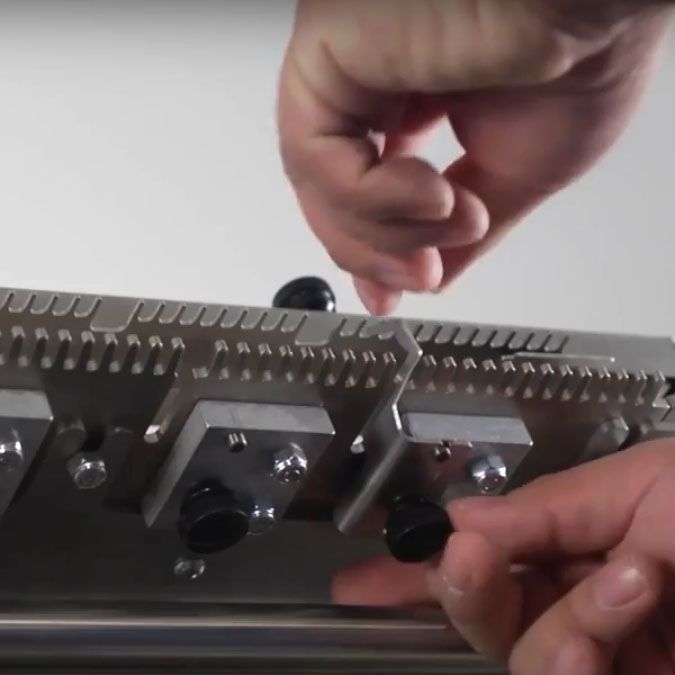

  • Fast Size Changes - Sizes can be changed over in just a few seconds, so setup between jobs is practically eliminated.
  • Speedy Finishing - Production speeds up to 600 books per hour*. Simultaneous 2-side crimping.
  • Clean Finishing - Perfect cutting and crimping of coils for a clean finished document.

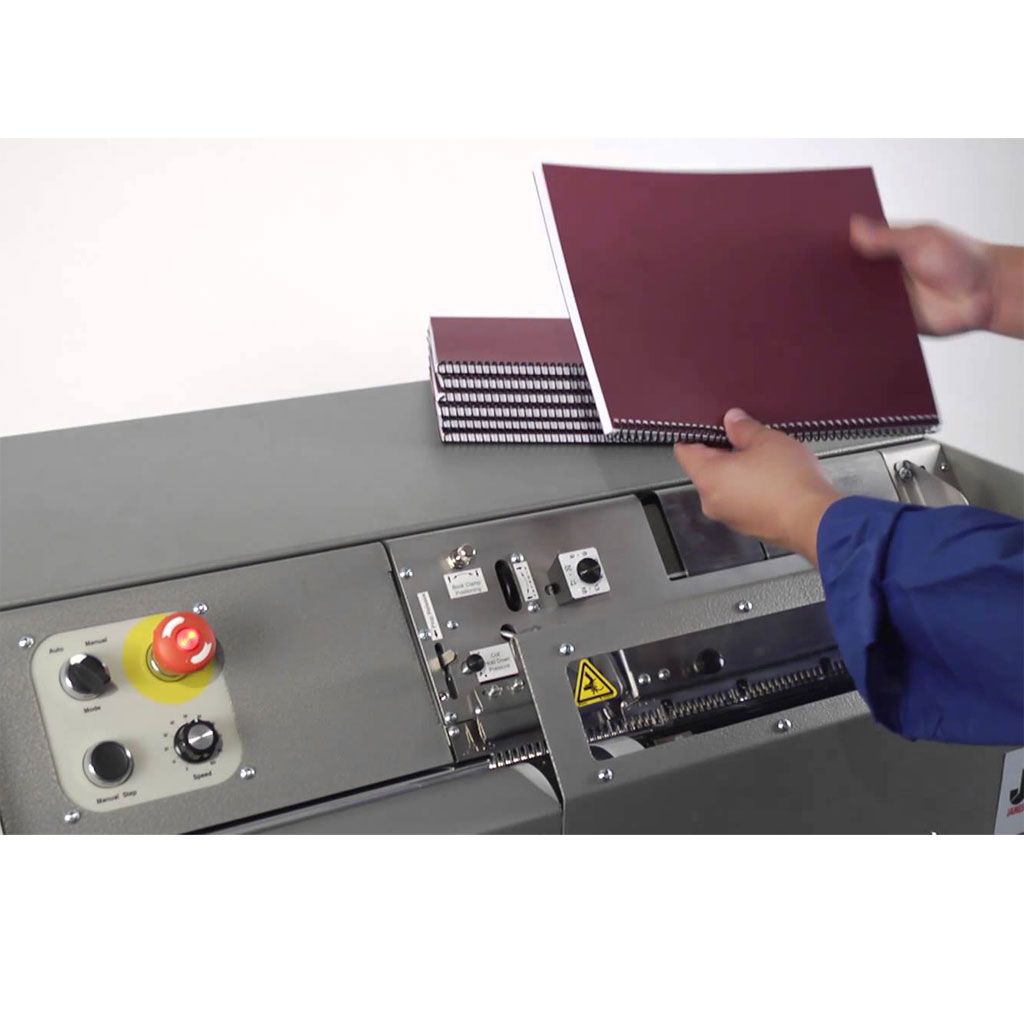

  • Hands-Free Activation - Foot pedal leaves both hands free to handle documents.
  • Small Footprint - Takes up very little space on your operating floor.

Get the Full Package

12" CB30QS System 17" CB30QS System
04JBCB30QS CB30QS 12" Coil Insert/ Cutter w/ 8 to 20mm Crimper Head 04JBCB30QS17 CB30QS 17" Coil Insert/ Cutter w/ 8 to 20mm Crimper Head
04JBCB30QSKIT Optional 6mm & 7mm Crimping Head Kit 04JBCB30QS17K Optional 6mm & 7mm Crimping Head Kit for 17" CB30QS
04JBCB30LDK12 3:1 Pitch Large Diameter Kit for 12" CB30-QS Inserter 04JBCB30LDK17 3:1 Pitch Large Diameter Kit for 17" CB30-QS Inserter
04JBCB30LDK12251 2.5:1 Pitch Large Diameter Kit for 12" CB30-QS Inserter 04JBCB30LDK17251 2.5:1 Pitch Large Diameter Kit for 17" CB30-QS Inserter
    04JBCB30QS1741PC 4:1 (.250) Pitch Change Platen & Comb Kit for CB30QS-17"

*May vary depending on sheet size, paper stock, operator, and other factors.

Specifications

Item # 04JBCB30QS-GRP
Manufacturer James Burn
Manufacturer Part Number CB30QS
Suggested User Industrial
Binding Style Spiral Binding / Plastic Coil
Operation: Binding Electric
Included Supplies & Accessories 3:1 Pitch Crimping Head Set
15 Sets of Spine Formers
Photo Instruction Manual
Instructional Video
Power Voltage 110v Single Phase 60 Hz
Compatible Supplies Plastic Spiral Binding Coils
Dimensions 36" W x 24" D x 42" H (Both Models)
Manufacturer's Warranty 90 Day Limited Manufacturer's Warranty
Punch & Bind Capability Binding Only
Setup Time 5-15 Minutes, Depending on Operator
Paper Size 5" to 12" Binding Edge, or 5" to 17" Binding Edge (Depending on Model)
Accepted Paper Type No Stock Limitations
Compatible Binding Supply Sizes 8 to 20 mm Plastic Coils (up to 30mm with large coil kit)
Maximum Book Thickness Up to 5/8" Thick
Selectable Speeds Dependent on Operator
Speed* Up to 600 Books per Hour
Air Compressor Requirements 2 CFM at 80 PSI
Control Panel No Control Panel
Hands-Free Operation No
Special Training Required No Special Training Required
Product Weight (lbs) 190
Shipping Weight (lbs) 230
