SmartStacker Digital B2 Finishing
The Horizon SmartStacker is a B2 sheet processing system that automates cutting, trimming, stacking, and collating for digital press output—inline or near-line.
Request a Quote
Tell us what you need—we’ll follow up quickly with pricing and options.
Details & specifications
Sheet Processing System

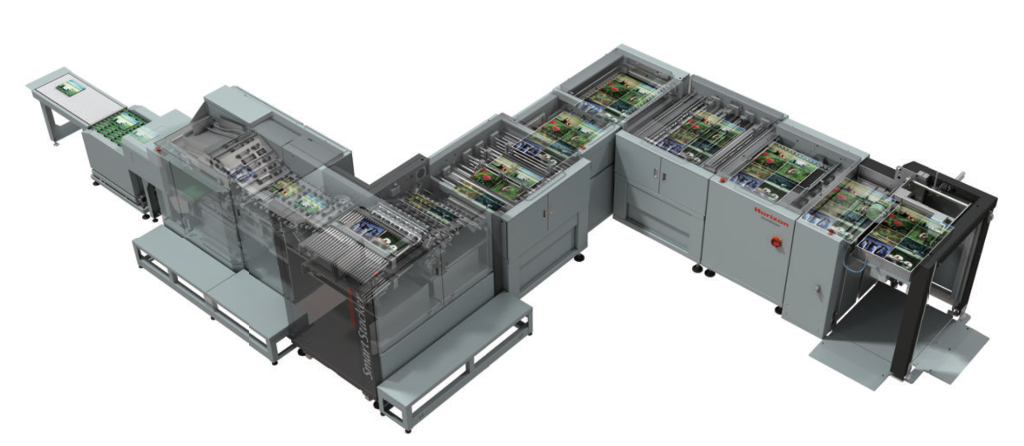

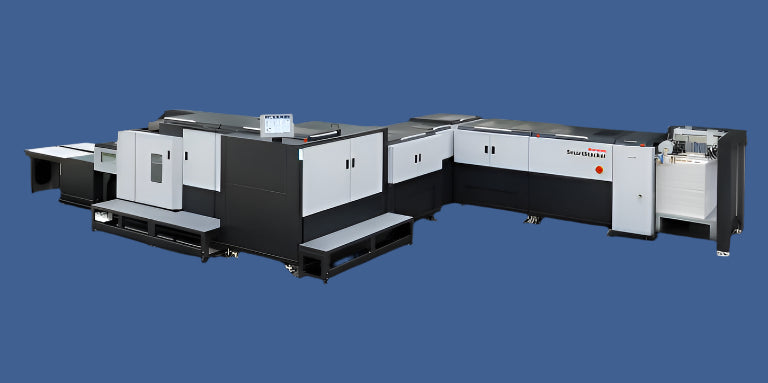

The Horizon SmartStacker is a fully automated sheet processing and stacking system designed for seamless integration with B2 digital presses like the HP Indigo 10000. It cuts, trims, scores, collates, and stacks printed sheets with imposition-aware automation, turning large format sheets into finished products such as postcards, books, folded pieces, and more—with zero manual touchpoints.
See a case study on this system here.
Key Features
🔷 Supports inline or near-line operation with B2 presses including HP Indigo 10000
🔷 Cuts, trims, collates, stacks, and scores in one pass
🔷 Supports up to 28 imposed pages (7 columns × 4 rows) per sheet

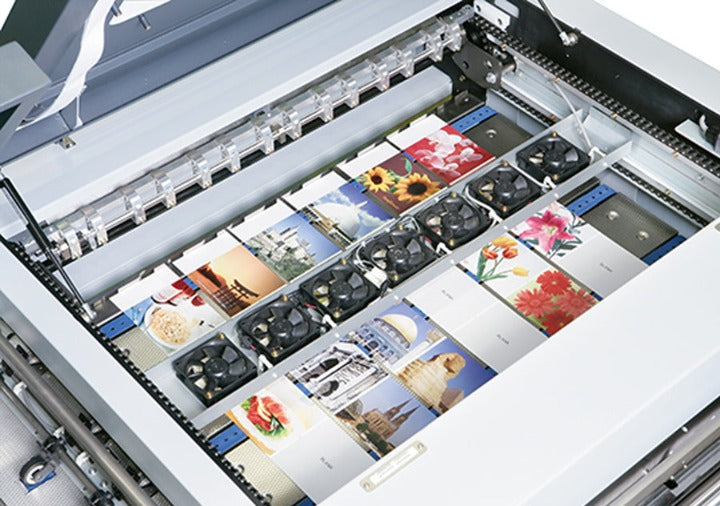

🔷 Gutter cut and edge trimming with waste removal
🔷 Optional scoring (2-up) and blank page removal
🔷 12” touchscreen interface with live job control
🔷 Merge conveyor and stacker for straight, offset, or book block delivery
🔷 Multiple job separation and B2 stacker option available
🔷 Operates via Finishing Line Controller using JDF workflow
Specifications
| Specification | Details |
|---|---|
| Max Sheet Size (Before Cut) | 762 x 530 mm (30.0” x 20.86”) |
| Min Sheet Size (Before Cut) | 279.4 x 330 mm (11” x 12.99”) |
| Max Finished Size (After Cut) | 381 x 530 mm (15” x 20.86”) |
| Min Finished Size (After Cut) | 100 x 105 mm (3.94” x 4.13”) |
| Sheet Weight Range | 81.4–370 gsm (normal), 90–360 gsm (coated) |
| Cut Configuration | Up to 7 columns (14 cuts), 4 rows (8 cuts) |
| Gutter Trim | 0 mm (slit) or 6–15 mm (0.24"–0.59") |
| Edge Trim | 0 mm (slit) or 5–60 mm (0.20"–2.36") |
| Max Speed | Up to 4,600 sheets/hour |
| Scoring | One positive score line (2-up) |
| Stack Output Options | Straight, offset, or book block |
| Stack Height (Merge Stacker) | Up to 254 mm (10") |
| Stack Height (B2 Stacker Option) | Up to 850 mm (33.46") |
| Electrical | 200–220V / 380–415V, 3-phase, 50/60 Hz |
| Power Consumption | 5.6–6.0 kW (SmartStacker), 3.1–4.3 kW (Feeder) |
| User Interface | 12" touchscreen + emergency stops at each module |
Applications
📄 High-speed conversion of B2 press sheets into finished products
📦 Commercial printing workflows involving postcards, book blocks, folded inserts, and direct mail
🖨 Finishing hub for large-volume jobs from HP Indigo and other B2 presses
Benefits
✅ Eliminates manual cutting, stacking, and separating steps
✅ Maximizes efficiency with in-line or near-line configuration
✅ Enables JDF-driven smart finishing with job recall
✅ Automates sheet rejection, blank page handling, and job sorting
✅ Future-ready with integration to folding, binding, or saddle-stitch line
