Made in South Korea New

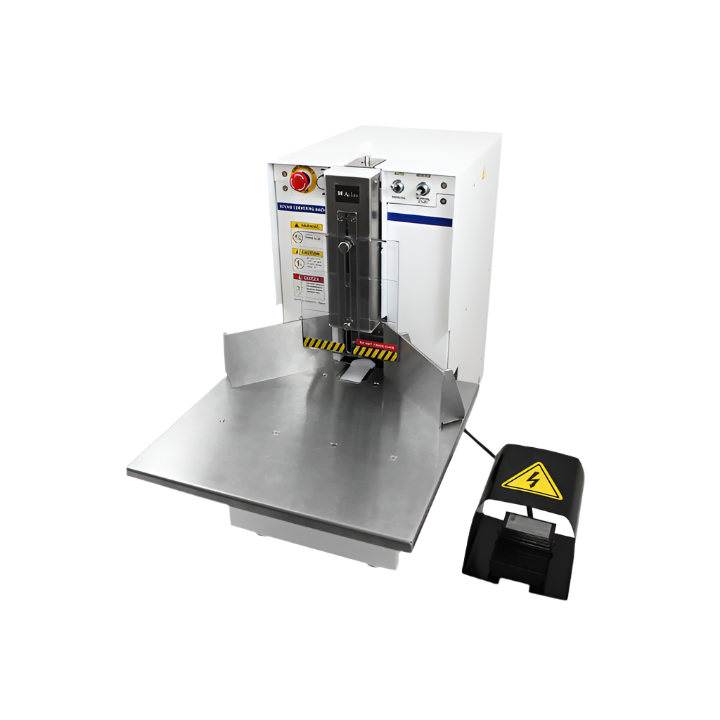

Akiles Diamond-7 heavy-duty electric corner rounder with foot pedal, stainless steel work surface, and safety guard.
Akiles

Akiles Diamond-7 Heavy-Duty Corner Rounder

Akiles Diamond 7 Corner Rounder can handle a 7cm stack of printed materials. Just load them in and hit the foot pedal to cycle the blade.

$6,899.00 USD
Tax-exempt? Apply once, check out tax-free
Truck-freight shippingShips FOB with a lift gate.
Talk to a finishing expertReal specialists by phone.
Financing availableLease & purchase options.
Factory-trained install & serviceWe deliver, install & support.

Details & specifications

The Diamon 7 corner rounding machines are top-of-the-line, industrial-grade, electric corner rounding solutions ideally suited for high-volume tasks.

  • Cutting Capacity: Precisely rounds up to 2.35" or 600 sheets of standard 20 lb paper.
  • Die Variety: Comes with 7 interchangeable dies including 1/8", 1/4", 3/8", 1/2", 5/8", Straight, and Slot Die.
  • Safety: Features a protective cover to ensure users' hands and fingers remain safe from the cutting area.
  • Die Design: Boasts a patented upper die design paired with a micro-adjustable lower die for smooth and accurate cuts.
  • Operational Modes: Can easily switch between automatic foot pedal or manual hand function.
  • Storage: Integrated tool and scrap box for organized storage and easy access.
  • Other Features: Large work table, heavy-duty foot pedal, and two versions available, Diamond-7 (up to 700 sheets) and Diamond-6 (up to 600 sheets).

Diamond 6 & 7 Specifications:

Feature Diamond 6 Diamond 7
Max. Capacity 2-3/8" (60mm) or 600 Sheets (20lb) 2-3/4" (70mm) or 700 Sheets (20lb)
Included Die 1/4" 1/4"
Available Dies 1/8", 1/4", 3/8", Straight, & Half-Moon (1/2" & 5/8" are Special Order)
Detachable Press Bar No Yes
Protective Safety Cover Included
Work Table Included
Storage & Trash Bin Included
Motor Power 100 W 200 W
Dimensions 24-5/8" W x 12-5/8" L x 17-1/2" H
Weight 104 lbs 110 lbs
Warranty 1 Year

Download brochure (PDF)

Every machine, fully supported

We deliver it, install it, train your team and keep it running.

This is not a drop-ship. Our factory-trained technicians install on site, train your operators, and back it with same-day and next-day service across Michigan and the Great Lakes.

Install & train

On-site setup and operator training included.

Same / next-day service

Fast response across the Great Lakes.

Precision machining

Replacement parts fabricated in-house.

Financing

Lease and purchase options available.

You might also need

Pair your equipment with the supplies and finishing gear that complete the workflow.

Akiles Diamond 1 Manual Corner Rounding Machine
Akiles

Akiles Diamond 1 Manual Corner Rounding Machine

$179.00
Akiles Diamond-5
Akiles

Akiles Diamond-5

$3,799.00

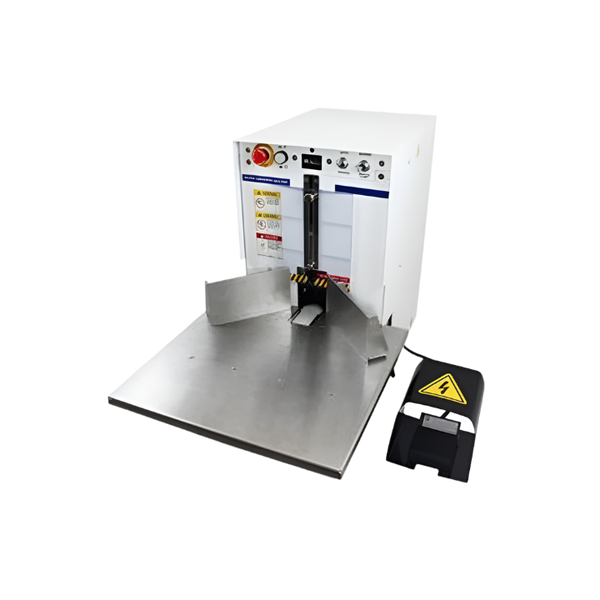

Akiles Diamond-6 Heavy-Duty Corner Rounder
