Martin Yale Industries

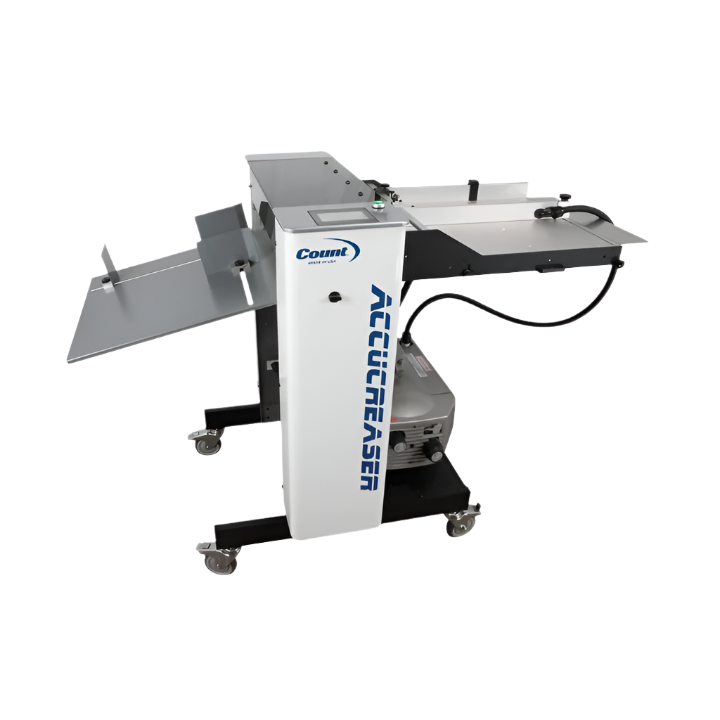

Count AccuCreaser Air

Count AccuCreaser Air

Download Brochure

Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:

How to Purchase This Item:

View full details

High-Performance Creasing and Perforating Machine:

Experience the ultimate precision and efficiency with Count AccuCreaser Air. This top-of-the-line machine offers fast and consistent creasing and perforating, even at higher volumes. Benefit from CAM-actuated compression creasing, rotary perf/score capabilities, and automated distance recognition for smooth, accurate folds. The two-sided die creasing rod allows for wider creases, perfect for heavier stock. With a bottom vacuum paper feed, built-in register guide, and sheet spacing control, the AccuCreaser ensures maximum accuracy for all your creasing needs.

Features:

  • Bottom vacuum feed with sheet spacing control.
  • Includes a sheet counter (for both batch and total sheet count).
  • User-friendly touch screen for easy set up and control of the machine.
  • Two-sided die creasing rod accommodates for heavier stock–simply remove and flip over to change from narrow to wide crease.
  • CAM actuated compression creasing ensures maximum crease accuracy.
  • Automated distance recognition allows auto setups for your most common creases and corresponding folds, including perfect bind.
  • Provides modes for creasing, perforating or feeding.
  • Rotary perf/score capabilities, including micro-perf.
  • Perform up to 4 perfs at a time.

Specifications:

Rating Better
Creasing Speed 5,500 sheets / hour
Perf/Scoring Speed 12,000 sheets / hour
Feed Type Vacuum Bottom
Volume Low - High
Paper Weight 60 - 350 gsm
Max Sheet Size 18" x 24"
Min Sheet Size 6" x 4.5"
Paper Feed Vacuum Bottom
Power Supply 110/220 W 50/60 Hz
Dimensions 56" x 30" x 44"
Machine Weight 350 lbs
Shipping Weight 471 lbs
