Graphic Whizard PT335A Plus Multi
Graphic Whizard PT335A Plus Multi
Item Number:
PT335A-PLUS
Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:
How to Purchase This Item:
How to Purchase This Item:
- Web: Sales Contact Form
- Call: 1-800-343-4231
- Email: sales@midstatelitho.com
- Text: (810) 238-7370
PT335A Plus Multi Product Details:

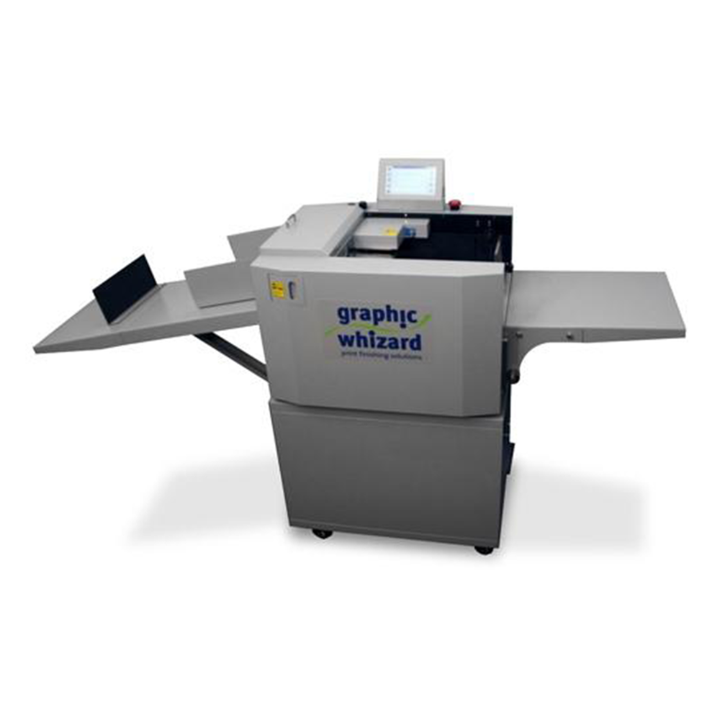

The Graphic Whizard PT335A Plus Multi offers the same features and versatility as the PT 335B Multi, and offers even more. It now includes strike perforation capabilities, allowing for partial perforations in both directions in a single pass. Its 6" color touchscreen and job creator software make for quick and easy job changeovers, reducing the need for manual intervention and maximizing efficiency. With a speed of up to 8,040 sheets per hour, a 64 job memory, and a reliable 4" pile feeder, the PT 335A Plus Multi is able to handle a variety of jobs with ease.
- 4" Deep Pile Feeder
- Multi Accessory Output
- 6" COlor Touchscreen
- Interchangeable Crease/Perf Dies
- Built in job creator and 64 job program memory
- Strike perf capabilities for "box" or "t" perfs
- Partial perfs in both directions in one pass
Technical Specifications:
| Electrical | 110-130V, 50/60 Hz, 15A |
| Minimum Paper Size | 5.5 ”x 8.26” |
| Maximum Paper Size | 13” x 35.4” |
| Paper Type | Non Coated, Coated, Laminated |
| Feeding | 4" vacuum pile feeder |
| Job Programming | Automated setup with sheet length measurement |
| Linear Multi Tool Options | 12 or 24 Tpi perf tools, *strike perf option, up to 4 linear strike perfs, Linear score, slit, and kiss cut tools |
| Interchangeable Crease/Perf Dies | Crease die options- .6mm, 1mm, 1.2mm, 1.4mm. Perf Die Options- 12 Tpi or 24 Tpi Adjustable crease/ perf depth control |
| Dcoument Weight | 150-400 gsm |
| Crease/Perf | Up to 32 creases/perfs per sheet |
| Speed | 8,040 sheets per hour (8.5”x1 1”, 1 crease) |
| Options | Linear multi tools , cross perforator, additional crease widths, extension table, narrow feeder (min- 1.77” x 5.31”) |
