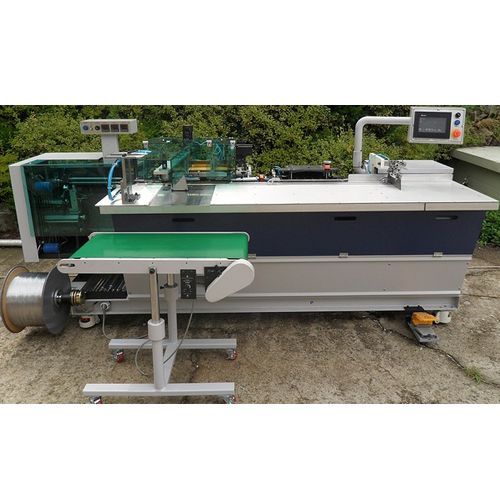

JBI CB40B

Automatic Plastic Coil Binding Machine

The CB40B Coil Binding System is a revolution in production plastic coil binding. It will produce coil from filament and automatically bind, cut and crimp your documents. Offering production speeds of up to 1,000 documents per hour. The CB40B is an affordable investment that will bind a wide variety of applications including calendars, note pads, books, diaries and more in one pass for a truly automated in-line plastic coil forming and binding solution.

The CB40B Coil Binding System is a game changer for plastic coil binding production. Turn your plastic coil binding operation from a bottleneck to a streamline, efficient operation that increases your revenue stream.

The system has 3 operational steps that run simultaneously:

1. The operator loads the pre-punched books into the CB-40B, the book is automatically transported to the alignment station, where the punch holes are perfectly positioned to accept coil
2. The document is transported to the binding station where coil is formed, inserted into the document and the ends are cut and crimped.
3. A transport arm moves the book out of the binding station onto a conveyor packaging station. The transport arm rotates 180° every other document providing for evenly stacked books.

Features:

• Reliable and efficient operation
• Modern design using the latest engineering
• User friendly operation with touch screen controls
• Produces constant, high-quality products

Mandrel size Formula:

• Document Thickness ÷ 75 X 100 = Mandrel size to use. (IE: 12mm document ÷ 75 X 100 = 16 mm mandrel)

Note: When determining what pitch, you want your machine to be made in we need to look at the size of the binding edge of work you need to run:

• If the binding edge is in 11", 10 3/4", 10 1/2", in 1/4" increments then .2475" pitch will work well in your books.
• If the binding edge is not in 1/4" increments like 10 7/8" or 11 1/8" then 4:1 (.250") pitch will work best for your books.

Specifications
