MBM 208J
Friction Feed Manual Folder: High-speed with 14,400 sheets/hr, 4-digit counter, and 3-roller feed system. Ideal for versatile, efficient paper folding.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Details & specifications

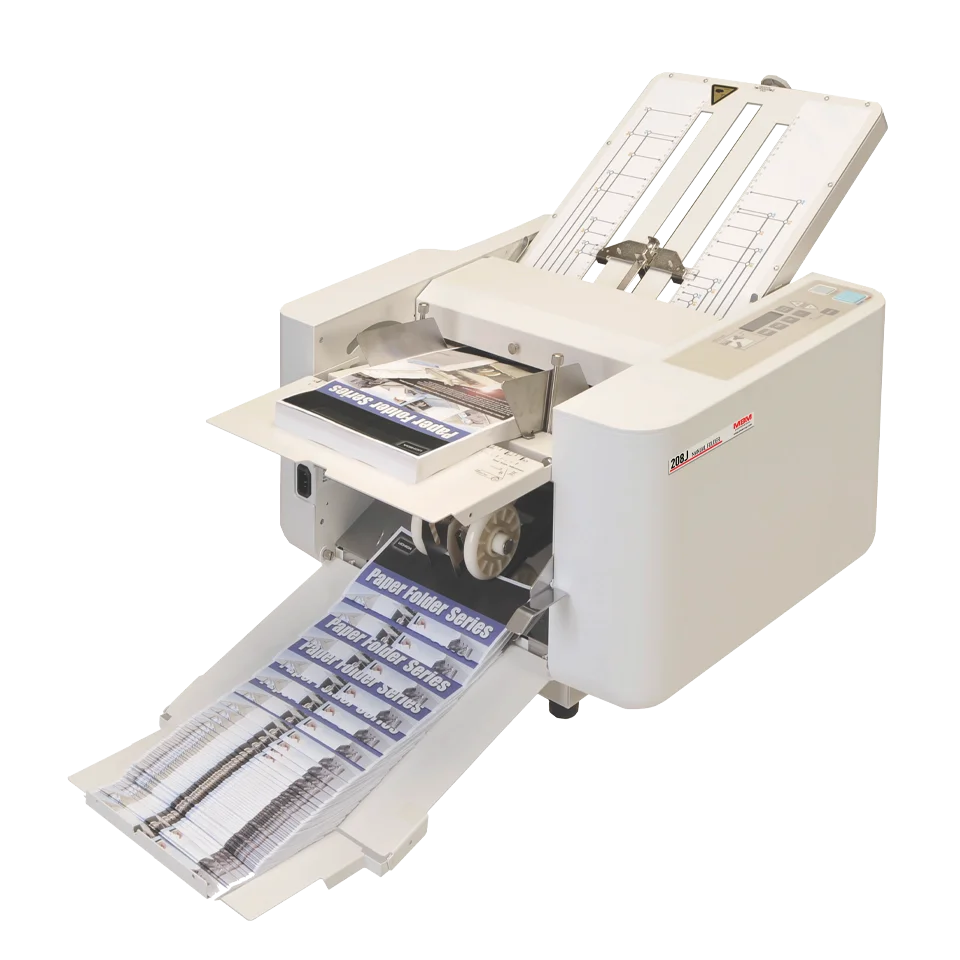

Friction Feed Manual Folder with LED 4-Digit Counter
This friction feed manual folder is built for straightforward setup and reliable folding on a wide range of paper sizes and stocks. A 3-roller friction feed system, micro-adjustment controls, and a touch control panel with an LED 4-digit counter support clean, repeatable results for standard and custom fold work. Features like the test fold button, extended exit tray, and automatic conveyor help maintain consistent output and neat stacking during production runs.
Key Features
- 3-roller friction feed system supports consistent single-sheet feeding across varying paper weights

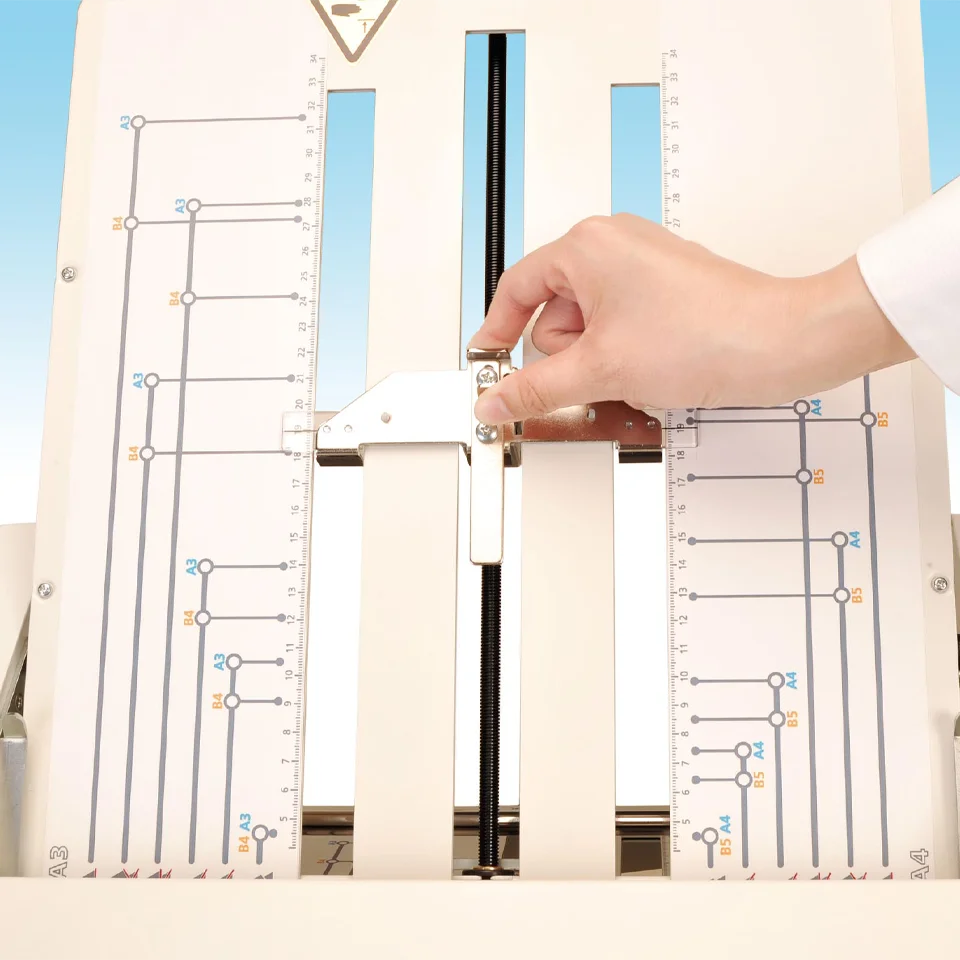

- Easy setup for standard folds and custom folds with skew and micro-adjustment dials
- Touch control panel includes a 4-digit counter with addition and subtraction functions
- Test button folds two sheets for inspection before running production quantities
- Automatic conveyor helps ensure smooth ejection for cleaner stacking and handling

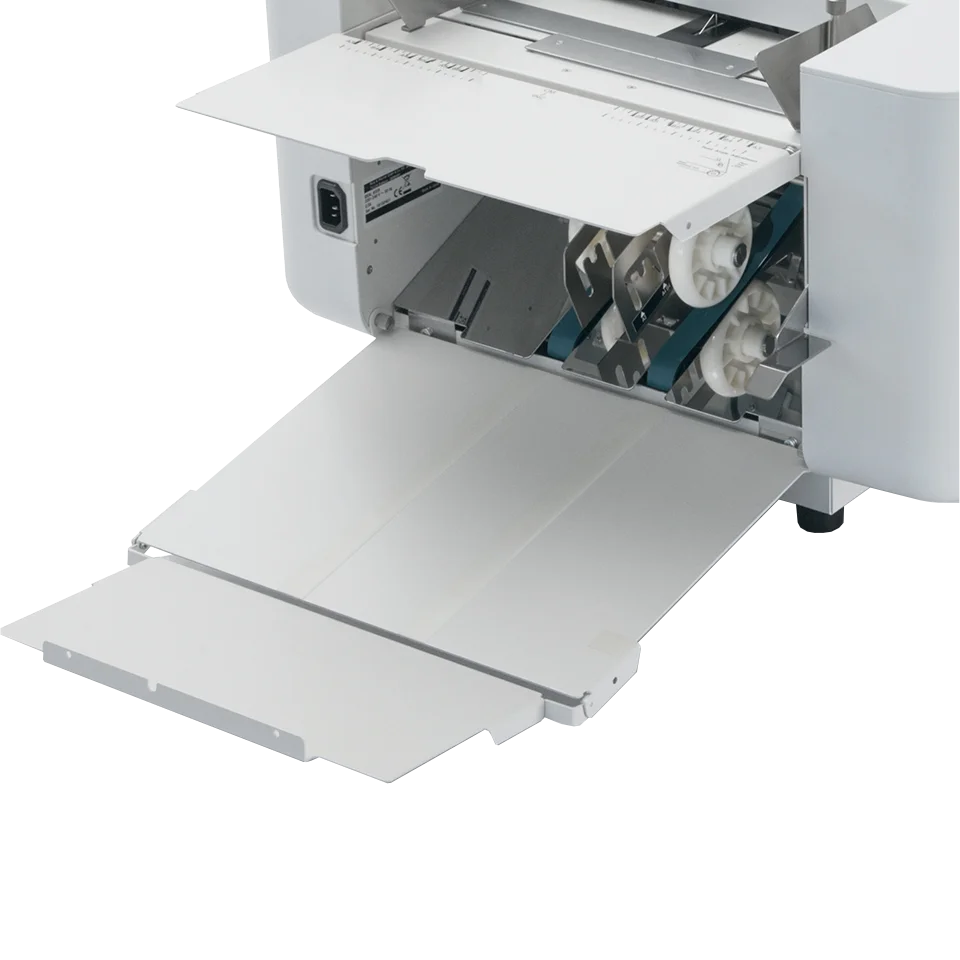

- Extended exit tray supports neat, organized output
- Auxiliary paper guide supports cross folding

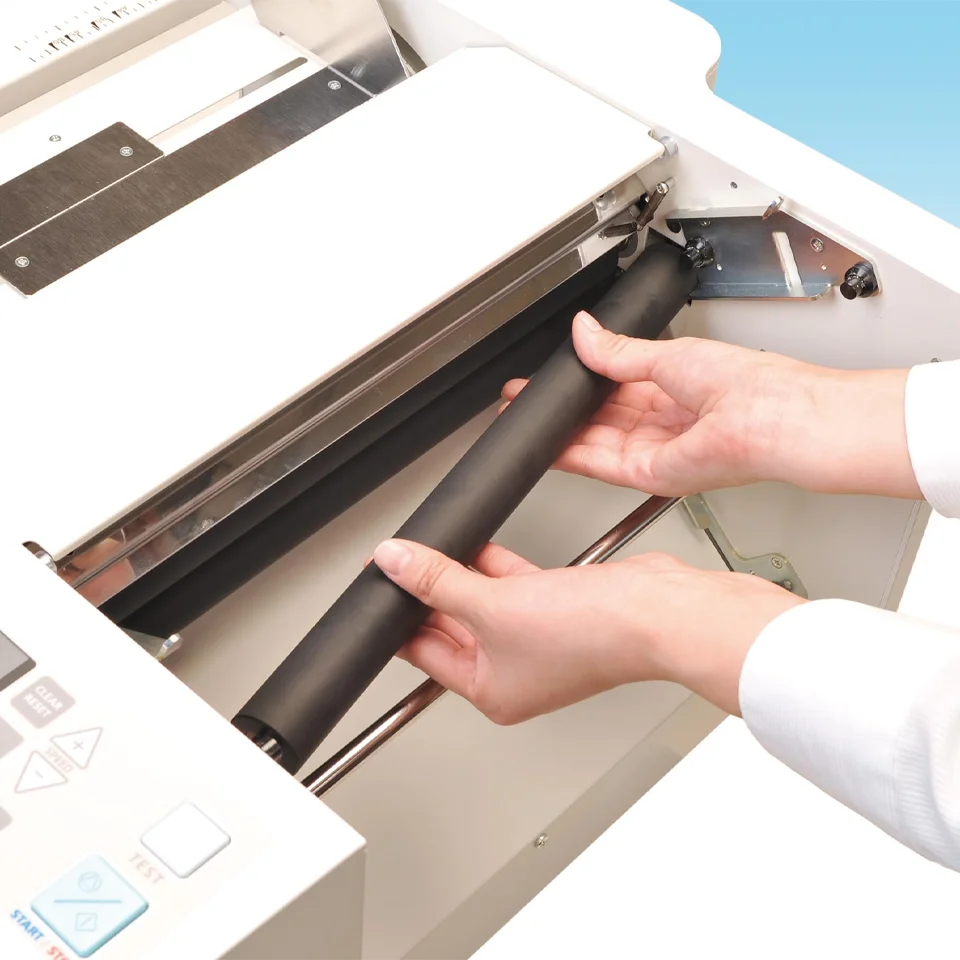

- Quick-release roller system simplifies routine maintenance and cleaning
- Load and unload paper from the same side for efficient operator workflow
- Display alert and audible signal in case of incorrect operation
Why It Matters
A dependable friction feed folder reduces setup time, improves fold consistency, and keeps output organized for downstream steps like inserting, trimming, or packing. The counter and test-fold function support controlled runs and quick verification, while adjustment features help maintain clean results across different stocks and fold requirements.
Specifications
| Specification | Detail |
|---|---|
| Sheet Capacity | Up to 500 sheets* |
| Paper Size Range | 3 1/2" × 5" to 11" × 17" |
| Paper Weight Range | 12 to 80 lbs.* |
| Max Speed | Up to 14,400 sheets/hour* |
| Electrical Requirements | 115V, 60 Hz |
| Dimensions (D × W × H) | 21 1/2" × 40 5/8" × 19 3/4" |
