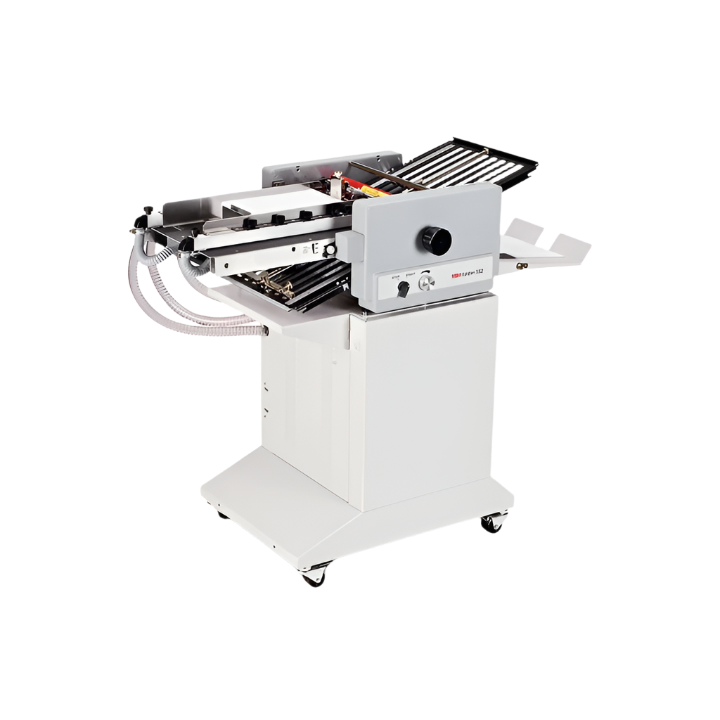

MBM 352S Folder

High Speed Air Feed Folder

The MBM 352S Folder is a fast, air feed folder specifically designed for high-volume digital production. The air suction feed system is compatible with coated stocks, and this machine can be easily adjusted for both standard and custom folds. Additionally, the use of polyurethane foam rollers eliminates the need for fold roller pressure settings. The enclosed turbine blower ensures quiet operation, while the inclusion of casters, 2-fold plates, non-flexing side frames, and needle bearings allows for efficient and high-speed production.

Specification Sheet

Operator Manual

Features

• Sheet Capacity: 450*
• Paper Size: 3 3/8" x 4 3/4" to 12 5/8" x 17 3/4"
• Paper Weight: 13 to 110 lbs.*

Product Details

• Electrical Requirements: 115 V. 60 Hz., 20-amp dedicated line
• Dimensions (D x W x H): 22 1/4" x 51 1/4" x 43 1/2"

Characteristics

• High speed, air feed folder ideally suited for high-volume digital production

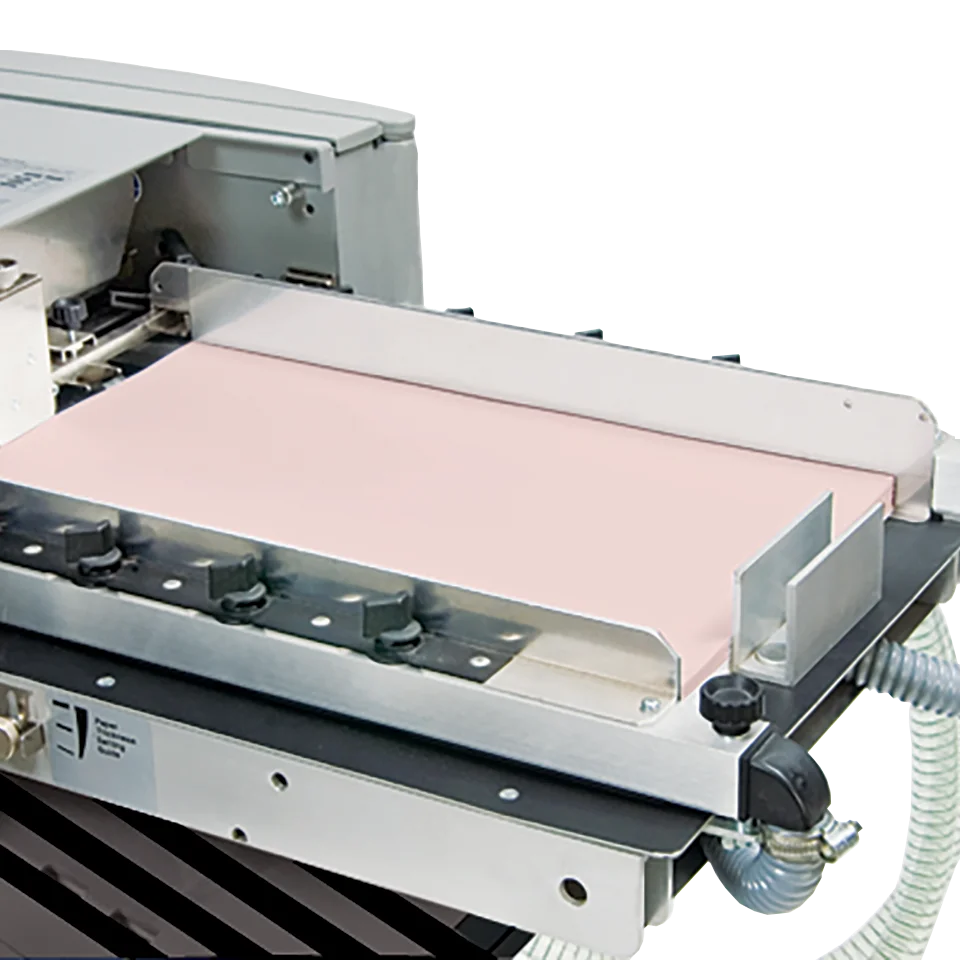

• Air suction feed system, suitable for coated stocks
• Adjusts in seconds for standard and custom folds
• Variable speed control
• Powered exit conveyor
• Bottom-feed, top-loading design for continuous reloading and dependable sheet separation
• Polyurethane foam rollers eliminate the need for fold roller pressure settings

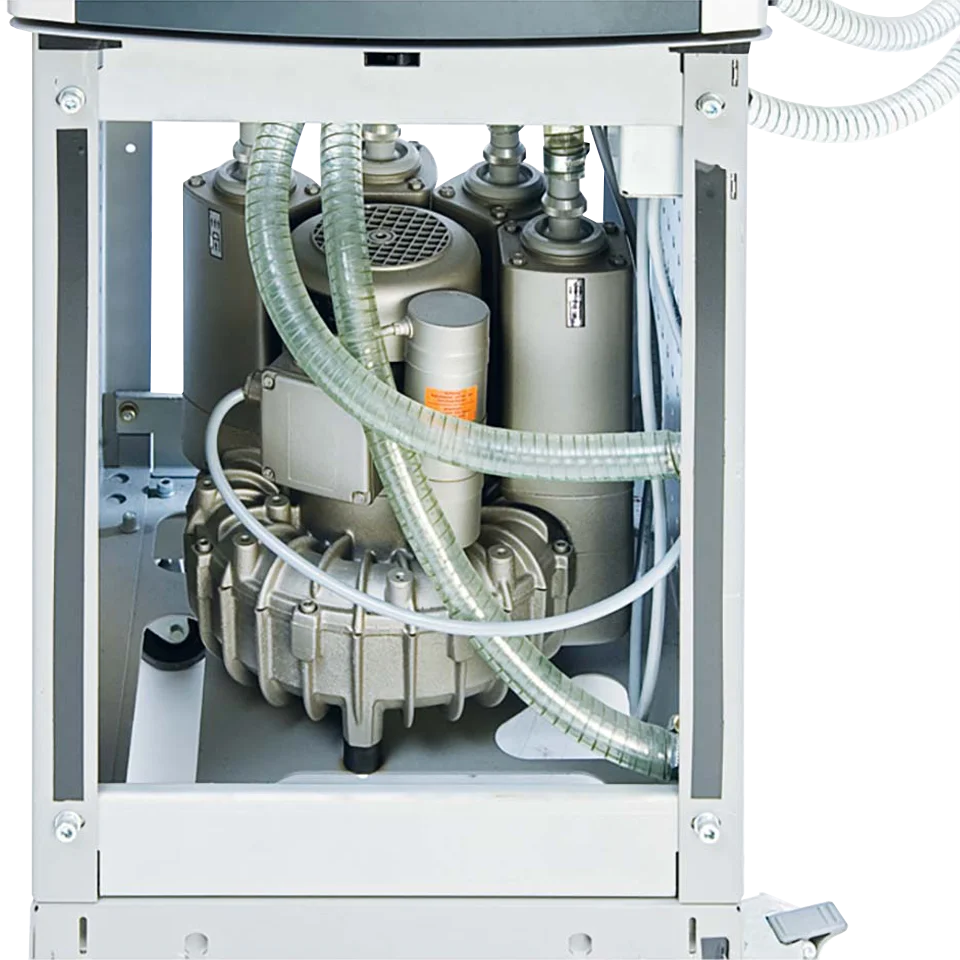

• Turbine blower fully enclosed for quiet operation
• Two fold plates
• Heavy-duty, non-flexing side frames
• Needle bearings for high-speed production
• Mounted on casters
• Optional extended delivery system, cross fold for right-angle folding, and slitting, scoring, and perforating attachments available
• UL and C UL approved

*May vary due to variations in paper and power supply
