MBM AeroDieCut
The MBM AeroDieCut Platen Die Cutter is a cost-effective state-of-the-art platen die cutter tailored for professionals in the graphic arts & printing industry.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Details & specifications

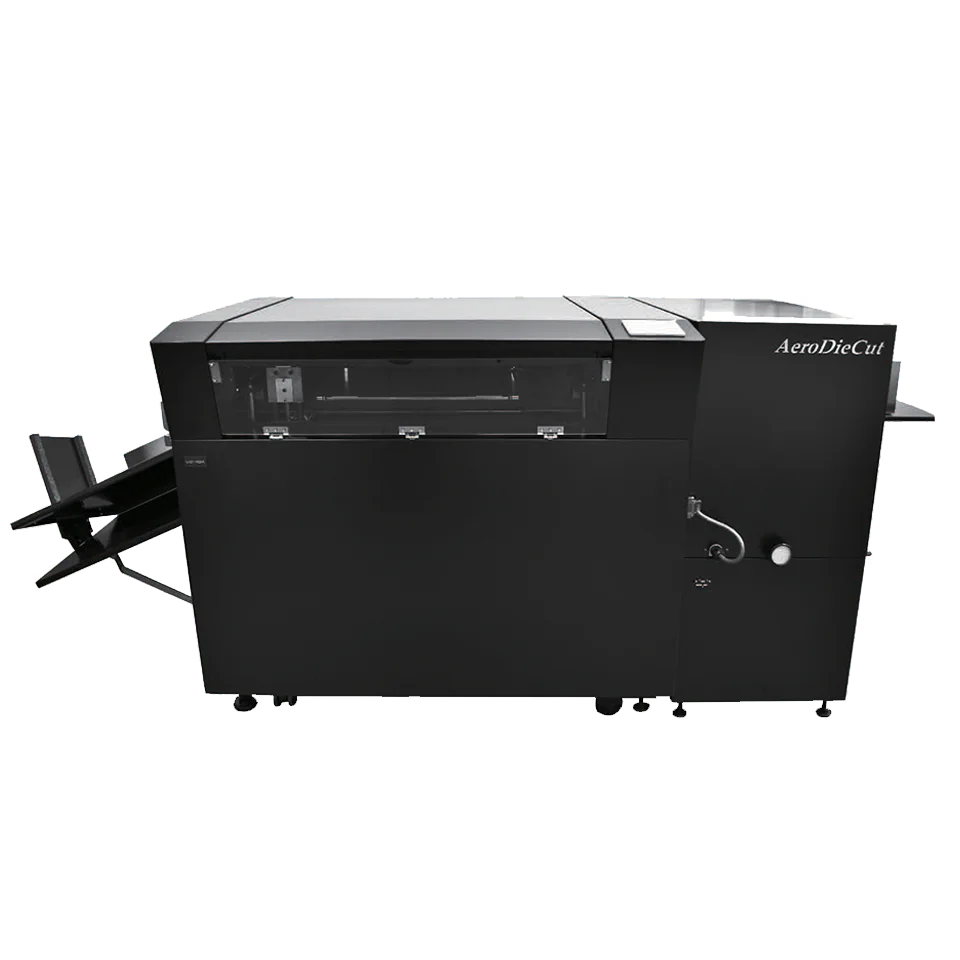

AeroDieCut Automatic Platen Die Cutter
The AeroDieCut is a compact, automated platen die cutter designed for fast, precise finishing of printed cards, packaging, labels, and tags. Built for digital and offset print environments, it supports multi-up layouts and high-throughput production while maintaining accurate registration through Tri-Suction feeding, cut mark detection, and touchscreen job recall. Easier to operate than traditional clamshell systems and well suited for repeated shapes, the AeroDieCut streamlines high-end die cutting with a small-footprint workflow.
Key Features

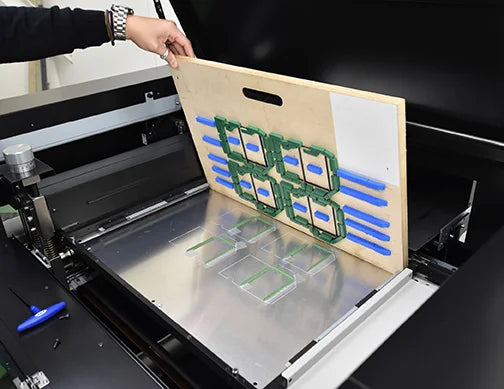

- Platen die cutting system produces crisp cuts, creases, and perforations in one pass

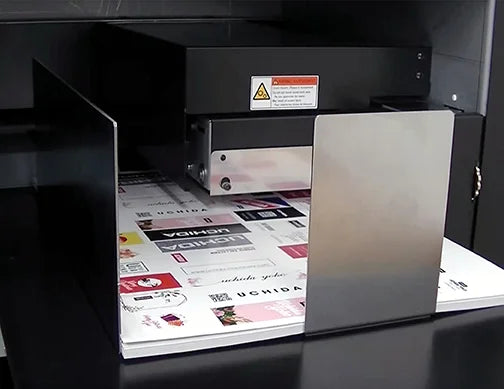

- Tri-Suction feeder with ultrasonic sensors helps prevent double-feeds and supports image shift compensation
- Multi-up step-and-repeat mode maximizes sheet efficiency and die utilization

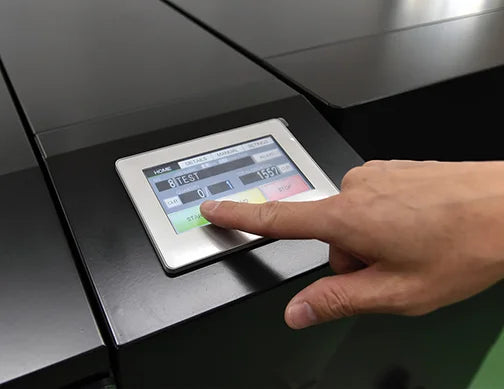

- 4.3" color touchscreen stores up to 100 jobs for quick setup and recall

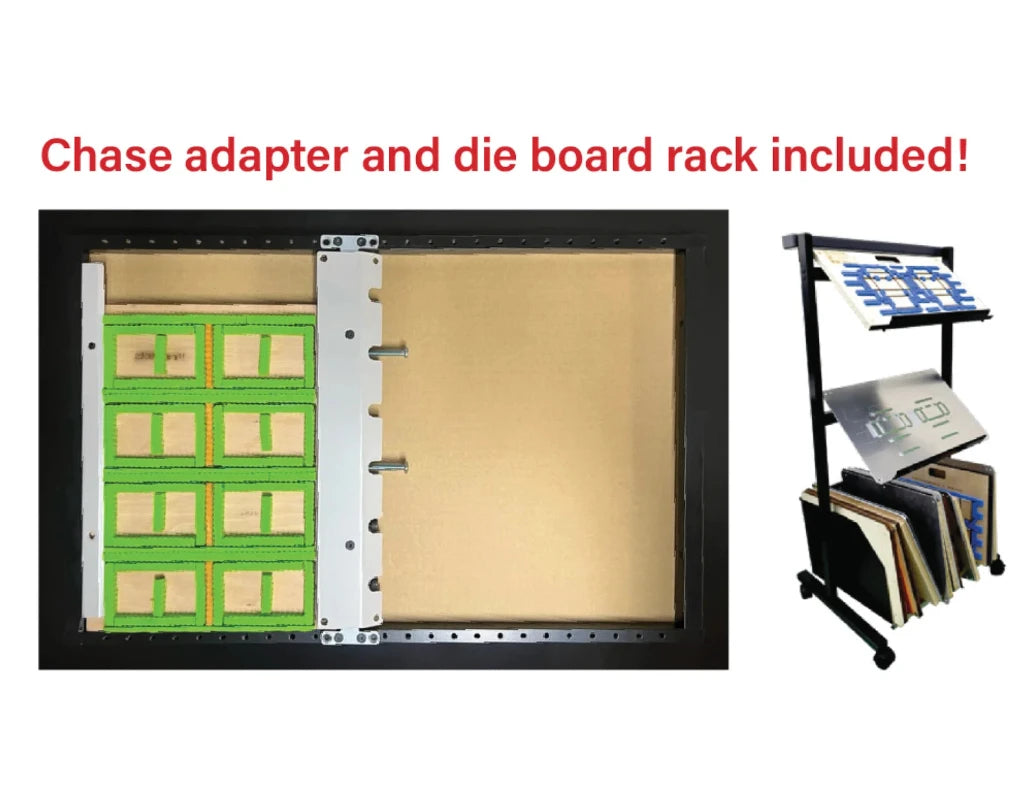

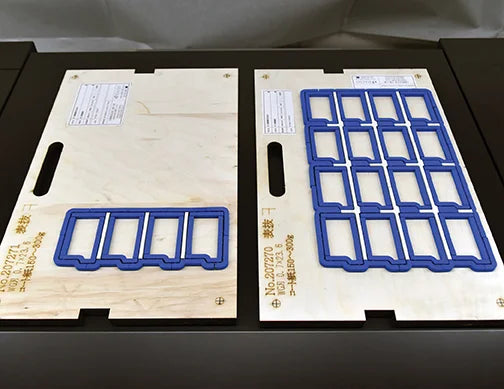

- Die storage rack and chase adapter included for organized tooling and faster changeovers
- Compact footprint fits digital print rooms, packaging labs, and in-plant environments
- Operator-focused design emphasizes straightforward setup and safe operation

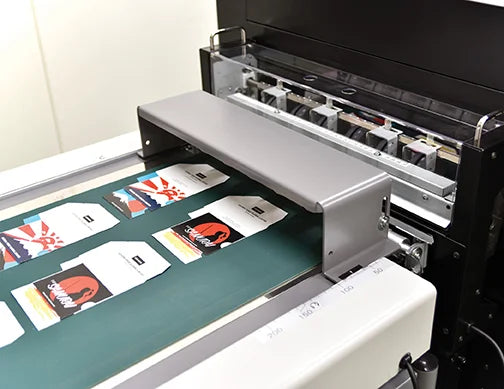

- Optional waste separator and delivery conveyor improve scrap removal and collection speed
Why It Matters
The AeroDieCut is built for repeatable, professional die cutting without the learning curve and setup complexity of traditional clamshell systems. Automated feeding, registration, and job recall support consistent output on multi-up layouts, while step-and-repeat capability helps reduce per-piece cost on recurring packaging, card, and tag programs.
Specifications
| Specification | Detail |
|---|---|
| Max Speed | Up to 1,000 sheets/hour* |
| Max Paper Size | 14.3" × 20.25" |
| Max Finishing Area | 12.2" × 19" |
| Paper Weight Range | 120–400 gsm* |
| Die Board Size | 13.75" × 21.65" |
| Die Board Thickness | 7" |
| Cutting Rule Height | 0.91"–0.93" |
| Power Requirements | 110–120V, 50/60 Hz |
| Dimensions (D × W × H) | 42" × 106" × 43" |
| Weight | 903 lbs |
Applications
Available Options
- Waste separator unit to redirect scrap away from the finished product stream
- Delivery conveyor table to speed up batch stacking and collection
- Custom chase and plate sets for frequent job changes and organized tooling
- Die board storage rack for accessible, structured die management
We deliver it, install it, train your team and keep it running.
This is not a drop-ship. Our factory-trained technicians install on site, train your operators, and back it with same-day and next-day service across Michigan and the Great Lakes.
Install & train
On-site setup and operator training included.
Same / next-day service
Fast response across the Great Lakes.
Precision machining
Replacement parts fabricated in-house.
Financing
Lease and purchase options available.
