System Details

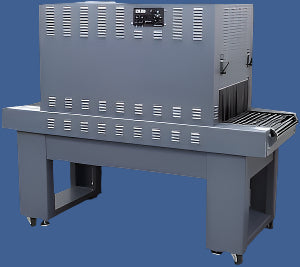

The T4822 is a top selling large capacity heat tunnel that fits many common applications. It has a large capacity with 8-inch tunnel openings that is 48 inches long and 22 inches wide. It has temperature and speed adjustments for optimized production and perfectly tempered product. This tunnel has three heating zones for custom heating profiles.
Features
- Tunnel Chamber 48 " L x 22" W x 8" H
- Digital Tunnel Temperature Control
- High Velocity Air Flow with Dual Mechanical Controls
- Open Coil Heating Element Guaranteed for 10 Years
- Three Heat Zones
- High Temperature Limit Switch
- Automatic Cool Down
- Quick Change 1/2" Diameter Live/Dead Rollers with 2" Spacing
- Pre-Shrink Feature Allows for 25" More Bottom Shrink
- 1/4 Horsepower Motor with Speeds up to 70 fpm
- Heavy Gauge Adjustable Height Console with Levelers and 3" Casters
- Stainless Steel Model Available for Food Grade Sites
- Two Year Manufacturer Limited Warranty
Specifications
- Inside Tunnel Dimensions: 48” L, 22” W, 8” H (122 cm L, 56 cm W, 20 cm H)
- Conveyor Variable Speed 0 - 30 ft./min. (9 m./min.) 0 - 70 ft./min. LDR (0 - 21 m./min. LDR)
- Power: 208~240 Volts, 54 Amps Three Phase
- Wattage: 12,900 Watts
- Overall Dimensions: 74” L, 31” W, 58” H (189 cm L, 79 cm W, 148 cm H)
- Weight: 675 Lbs. (307 kg)
Available Options
- Stainless Steel Construction (Food Grade)
- Steal Steel Wire Mesh Belt (Food Grade)
- Non Stick Mesh Belt Conveyor (T26)
- Non Stick Mesh Belt Overlay (For Live/Dead Conveyor)
- Roller Spacing: 1"
- Roller Spacing 1-1/2"
- Pack Cooler Fan (For Polyethylene)
- 12" High Tunnel Opening
- Hydraulic Easy Lift Adjustable Height Console
- Left Hand reverse Flow
