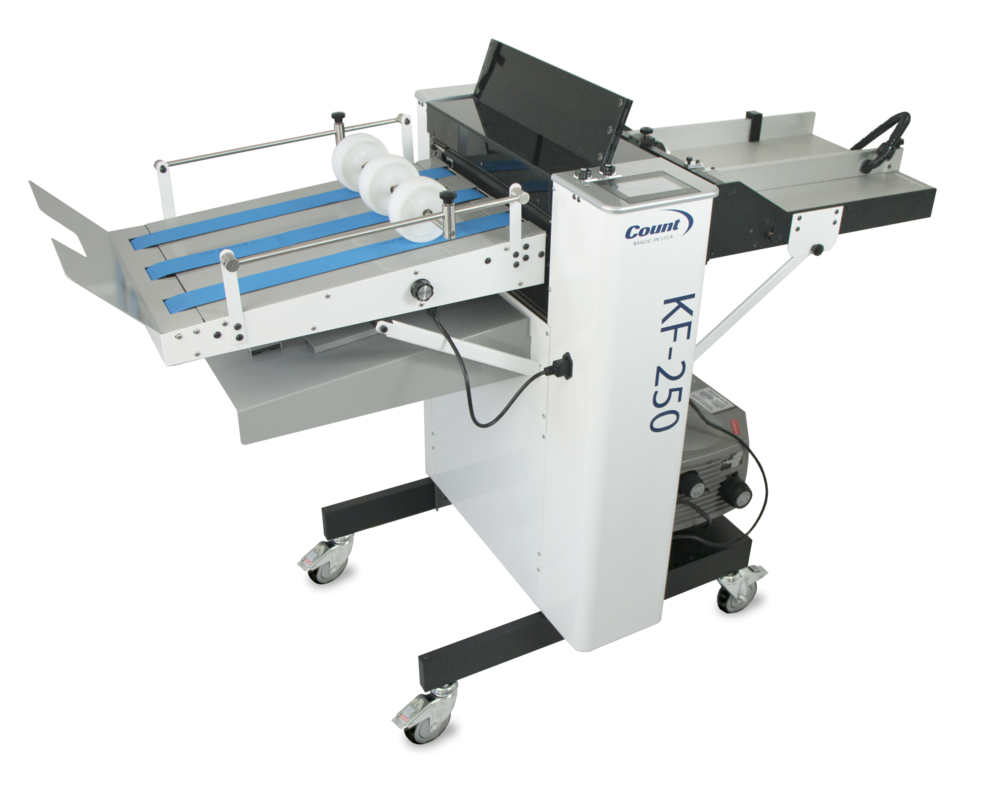

COUNT KF-250 Knife Folder
A precision-built solution for folding heavy or coated stock up to 350 gsm, the COUNT KF-250 delivers clean, accurate folds with zero cracking. Designed for seamless integration with slitter/cutter/creasers and digital workflows, it features intuitive touchscreen controls, a motorized exit conveyor, and support for inline production.
Precision Knife Folding
Ideal for digitally printed or coated stock where buckle folders fail—knife-blade action prevents cracking, even on thick card stock.
Fully Automated Setup
Supports 6 auto-fold presets and 4 memory slots. Adjust paper weight, crease position, and fold width via touchscreen.
Inline Compatibility
Connects directly to Count AccuCreaser, FC114A, or most 3rd-party creasers—adjustable register guides ensure perfect alignment.
Sensor-Based Exit Conveyor
Proximity sensor for automatic shingling and jam prevention. Variable-speed conveyor keeps jobs flowing cleanly.
Key Benefits
- No toner cracking or bending
- Fast setup with intuitive controls
- Compatible with most finishing lines
- Compact & maneuverable
- Low maintenance—sealed bearings
Applications
- Digital print shops
- Inline creasing + folding
- Heavy-stock brochures
- Short-run finishing
Available Options
Technical Specifications
| Specification | Details |
|---|---|
| Model | KF-250 Knife Folder |
| Folding Speed | Up to 4,300 sheets/hour |
| Paper Weight Range | 120–350 gsm |
| Sheet Size Range | Min: 5.5" × 4.75", Max: 33" × 14.4" |
| Feed Type | Bottom vacuum feed with fixed register guide |
| User Interface | Touchscreen with auto and manual fold modes |
| Machine Dimensions | 67" L × 28" W × 47" H |
| Machine Weight | 224 lbs |
