Horizon HSF-50 High Speed Sheet Feeder
Horizon HSF-50 High Speed Sheet Feeder
Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:
How to Purchase This Item:
How to Purchase This Item:
- Web: Sales Contact Form
- Call: 1-800-343-4231
- Email: sales@midstatelitho.com
- Text: (810) 238-7370

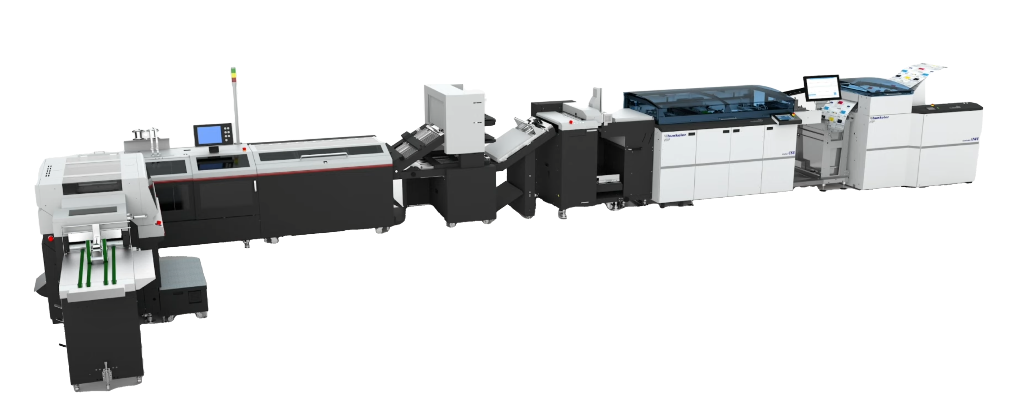

The Horizon HSF-50 is a precision-engineered, high-speed sheet feeder designed to seamlessly integrate with the Horizon iCE StitchLiner Mark V. Ideal for cut-sheet workflows, the HSF-50 delivers reliable, high-speed feeding of sheets from stacked piles, enabling efficient production of booklets in landscape and smaller formats with accuracy and stability.
Key Features
🔷 High-Speed Cut-Sheet Feeding – Feeds up to 45,000 sheets/hour from 600mm (23.62") high piles
🔷 Intelligent Sheet Handling – Shingled feeding with air assist ensures smooth transport of thin or heavy sheets
🔷 Auto Setup from Touch Panel – Setup is fully automated based on sheet and booklet size via Mark V interface
🔷 Bypass Mode Available – Easily switch between roll-fed and cut-sheet modes with the optional BC-HSF50
🔷 Variable Sheet Feeding – Standard mark sensor supports variable data; optional barcode reader (BR-HSF50) available
Specifications
| Specification | Detail |
|---|---|
| Max Sheet Size | 610 x 356 mm (24.015" x 14.015") |
| Min Sheet Size | 194 x 140 mm (7.640" x 5.515") |
| Paper Weight Range | 52.3 – 209 gsm (normal), 73.3 – 209 gsm (coated) |
| Max Stack Height | 600 mm (23.62"), up to 120 kg (264.4 lb) |
| Max Feeding Speed | 45,000 sheets/hour (A4 LEF), 35,000 (A3 LEF) |
| Infeed Height (Adjustable) | 940 to 1,090 mm (37.0" to 43.0") |
| Dimensions (W x D x H) | 900 x 1,065 x 1,255 mm (35.4" x 42.0" x 49.4") |
| Voltage/Frequency | 3-phase 200–415 V, 50/60 Hz |
Applications
🖨 Cut-sheet booklet production
📦 Variable data saddle stitching
⚙️ High-speed integration with Horizon iCE StitchLiner Mark V
Benefits
✅ Enables high-speed production of A4 landscape and small-format booklets
✅ Reduces labor and setup time with fully automated control
✅ Enhances flexibility in mixed-media finishing workflows
✅ Provides seamless transition between sheet and roll-fed jobs
✅ Maintains superior feeding stability even with thin or coated stock
