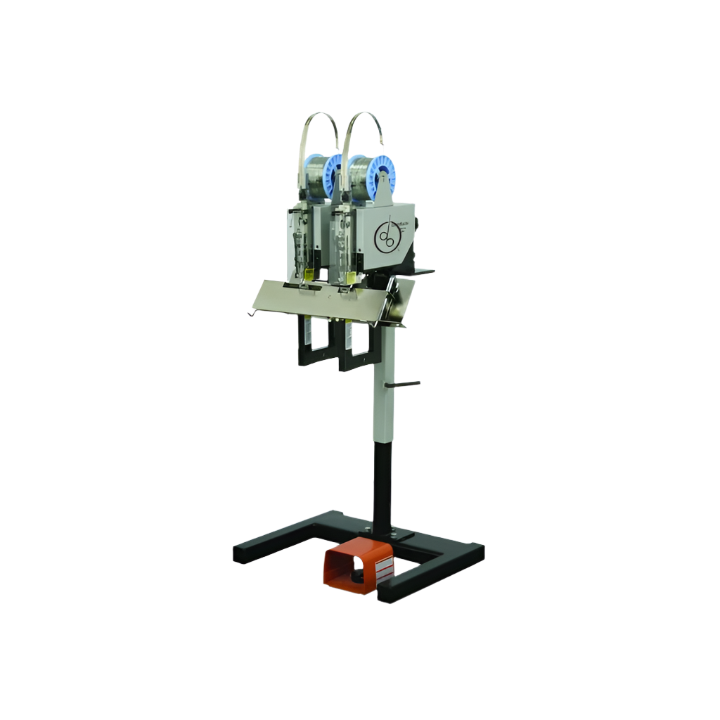

DeLuxe StitchMaster Dual Header
The DeLuxe StitchMaster Dual Head is a compact dual-head stitcher for saddle, flat, and corner stitching with adjustable spacing and 1/4" capacity.
We will quote equipment price, freight to your ZIP, and any install or service needs.
Tax-exempt? Apply once, check out tax-freeRequest a Quote
Tell us what you need—we’ll follow up quickly with pricing and options.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Details & specifications
The DeLuxe StitchMaster Dual Head pairs two synchronized stitch heads in one compact setup. It runs flat, saddle, or corner stitching on work up to 1/4" thick, with adjustable spacing between the heads and quiet operation. The system is sized for short-run booklet production on a tabletop or on the optional height-adjustable floor stand.
Key features
- Dual-head configuration with adjustable spacing (4" to 8")
- Stitches up to 1/4" thick (approx. 60 sheets of 20 lb bond)
- Flat, saddle, and corner stitching
- One-knob adjustment for stitch position and thickness
- Takes 23-28 gauge round wire or 21x25 flat wire
- Adjustable side stops from 2.5" to 26"
- Pop-up pins for corner stitch registration
- Foot switch or rear contact trip operation
- Single or continuous stitching modes
- Optional height-adjustable stand included with system
Specifications
| Specification | Details |
|---|---|
| Stitching capacity | Up to 1/4" thick |
| Throat depth (flat) | 5" |
| Throat depth (saddle) | 9" |
| Stitch spacing | Adjustable from 4" to 8" |
| Wire types | 23-28 gauge round, 21x25 flat |
| Side stops width | 2.5" to 26" |
| Power requirements | 115V, 50/60Hz (230V available) |
| Machine dimensions | 16" W x 15" D x 24" H (per head) |
| Machine weight | 28 lbs per unit |
| Stand height | Adjustable from 28" to 42" |
Applications
- Multi-staple booklets, catalogs, and manuals
- Flat and saddle-stitched reports or newsletters
- Corner-stitched document sets and small print jobs
Benefits
- Two heads place both stitches in one pass, which cuts production time on multi-staple work
- Adjustable stitch spacing and layout
- Compact footprint; runs on a tabletop or the floor stand
- Consistent stitch placement from job to job
- Simple operation with minimal training
