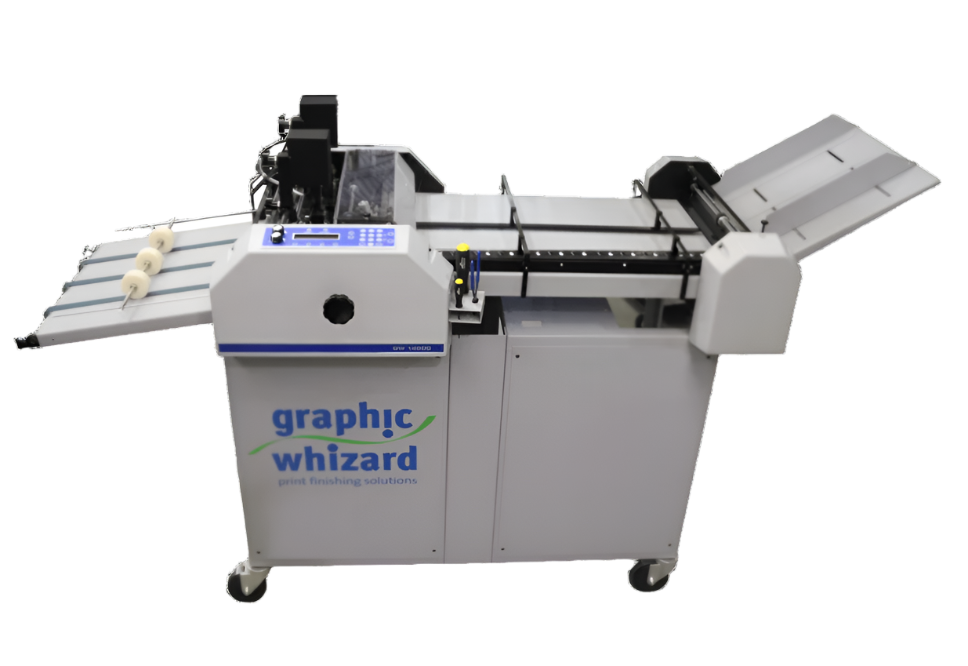

Graphic Whizard 12000 Numbering Machine
Buy the Graphic Whizard 12000 numbering machine from Mid-State Litho, an authorized Graphic Whizard dealer, with install, training and service.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Details & specifications
Details
This fully automatic, pneumatic numbering system with double shafts (DS) gives users greater productivity and versatility. Now, a four-up job can be numbered and easily processed with only a single pass through the machine. More productivity equals more profit. With features similar to the “8000”, the “12000” adds higher production speeds while maintaining register and accuracy. From the 30-inch-long register board, to the individually pressure adjustable perf/score/slit, to the tireless pneumatic heads, to the conveyor outfeed delivery, everything about the GW 12000 is designed for years of trouble-free operation. The GW 12000 offers all the above and more at a cost per feature and specification unmatched in the industry.
Features
- 12000 standard-size sheets per hour
- 100 job memory to store numbering jobs
- Up to 100 numbering positions per head per sheet
- Automatic feed; Optional "vertical" air feed available
- 1-4 Pneumatic numbering heads; compressor required but not supplied
- Heads rotate and lock throughout 360 degrees for perfect register
- Floor model on casters; doesn't need dedicated floor/table space
- Crash number up to 10-part sets
- Feed sets from the unglued or glued side
- Create "snap sets" while numbering
- Perforating options: 2, 4, 6, 8, 12 TPI
- Microperf options: 42 or 72 TPI
- Scoring options: wide (standard) or narrow
- Optional slitting blade available
- Ability to control depth of each perf/score/slit independently
- Accurate 0.10" register
- Microprocessor controlled with forward and backward stepping for easy programming
Specifications
| Electrical | 115V/60Hz/5A or 230V/50Hz/5A |
| Speed | 12,000 sph variable |
| Max. Stock Size | 18” x 18” (45.7cm x45.7cm) |
| Min. Stock Size | 3” x 5” (7.6cm x 12.7cm) |
| Stock Weight | 12# -12 point (45-300gsm) |
| Impression Control | Electronic variable, crash up to 10 parts carbonless |
| Feeder | Friction |
| Dimensions | 68”L x 27”W x 46”H (1.73×0.69×1.17m) |
| Weight | 200 lbs.(91kg) |
| Floor Model | Floor |
| Drive Unit Type | Pneumatic |
| Max. # of Heads | 4 |
| Numbering/Creasing Positions | 100 |
| Job Memory | 100 |
| Head Rotation | Lockable throughout 360 |
| Repeat Action | Consecutive 1x, 2x, 3x, 4x |
| Numbering Heads | Standard 6 digit reverse head |
| Perf Blade Options | 2, 4, 6, 8, 12. 16 teeth per inch |
| Micro Perf Options | 42 or 72 teeth per inch |
| Scoring Options | Standard, wide or narrow |
| 12 tpi Perf Blade | 1 |
| Score Blade | 1 |
NOTE: Machine performance will vary based on stock weight, type, and specifications of the job being performed.Â
The Graphic Whizard 12000 is a numbering machine that Mid-State Litho carries as an authorized Graphic Whizard dealer. It is built for sequential numbering, perforating, and scoring of forms, tickets, and NCR sets. Mid-State Litho delivers every GW 12000, installs it on site, trains your operators, and stands behind it with ongoing parts and service, so the machine is productive from day one.
Choosing the GW 12000: is it the right numbering machine for your shop?
When you size a numbering machine for your bindery, weigh your monthly volume, the largest job you run, the level of automation your operators want, and how much room you have on the floor. The GW 12000 sits within Graphic Whizard’s numbering machine range; review the specifications on this page against those factors to see where it fits between entry, mid, and production work. If you are comparing options, look at MSL’s sibling machines as well: Graphic Whizard 3000 Graphic Whizard GW 6000 Graphic Whizard 8000E. Not sure which model matches your workflow? Our equipment team will walk you through it.
About Graphic Whizard
Graphic Whizard is a respected name in numbering machines, known for build quality and a model range that scales from light-duty work to production volumes. Mid-State Litho is an authorized Graphic Whizard dealer that sells, installs, and services the line, so you get factory-backed equipment with local support. You can browse the full Graphic Whizard line in our Graphic Whizard collection.
Why buy your GW 12000 from Mid-State Litho
Mid-State Litho has been a print-finishing dealer since 1984 and is now second-generation, family-run, serving shops across Michigan and the Great Lakes. We do not just ship a box: we deliver, install, and train on the GW 12000, then back it with responsive parts and service. Equipment ships by freight with lift-gate delivery, and our team is a phone call away when you need supplies or support.
Related numbering machines and resources
Explore related numbering machines and category pages from Mid-State Litho:
- Graphic Whizard 3000
- Graphic Whizard GW 6000

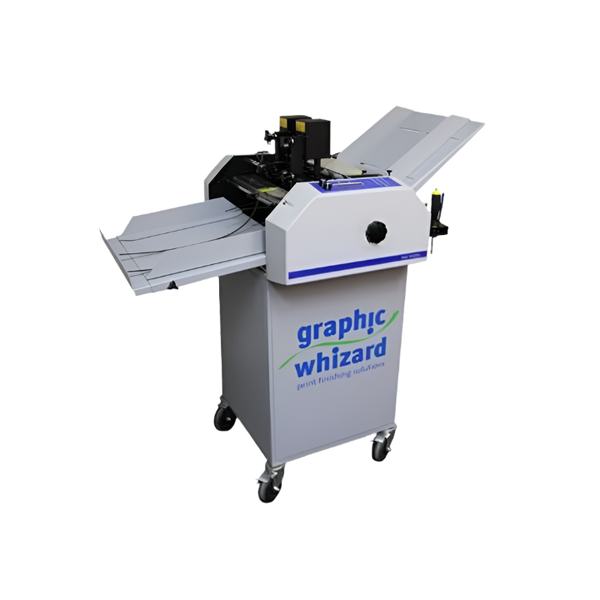

- Graphic Whizard 8000E
- Graphic Whizard 8000P-DS
- Morgana FSN II
- Numbering Machines
GW 12000 frequently asked questions
What is the GW 12000 used for?
The Graphic Whizard 12000 is a numbering machine that Mid-State Litho supplies to print shops and in-plant binderies. See the product details on this page for what it handles, or contact our team to confirm it suits your application.
What are the GW 12000 specifications?
Full specifications for the GW 12000 are listed in the product details above. For the current spec sheet, dimensions, and configuration options, contact our equipment team and we will match the GW 12000 to your workflow.
Does Mid-State Litho include installation and operator training?
Yes. Every GW 12000 we sell includes delivery, on-site installation, and operator training from Mid-State Litho, so your team is running confidently from the start.
How does the GW 12000 ship?
The GW 12000 ships by freight with lift-gate delivery. Mid-State Litho coordinates the shipment and delivery details with you when you order.
Where do I get supplies and service for the GW 12000?
Mid-State Litho is an authorized Graphic Whizard dealer and your source for supplies, parts, and service on the GW 12000. Reach out any time and we will keep the machine productive.
