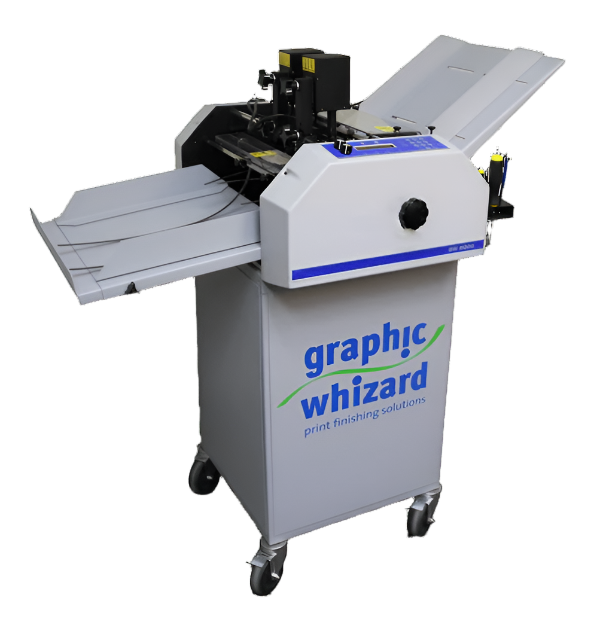

Graphic Whizard GW 8000P Numbering Machine
Graphic Whizard GW 8000P Numbering Machine
Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:
How to Purchase This Item:
How to Purchase This Item:
- Web: Sales Contact Form
- Call: 1-800-343-4231
- Email: sales@midstatelitho.com
- Text: (810) 238-7370
Pneumatic Propulsion for Enhanced Performance: Numbering, Rotary/Strike Perf & Score
Similar to the 8000E, the 8000P has pneumatic features. Numbering heads that are propelled pneumatically enable longer numbering durations and the option to add a strike perf attachment and up to 4 numbering heads with 100 numbers each per page. The GW 8000P includes 1 numbering head with a pneumatic drive unit (add up to 3 more), 1 accessory holder with 1 perforating wheel with 12 TPI and 1 score wheel as standard.
Features
- 8,000 sheets/sets per hour (8.5" x 11" vs 11" x 8.5")
- Upgradeable to GW12000 at any time! *Exception Model GW 8000P-DS
- Automatic feed
- Simple setup
- Easy to operate
- Feed sets unglued or glued side
- Microprocessor controlled with forward AND backward stepping makes for easy programming
- Up to 4 heads
- 1-4 PNEUMATIC numbering heads **NB Pneumatic machines; compressor required but not supplied
- Heads rotate & lock throughout 360 degrees
- Up to 100 numbers per head per sheet!
- 100 job memory to store numbering jobs
- Accurate 0.010" register
- Crash number up to 10-part sets
- Ability to control depth of each per/score/slit independently
- Create snap sets while numbering
- Perforating options: 2, 4, 6, 8, 12/inch & Microperf
- Wide (standard) or narrow score blades
- Optional slitting blade
- Optional conveyor outfeed
- Optional strike perf attachment
- 5-year Limited Warranty (5-year mechanical, 5-year prorated electronics, 1 year numbering heads, excludes consumables)
Specifications
| Electrical | 115V/60Hz/5A or 230V/50Hz/5A |
| Speed | 8,000 sph variable |
| Max. Stock Size | 18” x 18” (45.7cm x45.7cm) |
| Min. Stock Size | 3” x 5” (7.6cm x 12.7cm) |
| Stock Weight | 12# -12 point (45-300gsm) |
| Impression Control | Electronic variable, crash up to 10 parts carbonless |
| Feeder | Friction |
| Dimensions | 44”L x 27”W x 46”H (1.12×0.69×1.17m) |
| Weight | 125 lbs. (57kg) |
| Floor Model | Floor |
| Drive Unit Type | Pneumatic |
| Max. # of Heads | 4 |
| Numbering/Creasing Positions | 100 |
| Job Memory | 100 |
| Head Rotation | Lockable throughout 360 |
| Repeat Action | Consecutive 1x, 2x, 3x, 4x |
| Numbering Heads | Standard 6 digit reverse head |
| Perf Blade Options | 2, 4, 6, 8, 12. 16 teeth per inch |
| Micro Perf Options | 42 or 72 teeth per inch |
| Scoring Options | Standard, wide or narrow |
| 12 tpi Perf Blade | 1 |
| Score Blade | 1 |
NOTE: Machine performance will vary based on stock weight, type, and specifications of the job being performed.
