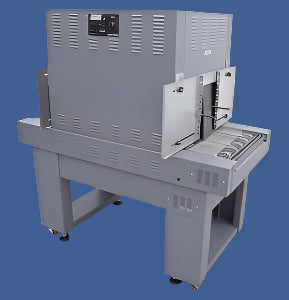

Heat Seal Banding Tunnel SB3422

The SB3422 is a special tunnel chamber that is great for shrink banding, including tamper evident shrink bands. It has a 10" high tunnel opening that is 22" wide. The tunnel itself is 34" long. It has temperature and speed adjustments for optimized production and perfectly tempered product. This tunnel has two heating zones.

Heat Seal SB3422 Features

• Tunnel Chamber 34 " L x 22" W x 10" H

• Digital Tunnel Temperature Control
• Two Heat Zones
• High Temperature Limit Switch
• Automatic Cool Down
• Intralox High-Temp Variable Speed Conveyor
• 1/4 Horsepower Motor With Adjustable Conveyor Speeds up to 35 fpm
• Heavy Gauge Adjustable Height Console with Levelers and 3" Casters
• Stainless Steel Model Available for Food Grade Sites
• Two Year Manufacturer Limited Warranty

Heat Seal SB3422 Specifications

• Inside Tunnel Dimensions: 34” L, 22” W, 10” H (86 cm L, 56 cm W, 25 cm H)
• Conveyor Variable Speed 0 - 35 ft./min. (9 m./min.)
• Power: 208~240 Volts, 9 Amps Single Phase
• Wattage: 2,200 Watts
• Overall Dimensions: 60” L, 31” W, 57” H (153 cm L, 79 cm W, 145 cm H)
• Weight: 560 Lbs. (255 kg)

Heat Seal SB3422 Available Options

• Stainless Steel Construction (Food Grade)
• Shrink Band Hold Down Kit
• 14" High Tunnel Opening
• Left Hand Reverse Flow
