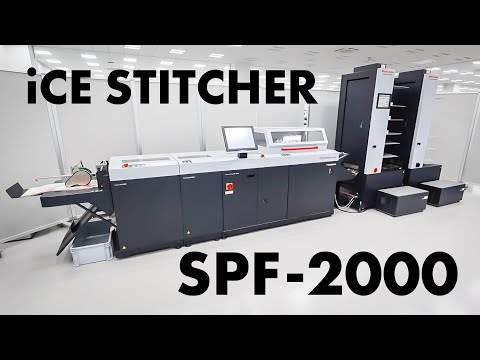

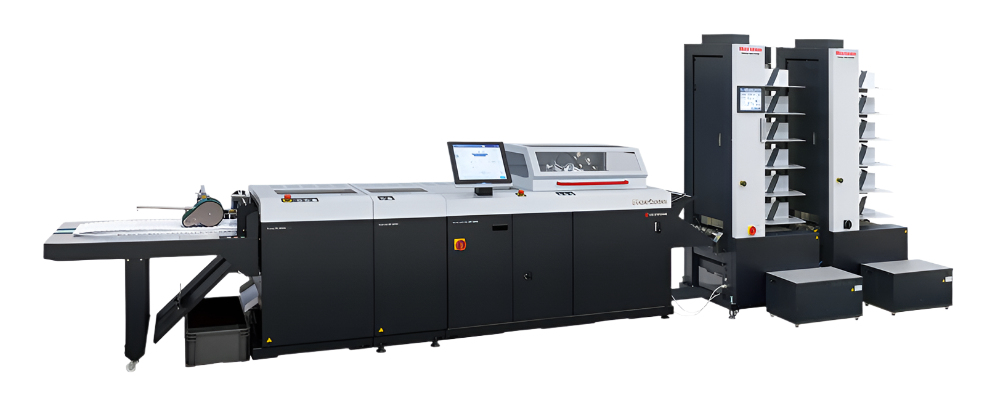

Horizon ICE STITCHER SPF-2000
The Horizon SPF-2000 is a fully automated bookletmaker supporting A4 landscape, loop stitch, and high-speed saddle-stitching at up to 4,700 booklets/hour.
Request a Quote
Tell us what you need—we’ll follow up quickly with pricing and options.
Details & specifications
Automated Stitching and Folding System
SPF-2000 — next-generation, fully automated bookletmaking for fast, consistent output across digital and offset workflows.
Key Features
- Up to 4,700 booklets/hour (A5 portrait)

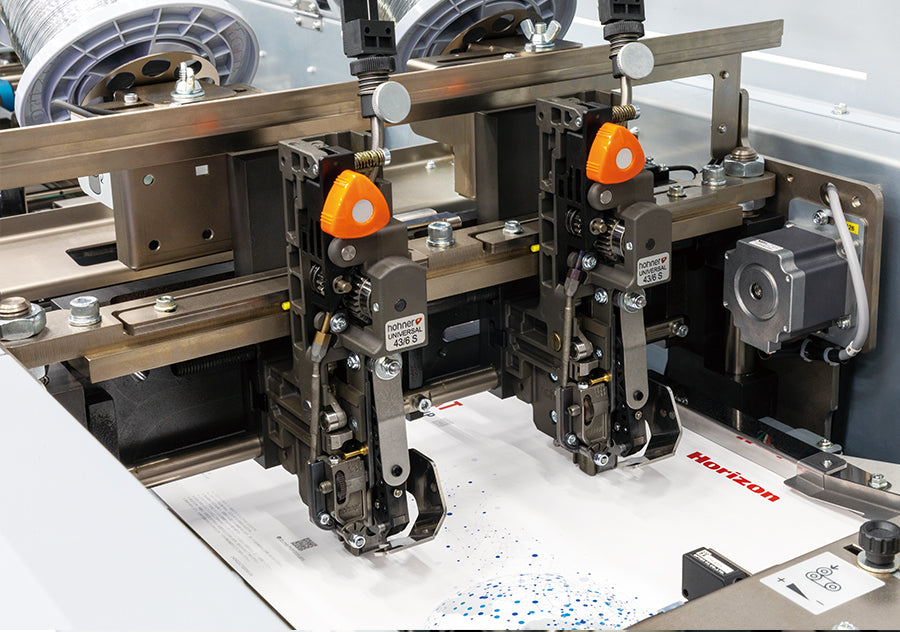

- Center, side, and optional corner stitching modes
- Handles A4 landscape booklets in a compact footprint

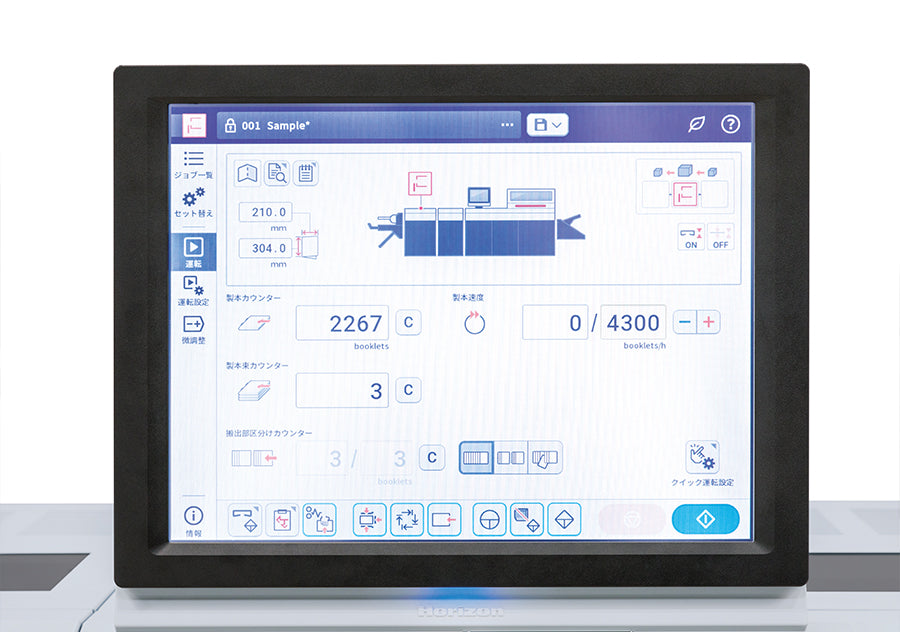

- 15" touchscreen with 999 job memory and live adjustments
- Automatic fold, jog, trim, and stitch detection for superior finish
- Compatible with VAC collators, HOF feeders, and iCE LiNK
Benefits
- Reduced setup time via full automation and job recall.
- Consistent stitch, fold, and trim quality at high speeds.
- Modular design scales with feeders, trimmers, and verification.
- Supports A4 landscape booklet production in limited space.
- Cloud-based visibility and tracking with iCE LiNK.
Applications
- đź“„ Digital and offset booklet production
- đź“š A4 landscape or portrait booklets
- 📦 On-demand manuals, catalogs, instruction booklets
- 🛍 Saddle-stitched retail or promotional materials
Available Options
- FC-2000 fore-edge trimmer
- HP-2000 hole punch unit
- FST-2000 four-stitching kit
- Loop stitch kit, barcode reader, preset kicker
- HOF-400 feeder, VAC collators, delivery conveyors
Specifications
| Specification | Detail |
|---|---|
| Functions | Bookletmaking, side stitch, fold only, optional corner stitch |
| Max Sheet Size | 14" Ă— 24" (356 Ă— 610Â mm) |
| Min Sheet Size | 4.725" Ă— 7.09" (120 Ă— 180Â mm) |
| Max Booklet Size (Trimmed) | 14" Ă— 11.925" (356 Ă— 303Â mm) |
| Min Booklet Size (Trimmed) | 4.65" Ă— 3.35" (118 Ă— 85Â mm) |
| Sheet Weight Range | 64–157 gsm (normal), 84.9–157 gsm (coated) |
| Max Stitch Thickness | 4Â mm (0.155") |
| Max Fold Thickness | 2Â mm (0.078") |
| Stitching Options | 2, 3, or 4 stitches; center or side; loop stitching optional |
| Production Speed | Up to 4,700 booklets/hour (A5), 3,700/hour (A4 landscape) |
| Power | Single phase 200–240 V, 50/60 Hz |
| Dimensions (Main Unit) | 65.2" W Ă— 30.3" D Ă— 49.7" H (1,656 Ă— 770 Ă— 1,262Â mm) |
| Weight (Main Unit) | 987.7Â lb (448Â kg) |
Specifications subject to change. Ranges depend on configuration, paper, and options.
We deliver it, install it, train your team and keep it running.
This is not a drop-ship. Our factory-trained technicians install on site, train your operators, and back it with same-day and next-day service across Michigan and the Great Lakes.
Install & train
On-site setup and operator training included.
Same / next-day service
Fast response across the Great Lakes.
Precision machining
Replacement parts fabricated in-house.
Financing
Lease and purchase options available.
