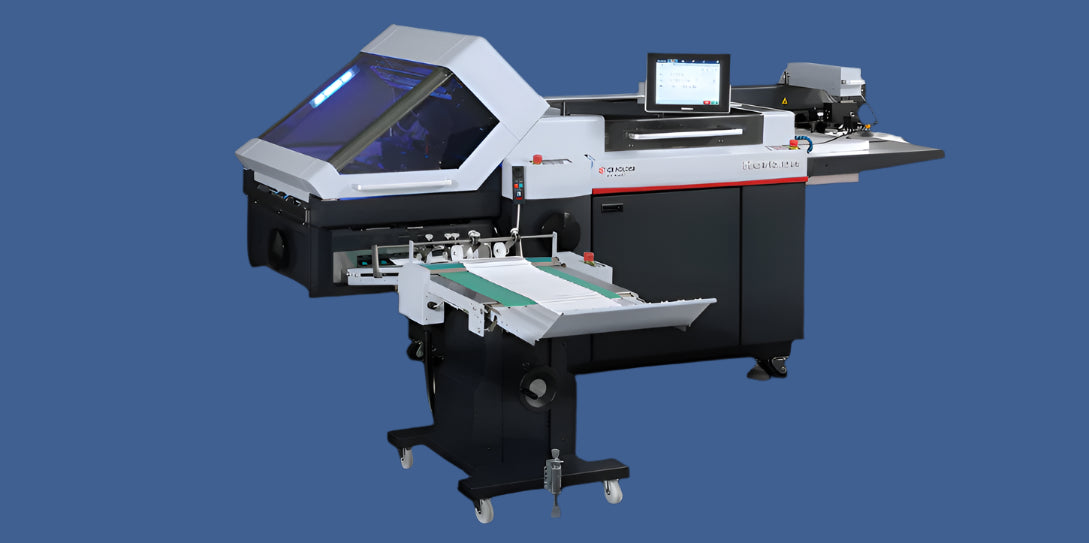

Horizon AFV-566FKT Folder
Automated 6-buckle folder with integrated knife/buckle cross-folding for fast, accurate, operator-friendly production.
The AFV-566FKT brings 44 fully automated settings for rapid, precise changeovers. An improved touchscreen drives roller-gap and buckle-plate adjustments, while status LEDs give at-a-glance feedback. A new single-piston suction head and automated register table with adjustable vacuum belt deliver stable feeding and accurate registration without trial-and-error. Setup is ~20% faster than prior models, with quieter operation thanks to sound-proof covers.
Key Features

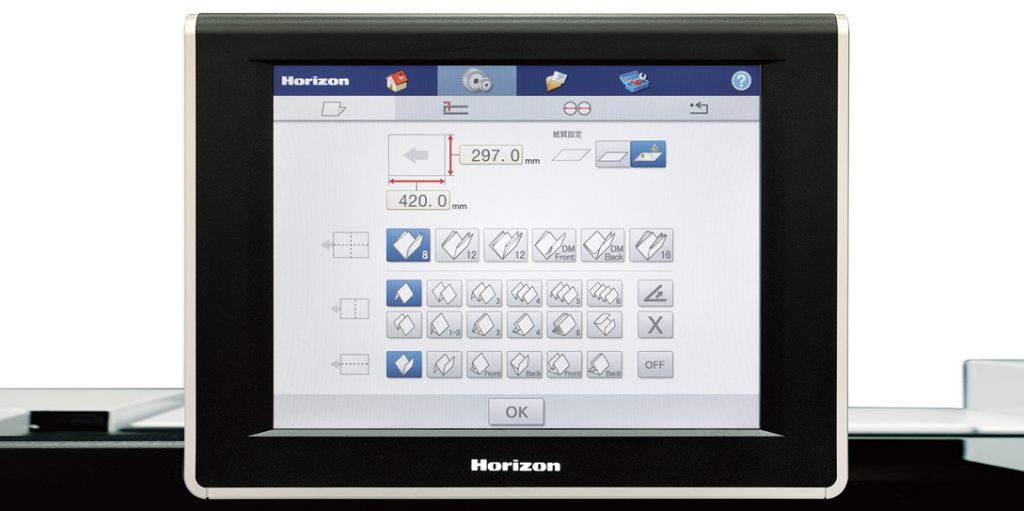

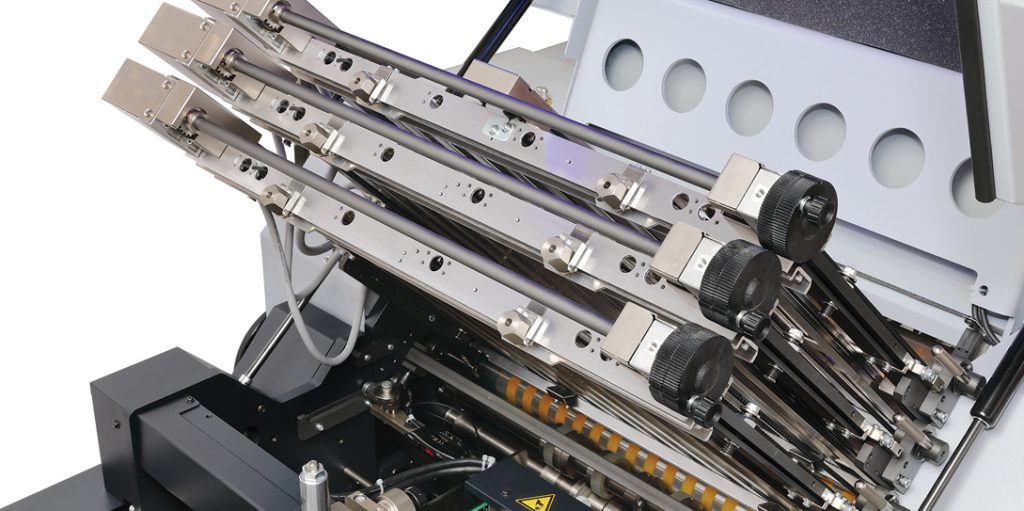

- 44 automated settings for roller gaps and buckle plates via touchscreen
- ~20% faster setup/changeover than previous models
- System status LEDs configurable for instant operator feedback
- Reduced noise — sound-proof covers lower levels by ~2 dB

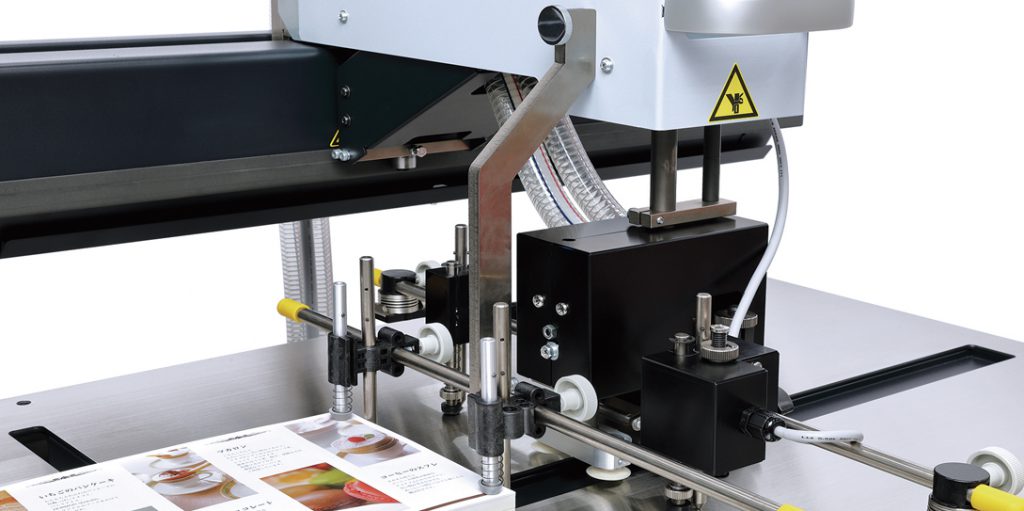

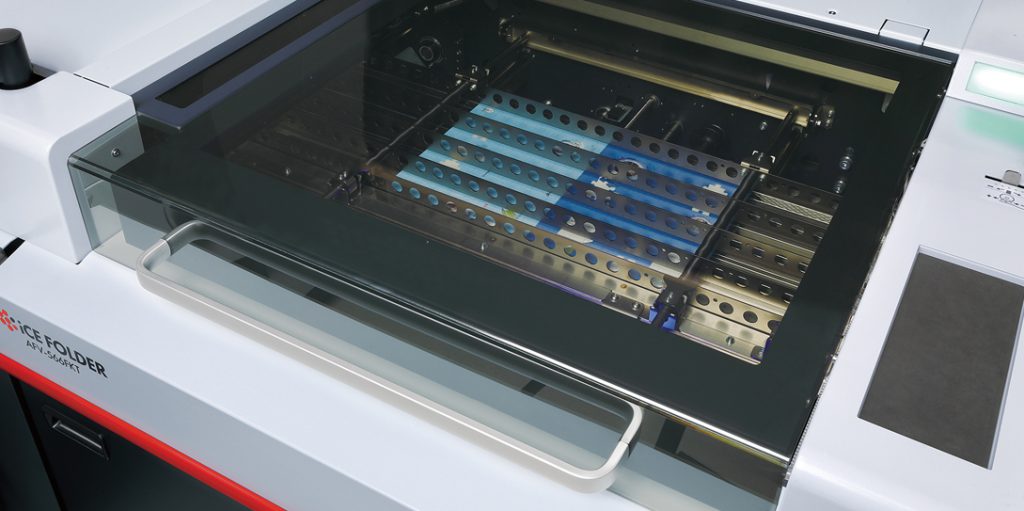

- Improved feed section — single-piston suction head; automated register table with adjustable vacuum belt
- No trial-and-error — auto feed-interval calculation for top speeds
- High production speeds — up to 656 ft/min (cross-fold) and 885 ft/min (parallel)
Benefits
- Higher throughput from automated setup and faster changeovers.
- Consistent accuracy thanks to advanced feeding and auto registration.
- Operator-friendly UI with clear LEDs and intuitive touchscreen control.
- Quieter work environment from enhanced acoustic covers.
Applications
- 📄 Brochures — multiple sizes and stocks
- 📰 Flyers — reliable high-volume folding
- 📑 Documents — pamphlets, pocket maps, direct mailers
Specifications
| Specification | Detail |
|---|---|
| Sheet Size | Max: 22.00″ × 35.40″ | Min: 5.08″ × 5.83″ |
| Paper Weight Range | Coated: 50–232 gsm | Uncoated: 40–250 gsm | Web-roll: 26–154 gsm |
| Belt Speed | Parallel fold: up to 885 ft/min | Knife fold: up to 656 ft/min |
| Pile Load Capacity | Max pile height: 27.5″ |
| Machine Weight | 551 lb |
| Job Memory | 999 slots |
Specifications subject to change. Actual ranges depend on configuration, paper, and options.
