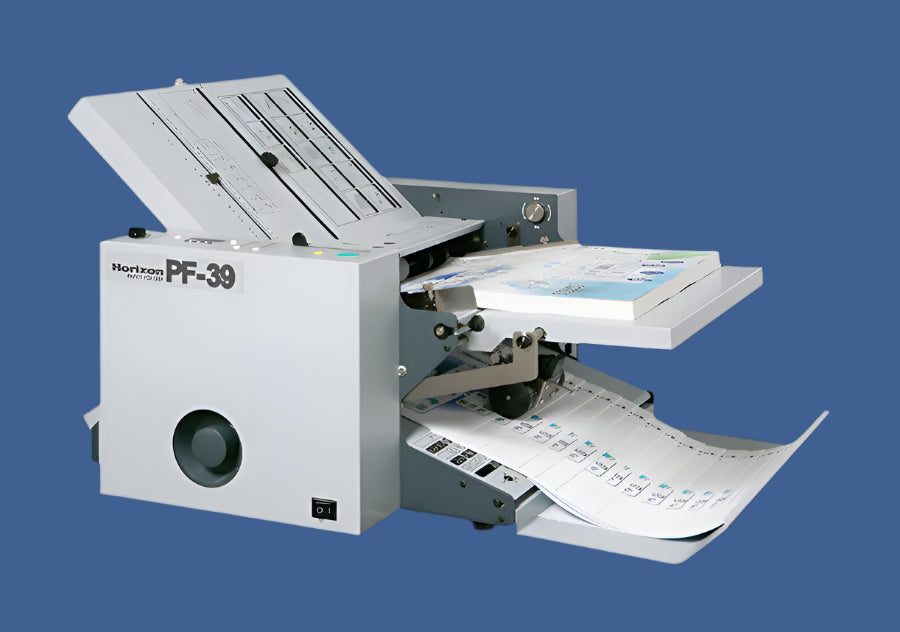

Horizon PF-39 Paper Folder
Achieve precise and efficient folding with the Horizon PF-39. Compact and versatile, perfect for brochures, flyers, and high-quality document finishing.
Request a Quote
Tell us what you need—we’ll follow up quickly with pricing and options.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Details & specifications
The PF-39 Paper Folder is a high-speed, tabletop folding machine built for efficient and precise folding operations. With exceptional speed, versatile handling capabilities, and a user-friendly design, it is the perfect solution for a variety of folding tasks in professional and office environments.
Key Features:
- High-Speed Folding: Folds up to 350 sheets per minute (A4 / 8.5” x 11” single fold), ensuring fast and efficient production.
- Wide Range of Sheet Sizes: Handles sheet sizes from a minimum width of 90 mm (3.55") to a maximum width of 365 mm (14.37").
- Coated Paper Capability: Can fold coated paper when hand-fed, offering flexibility for specialized needs.
- Enhanced Mechanism: Roller bearings housed in a casting structure provide superior folding accuracy and stability.
- User-Friendly Operation: Simple button-based setup for sheet size and fold pattern adjustments.

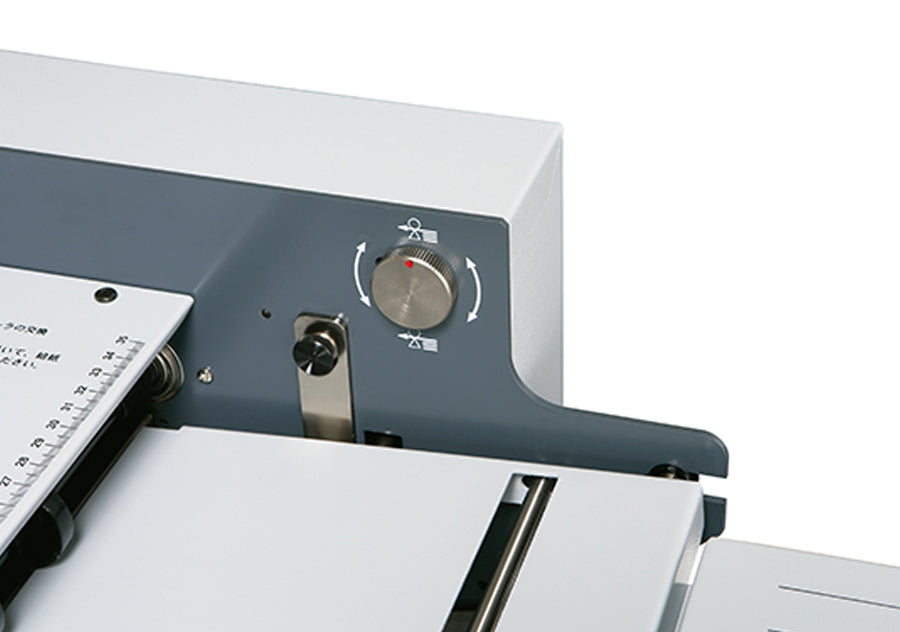

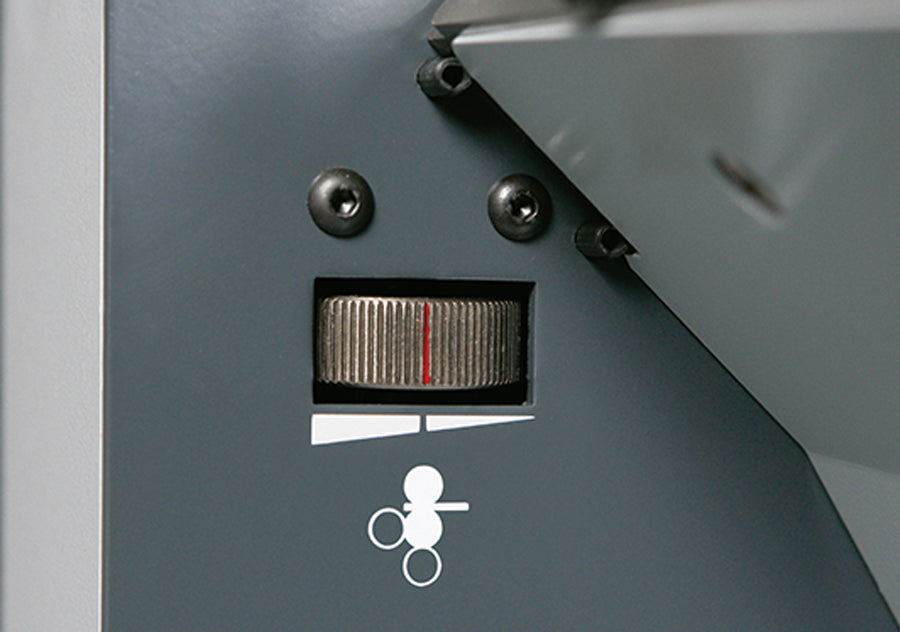

- Adjustable Roller Gap: Accommodates various paper thicknesses, from thin sheets to heavier stock.
- Efficient Workflow: Sheet feeding and delivery are performed on the same side for streamlined operation.
- Simple Maintenance: Easy access for jammed sheet removal and roller cleaning without requiring special tools.
Specifications:
| Specification | Details |
|---|---|
| Model No. | PF-39 |
| Sheet Feeding System | Friction system |
| Sheet Size (Width x Length) | Max: 365 x 610 mm (14.37” x 24.01”), Min: 90 x 128 mm (3.55” x 5.04”) |
| Paper Sizes | A3, A4, (A5) |
| Sheet Weight Range | Normal Paper: 52 to 157 gsm; Coated Paper (manual feed only) |
| Pile Height | Max. 30 mm (1.18”) |
| Fold Patterns | Single Fold, Double Parallel Fold, Short Fold, Accordion Fold, Letter Fold, Open Gate Fold |
| Production Speed | 350 sheets per minute (A4 - Single Fold) |
| Voltage / Frequency | Single Phase 115 to 120 V, 50 or 60 Hz; Single Phase 220 to 240 V, 50 or 60 Hz |
| Rated Current | 115-120 V: 1.3 A; 220-240 V: 0.6 A |
| Machine Dimensions | W890 x D575 x H560 mm (W35.1” x D22.7” x H22.1”) |
| Machine Weight | 56 kg (123.5 lbs) |
Â
Benefits:
- Efficiency: Achieves high folding speeds while maintaining accuracy and stability.
- Versatility: Capable of handling a wide range of paper sizes and fold patterns for various applications.
- Ease of Use: Intuitive controls simplify operation, reducing setup time.
- Compact Design: Tabletop size makes it perfect for offices, print shops, and small businesses.
Applications:
- Print Shops: Ideal for professional folding of brochures, flyers, and documents.
- Offices: Perfect for business correspondence, newsletters, and mailers.
- Educational Institutions: Great for folding handouts, booklets, and informational sheets.
