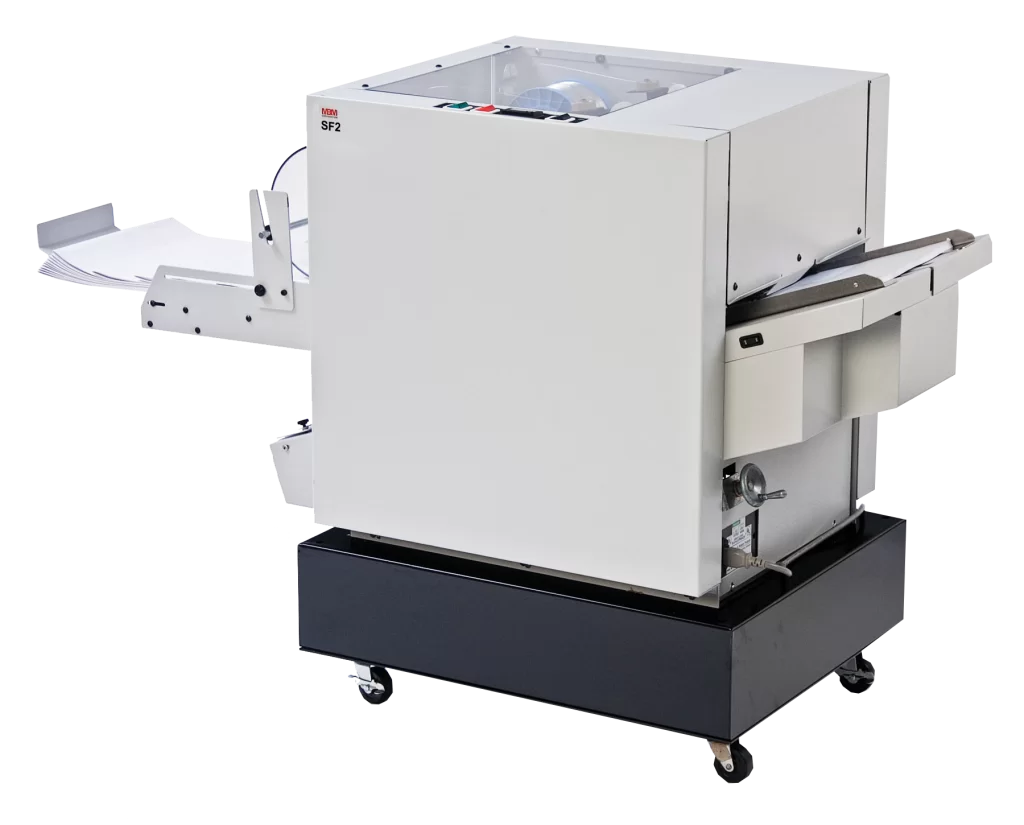

MBM SF2 Wire-Stitch Bookletmaker
MBM's Wire-Stitch Bookletmaker is an all-in-one bookletmaker that jogs, stitches and folds up to 65,000 booklets without replacing wire spools.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Details & specifications
MBM SF2 Wire-Stitch Bookletmaker
The MBM SF2 is a high-speed, heavy-duty bookletmaking system built for medium to high-volume production. Its wire-fed stitching design helps reduce operating cost compared to pre-formed staple systems, while maintaining consistent booklet quality for print shops, corporate environments, and education.
Key Features
- Wire-fed stitching system reduces consumable cost versus pre-formed staple bookletmakers
- High-speed output producing up to 2,300 booklet sets per hour
- Versatile media range supporting paper sizes from 4.75″ × 8.5″ to 12.68″ × 18.25″
- Push-button controls with a 6-digit counter for straightforward operation and batching
- Adjustable stitch length for secure binding across different booklet thicknesses
- Magnetic stitching heads with movable positioning for accurate alignment

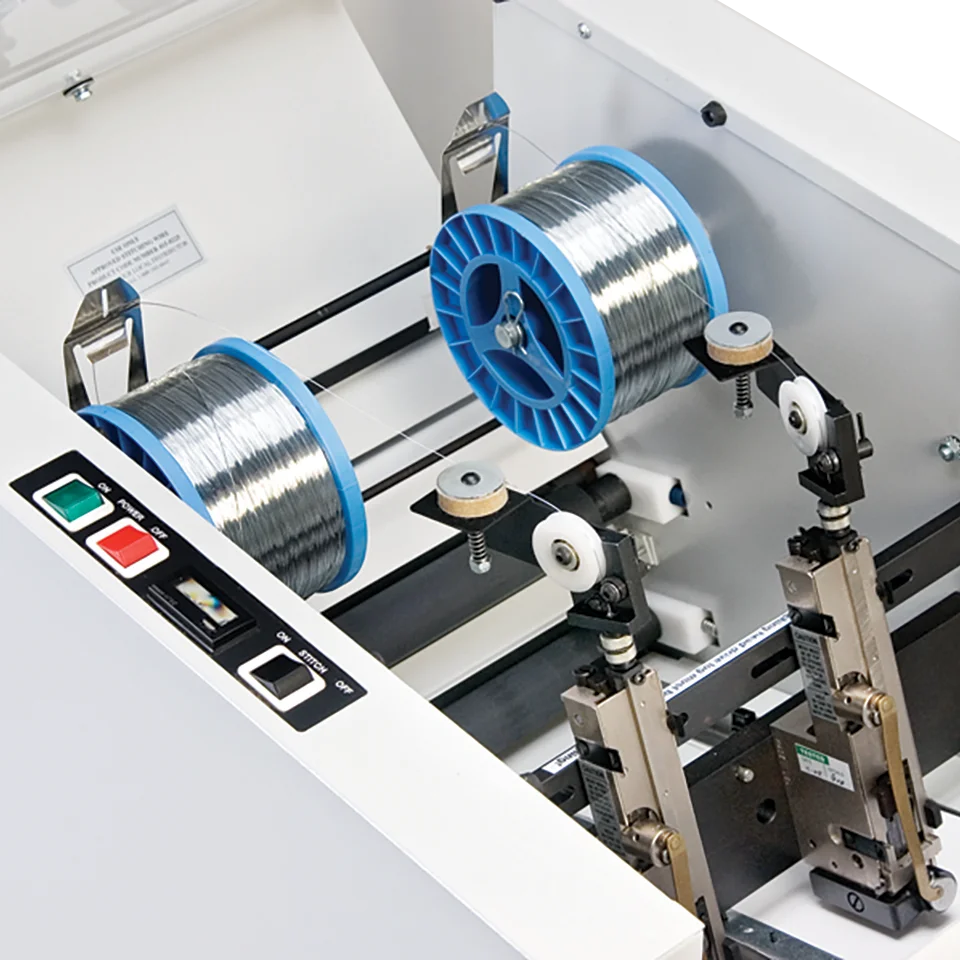

- One-step threading for quick setup and reduced downtime

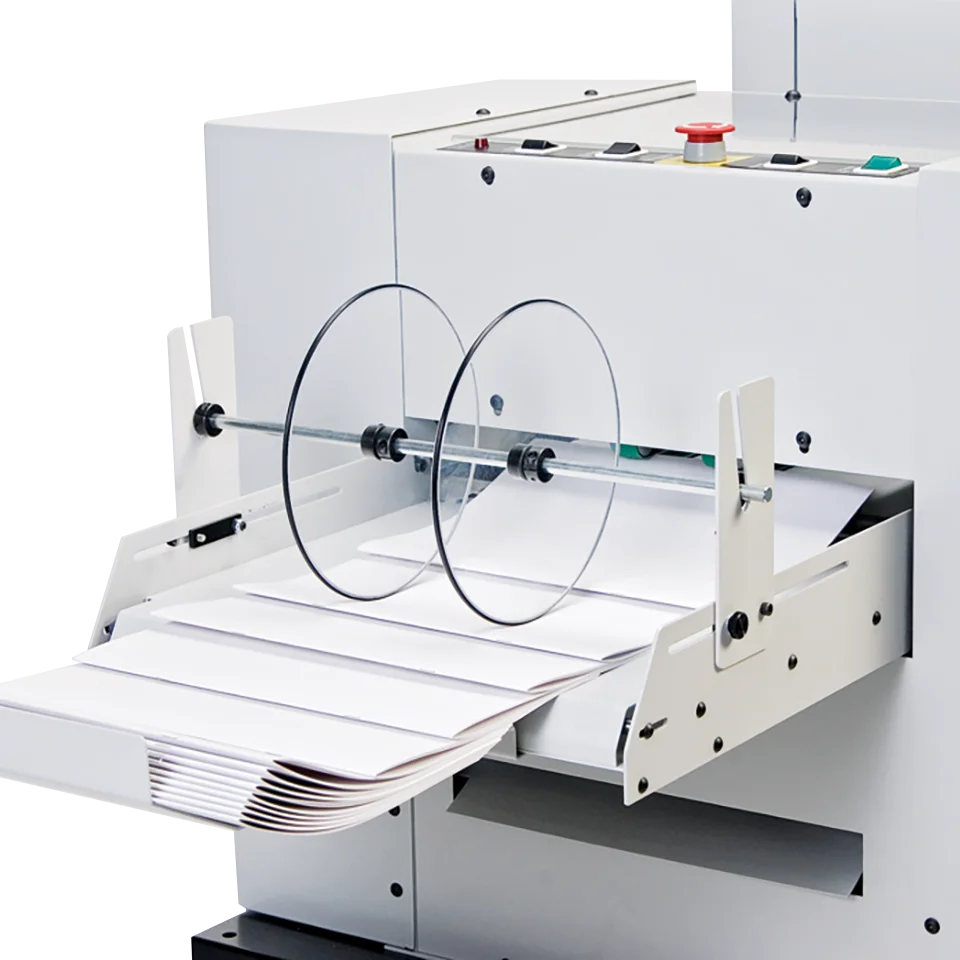

- Powered exit conveyor stacks finished booklets neatly to support continuous flow
- Heavy-duty clutch and bearings designed for long-term production reliability
- Safety interlocks with transparent access covers that prevent operation when open
Why It Matters
The SF2 is designed for shops and departments that need speed, consistency, and lower operating cost over time. Wire stitching can reduce staple consumable expense, while the conveyor delivery and one-step threading support high-throughput production with fewer interruptions.
Specifications
| Sheet Capacity | Up to 25 sheets |
| Booklet Capacity | Up to 100 pages |
| Speed | Up to 2,300 sets per hour |
| Paper Size Range | 4.75″ × 8.5″ to 12.68″ × 18.25″ |
| Electrical Requirements | 115 V, 60 Hz |
| Dimensions (D × W × H) | 21″ × 52″ × 24.5″ |
| Shipping Weight | 402 lbs |
Available Options
- Face trimmer for inline trimming on booklets up to 100 pages
- Activated clinch for enhanced stitch security and durability
- Corner / side stitch gate for expanded stitching configurations
Benefits
- Lower long-term consumable cost with wire-fed stitching
- High-speed production supports tight turnaround schedules
- Professional finish quality with adjustable stitch length and precise head alignment
- Safe, straightforward operation with interlocked access covers and push-button controls
Applications
- Print shops: booklets, brochures, manuals, and short- to mid-run programs
- Corporate: reports, proposals, training materials, and internal communications
- Education: course packets, event programs, and student-facing materials
