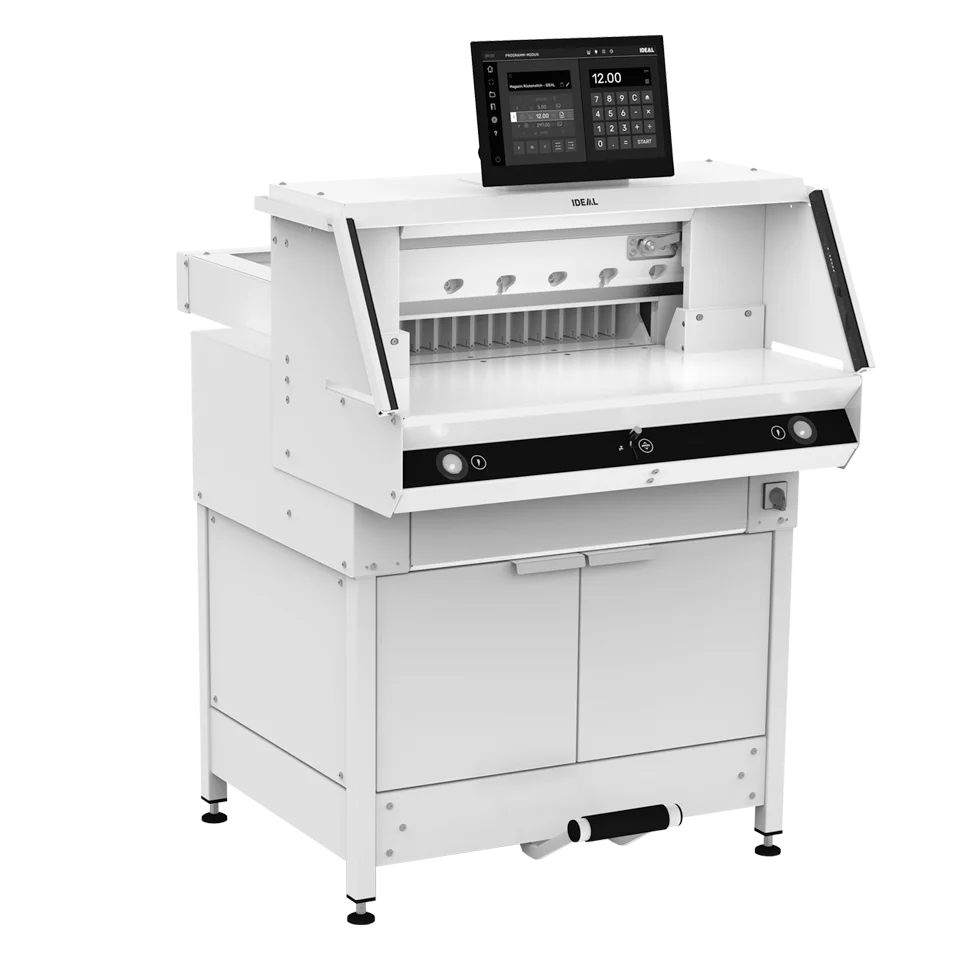

MBM Triumph Speedcut 56 Paper Cutter

Next-generation programmable powered paper cutter.

Increase efficiency and productivity by working smarter.

• 15.6" multi-touch display: Intuitive software with comprehensive features and operation via touch and swipe gestures, and clear main screen with intelligently split display. The tilt adjustable display can be ergonomically adapted to body height and lighting conditions.
• Precision drive: The manual fine adjustment of the back gauge ensures maximum precision - user-friendly via the ergonomic control element at the front of the machine.

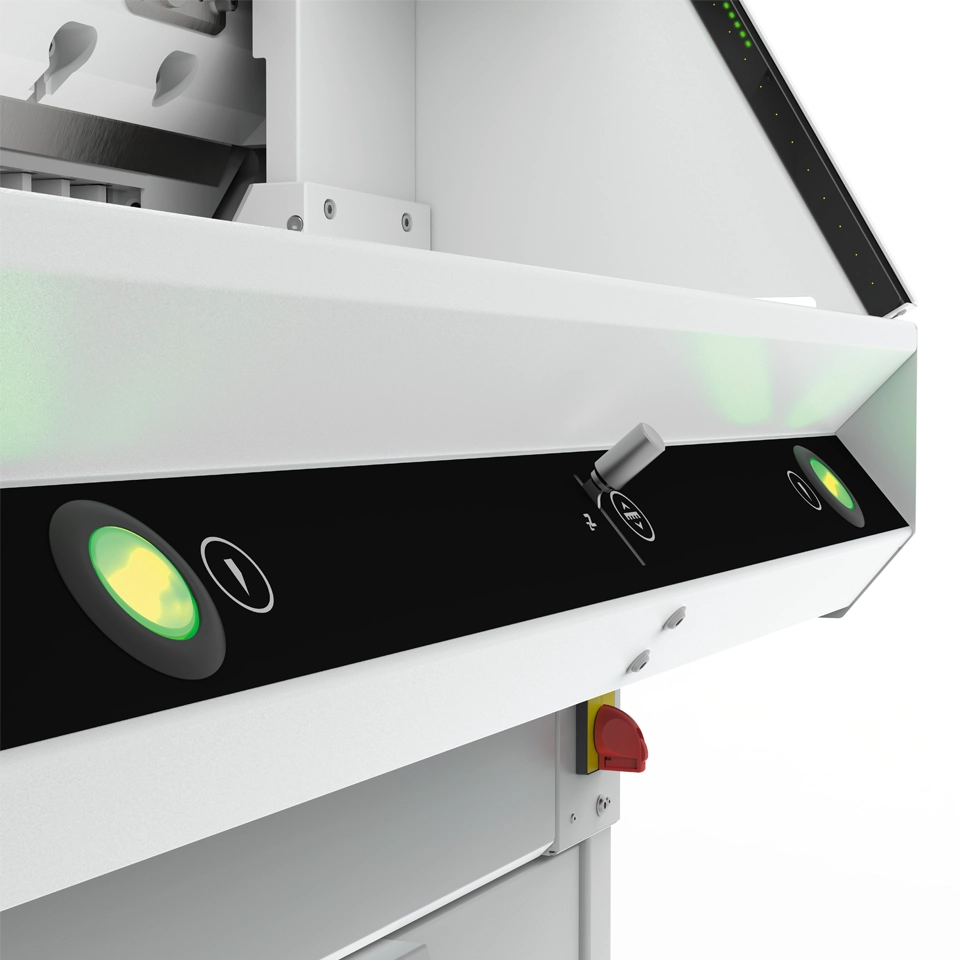

• Easy touch cut activating: Safe true two-hand operation: A cut can be executed conveniently and safely by means of the EASY-TOUCH blade activating buttons with integrated optical signals indicating the operational status.

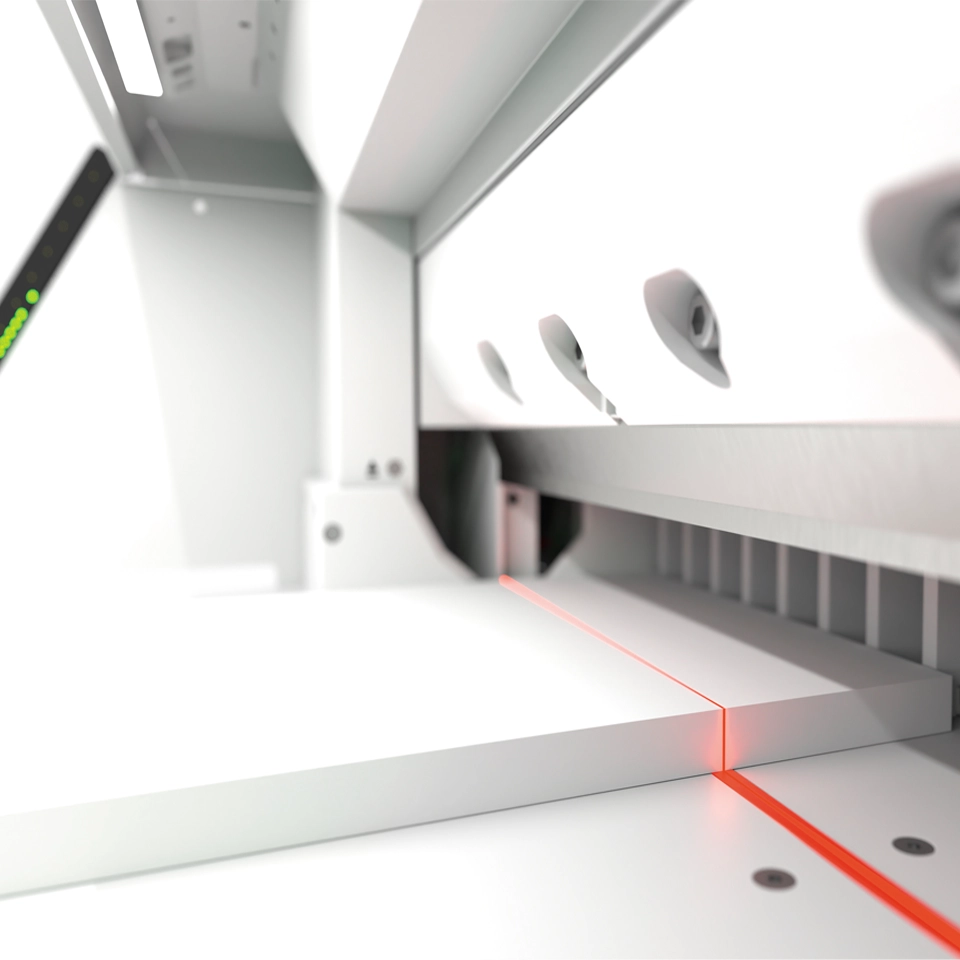

• Mechanical foot clamp: Ergonomic, patented foot pedal functionality for independent mechanical pre-clamping or as a mechanical cutting line indicator.

Machine Features:

• Comprehensive SCS safety package: Patented easy cut electronic blade activation bars for true two-hand operation

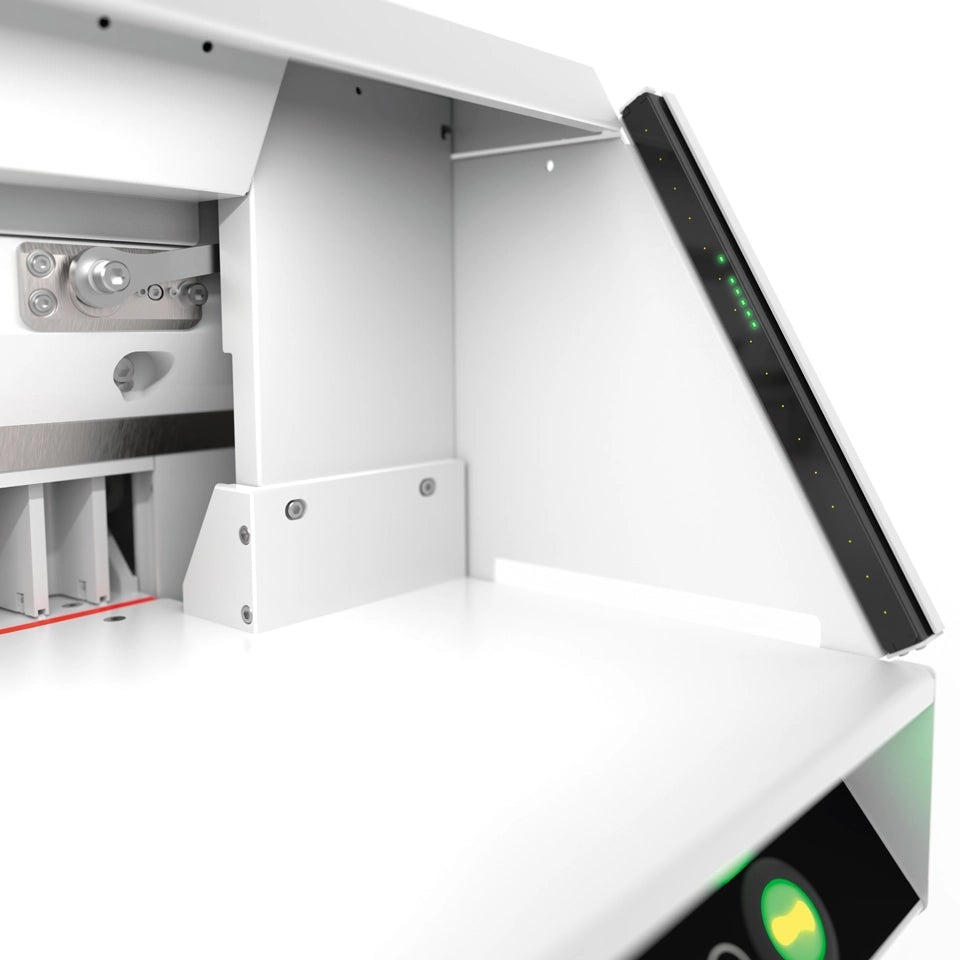

• IR light beam safety curtain
• Intuitive software with comprehensive features
• Pin controlled, electronic code lock to secure the machine
• Clamp bar with infinitely programmable pressure adjustment
• Blade made of high-quality special steel
• Patented blade depth adjustment
• Integrated cutting stick change function
• Integrated tool storage
• Lift truck compatible stand with storage shelf

Machine Specifications:

• Cutting width: 22"
• Cutting height: 3.15" / 3"*
• Narrow cut: <.6" / 2.3"
• Table depth: 22"
• Table height: adjustable from 37" - 39"
• Electrical requirements: 220 V, 3 phase

*with false clamp
