MBM Triumph 7260 28" Programmable Paper Cutter

MBM Triumph 7260 28" Programmable Paper Cutter

Regular price $31,099.00 USD
Regular price $0.00 USD Sale price $31,099.00 USD
Sale Sold out
Shipping calculated at checkout.
Optional Side Tables

Triumph 7260 28" Programmable Paper Cutter with VRCUT Details:

This item is restricted from online sale. Please contact us for a price quote.

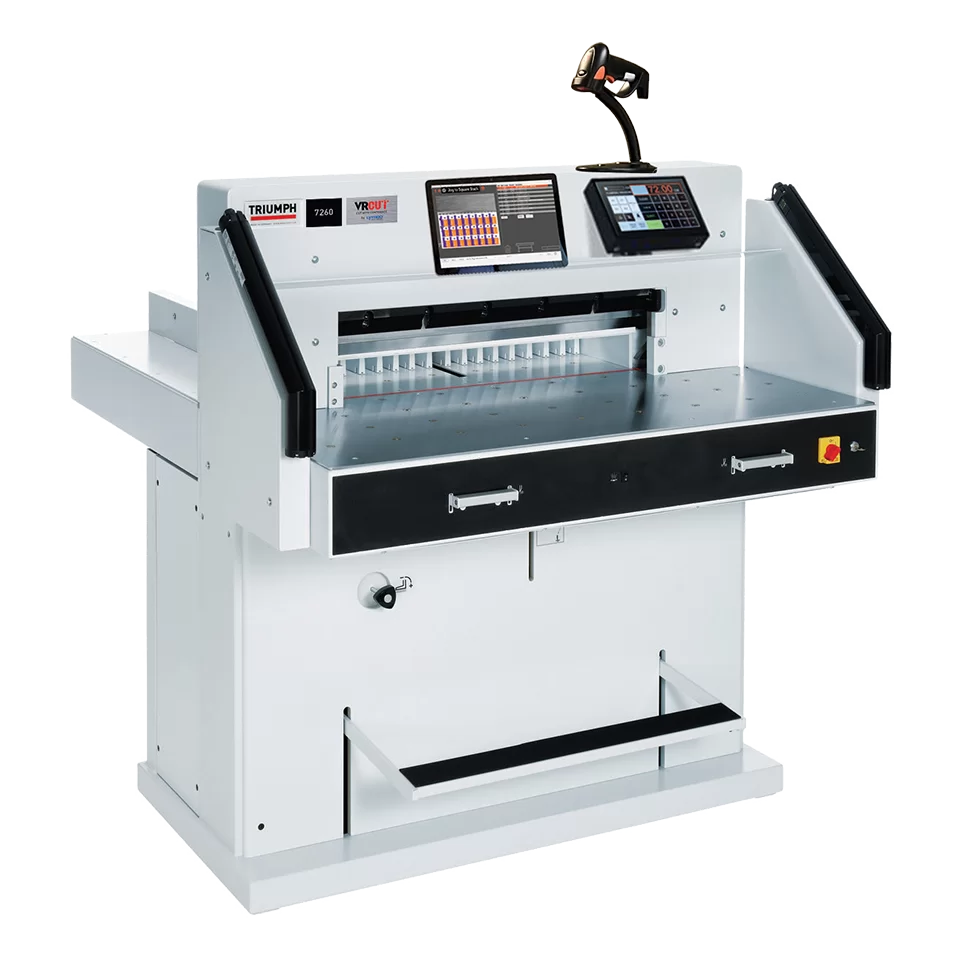

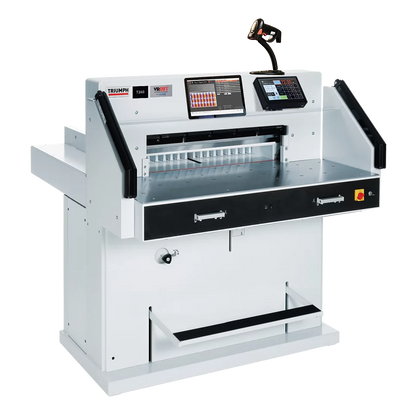

The Triumph 7260 is a 28" programmable paper cutter with hydraulic clamp, power back gauge, touch pad, control module, and IR safety light beams on front table.

Product Details:

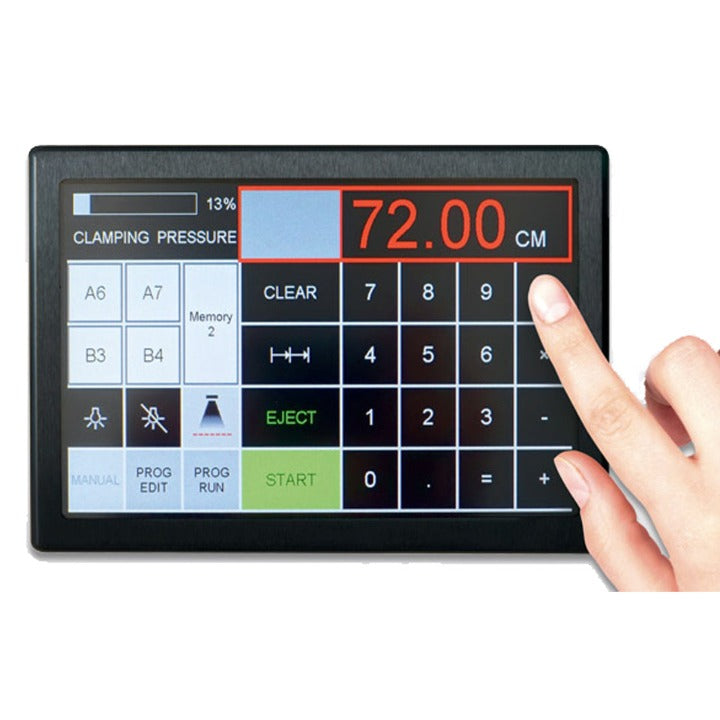

  • 28" programmable cutter with hydraulic clamp, power back gauge, 7" touchpad control module, and IR safety light beams on front table
  • Hydraulic clamp drive
  • Foot pedal for pre-clamping
  • Electric back gauge drive with control module for easy programming
  • Digital measurement display (cm or inches) with multilingual operator guidance, accurate to 1/10 mm or 1/100 inch
  • Stores 99 programs with up to 99 steps in each (up to 15 repeat cuts can be integrated as a single step)
  • Pre-programmed for standard paper sizes
  • Memory keys for repeat cuts (manual) and quick setting of frequently needed measurements
  • Automatic SET function for reference measurement and paper eject function with and without program mode
  • Delete and insert mode for correcting and modifying programs
  • Automatic correction in case of back gauge displacement
  • Push buttons for fast back gauge movement (forward and reverse)
  • Integrated calculator
  • Self-diagnostic system with error indication on display
  • Electric blade drive with solid steel carrier and adjustable guides
  • Electronic back gauge control with variable speed control for manual back gauge setting
  • Clamp pressure is fully adjustable between 550 and 4,400 psi
  • False clamp plate with optical indicator
  • Bright, LED optical cutting line Standard air tables (front and rear)
  • High quality, German HSS blade
  • Precision swing cut blade movement
  • All-metal construction Includes easy-access tool holder and paper blocking tool
  • Optional side tables increase work surface
  • UL and C UL approved

Specifications:

  • Cutting Width: 28"
  • Blade Material: German Steel
  • Cutting Height: 3" (with and without false clamp)
  • Length Behind Blade: 28"
  • Narrow Cut: 3/4" (3/12" with false clamp)
  • Clamp Type: Adjustable Hydraulic
  • Horsepower: 2
  • Electrical Requirements: 208/230 V. AC. 50/60 Hz, 3-Phase plug, 20-amp circuit breaker, L15-20R
  • Shipping Weight: 1,535 lbs (1,622 with side tables)
