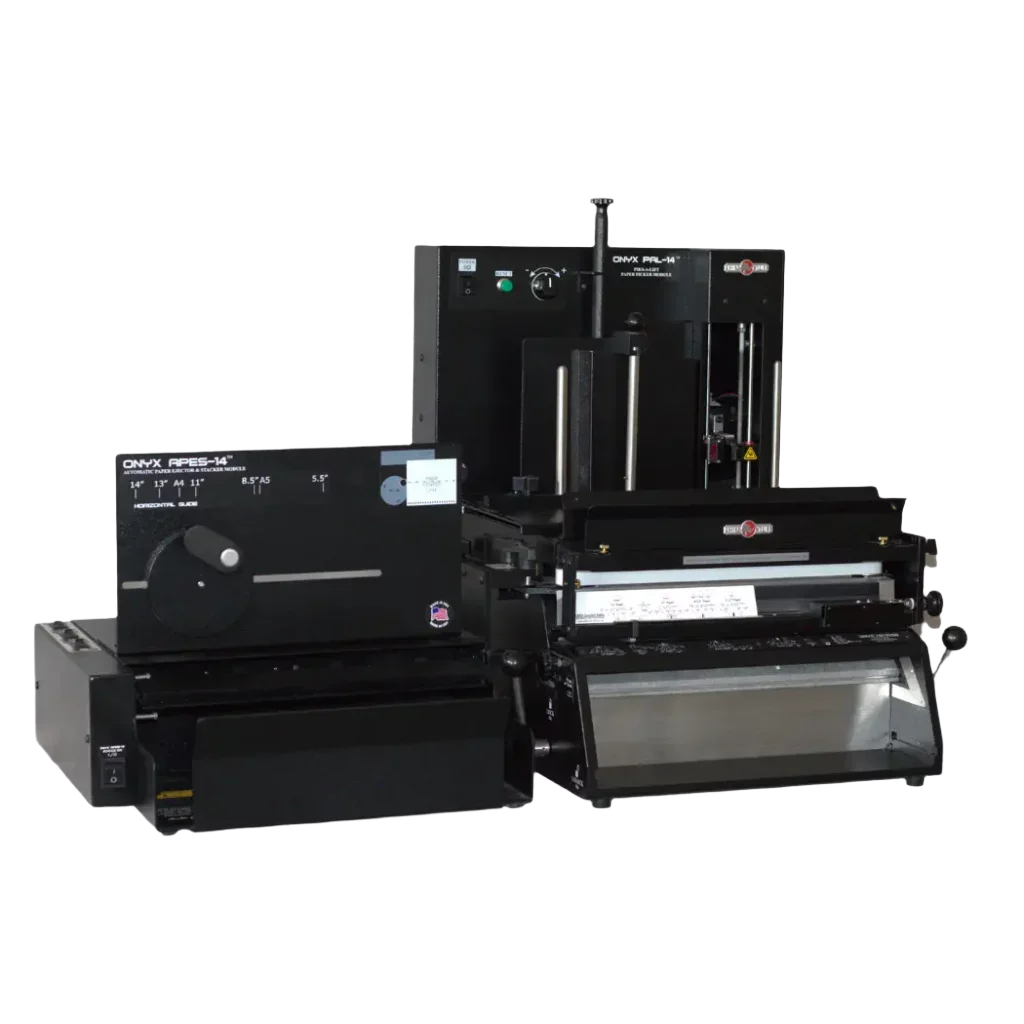

Rhin-O-Tuff PAL-14 Auto Pick-A-Lift
Rhin-O-Tuff Onyx PAL-14 Pick-A-Lift lifts the right number of sheets for each punch cycle. Takes 5.5 x 5.5 in to 8.5 x 14 in paper, tabs and covers.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications
Automated paper separator module
The Rhin-O-Tuff Onyx PAL-14 is a paper lifting module that separates the right number of sheets for insertion into a punching machine. It runs standalone or mounts directly to Rhin-O-Tuff OD and HD vertical punches, and it is compatible with the APES-14. Lifting a consistent stack every cycle cuts jams and misfeeds. It handles index tabs, covers, and legal-size paper.
Key features
- Lifts paper to the right thickness for punching automatically
- Handles paper sizes from 5.5" x 5.5" to 8.5" x 14"
- Works with index tabs, clear covers, and oversized sheets
- Compatible with OD/HD punches and APES-14 systems
- Front dial control with auto-reset to the top of the stack
- More than 98% recyclable and made in the USA
Specifications
| Specification | Detail |
|---|---|
| Supported paper sizes | 5.5" x 5.5" to 8.5" x 14" (140 x 140 mm to 216 x 356 mm) |
| Paper lift capacity | Up to 3 reams |
| Operation type | Electric/semi-automated |
| Compatibility | Fits OD/HD Rhin-O-Tuff punches, APES-14 |
| Power requirements | 115V / 230V (50/60 Hz) |
| Dimensions (H x W x D) | 15" x 19" x 16" (381 x 483 x 406 mm) |
| Weight (assembled/shipping) | 31 lbs / 35 lbs (14.1 kg / 15.9 kg) |
| Warranty | 6-year mechanical warranty |
Applications
- High-speed document punching
- Tabbed dividers and cover page punching prep
- In-plant and commercial binding workflows
- Legal-size and oversize paper finishing
Available options
- Mounting brackets for OD/HD punches
- Integration with the APES-14 automatic paper ejector system
- Standalone table mounting configuration
Benefits
- Raises punching throughput with consistent lifts
- Reduces operator fatigue and paper jams
- Fits into existing punch workflows
- Supports a wide range of media types and sizes
- Suits repetitive punch jobs that need automation
Manual or automatic paper separator
Mid-State Litho sells two Rhin-O-Tuff Pick-A-Lift models. Both separate a set stack of sheets for the punch.
- Rhin-O-Tuff PAL-14 (this machine): the automatic version. It lifts the stack for each cycle and resets to the top of the stack.
- Rhin-O-Tuff Onyx PAL-M: the manual version.
See punches and punch accessories on the paper punching page, or see all Rhin-O-Tuff equipment.
Delivery, service and financing
The PAL-14 ships direct from Rhin-O-Tuff by parcel. The shipping weight is 35 lb.
For setup and repair, see service and support. To pay in monthly amounts, see financing and leasing. To check the fit with your punch, use the contact page.
Frequently asked questions
What does the Rhin-O-Tuff PAL-14 do?
It lifts the right number of sheets from a stack for each punch cycle. A constant lift on each cycle cuts jams and misfeeds.
What paper sizes does the PAL-14 take?
It takes paper from 5.5 x 5.5 in to 8.5 x 14 in (140 x 140 mm to 216 x 356 mm).
Can the PAL-14 handle index tabs and covers?
Yes. It handles index tabs, clear covers and legal-size paper.
How much paper does the PAL-14 hold?
It lifts up to 3 reams.
What is the difference between the PAL-14 and the PAL-M?
The PAL-14 is the automatic version with a front dial and auto-reset. The PAL-M is the manual version.
