Roll to Cut Stack Gen8
Maximize efficiency with the Roll to Cut Stack Gen8. High-speed cutting, stacking, and dynamic format changes for precision finishing in high-volume production.
Request a Quote
Tell us what you need—we’ll follow up quickly with pricing and options.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Details & specifications

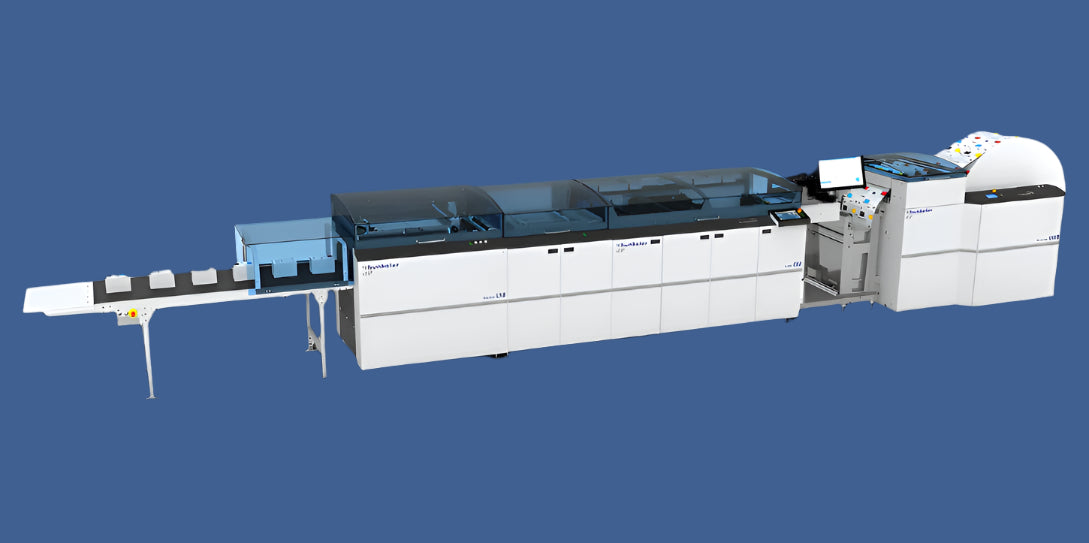

The Standard Hunkeler Roll-to-Cut Stack Gen8 is a state-of-the-art roll-fed finishing system engineered for high-speed cutting and stacking applications. Designed for precision and efficiency, it supports variable format production and integrates seamlessly with modern digital print workflows. Featuring a modular design and DynaCut functionality, the Gen8 delivers unparalleled flexibility, making it ideal for demanding commercial print and finishing environments.
Access a case study on this machine here.
Key Features
🔹 DynaCut Functionality: Allows for variable format production with on-the-fly cut-off length adjustments of up to 30", eliminating manual intervention and maximizing productivity.
🔹 High-Speed Operation: Processes roll-fed media at speeds from 33 to 590 feet per minute, enabling smooth and continuous performance in high-volume environments.
🔹 Modular & Scalable Design: Offers multiple configurations and seamless integration with other finishing systems, providing customized workflow automation.
🔹 Precision Cutting & Stacking: Handles complex applications with high accuracy, producing loose-leaf sheet stacks in 1-up to 4-up impositions.
🔹 Versatile Media Handling: Effortlessly processes coated and uncoated standard papers, ranging from lightweight 40 gsm to heavy stock up to 300 gsm.
🔹 Reliable & Consistent Output: Engineered for precise alignment, tracking, and stack uniformity in demanding production environments.
Specifications
| Specification | Details |
|---|---|
| Max Roll Diameter | Up to 54″ |
| Web Width | Up to 22.5″ |
| Operation Speed | 33 to 590 fpm |
| Paper Weights | 40 to 300 gsm |
| Cut Length | 5.5″ to 30″ |
| Sheet Width (1-up) | 6.5″ to 22.5″ |
| Sheet Width (2-up) | 4″ to 11.25″ |
| Sheet Width (3-up) | 4″ to 7.5″ |
| Sheet Width (4-up) | 4″ to 5.625″ |
Optional Add-Ons & Enhancements
🟦 DynaCut: Enables real-time adjustments to cut lengths without production stops.

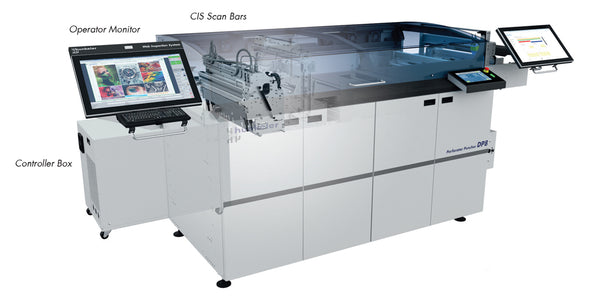

🟦 Tracking System: Provides precise monitoring and control for consistent, accurate job execution.

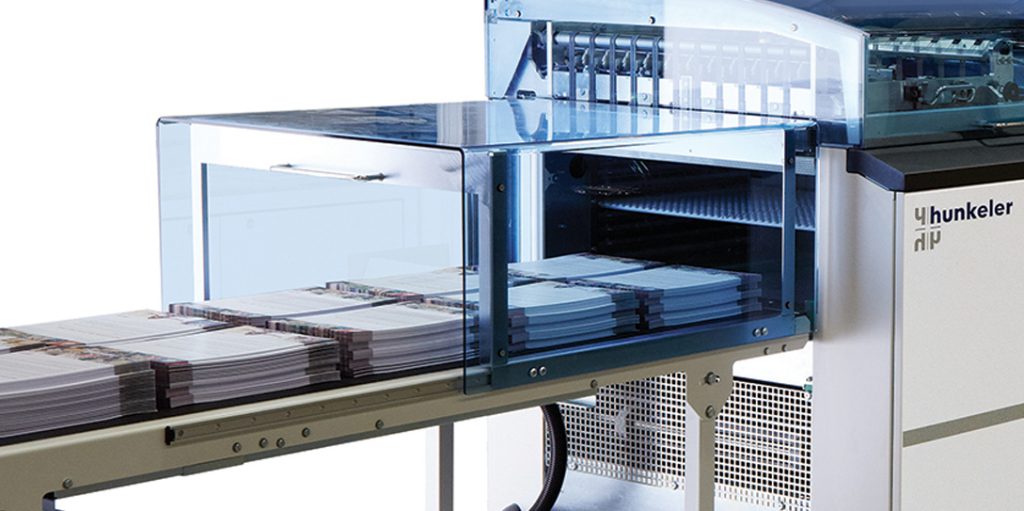

🟦 Stacker LS8-30: High-capacity stacking unit for large-volume workflows.
🟦 Web Merger WM8: Enables center cutting, merging, and stacking for flexible impositioning.
🟦 Web Buffer WB8: Smooths feeding and accumulates web to optimize production flow.

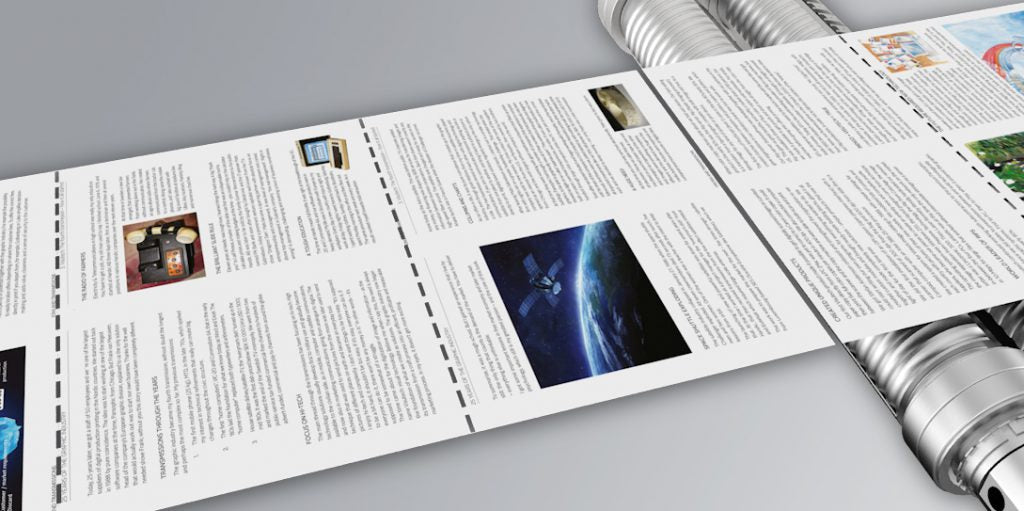

🟦 Dynamic Processor DP8: Offers inline perforating, scoring, and punching for enhanced finishing capabilities.
Applications
- Brochures & Marketing Materials
- Annual Reports & Documentation
- Direct Mail & Newsletters
- Commercial Print Applications
- High-Volume Sheet Finishing
