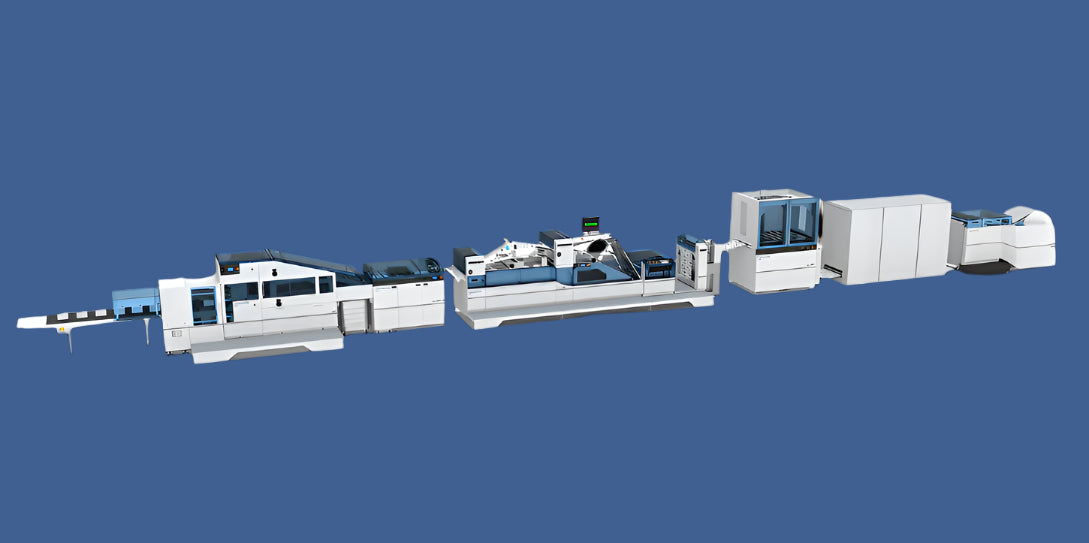

The Hunkeler PF7 Plowfolder Solution is a state-of-the-art system for high-speed, economical production of digitally printed book blocks. Featuring advanced unwinding, cutting, folding, and stacking capabilities, this solution ensures precise, consistent, and high-quality results for publishing, education, and commercial printing applications.
See a case study on this system here.
Key Features
π· High-Speed Operation: Runs at speeds from 66 to 656 feet per minute (fpm) for rapid throughput.
π· Wide Web Width Range: Handles web widths up to 30 inches, ensuring flexibility for different formats.
π· Versatile Paper Weights: Supports paper weights from 60 to 150 gsm, ideal for various media types.
π· Precise Cutting and Stacking: Processes cut lengths from 8 inches to 14 inches for accurate results.

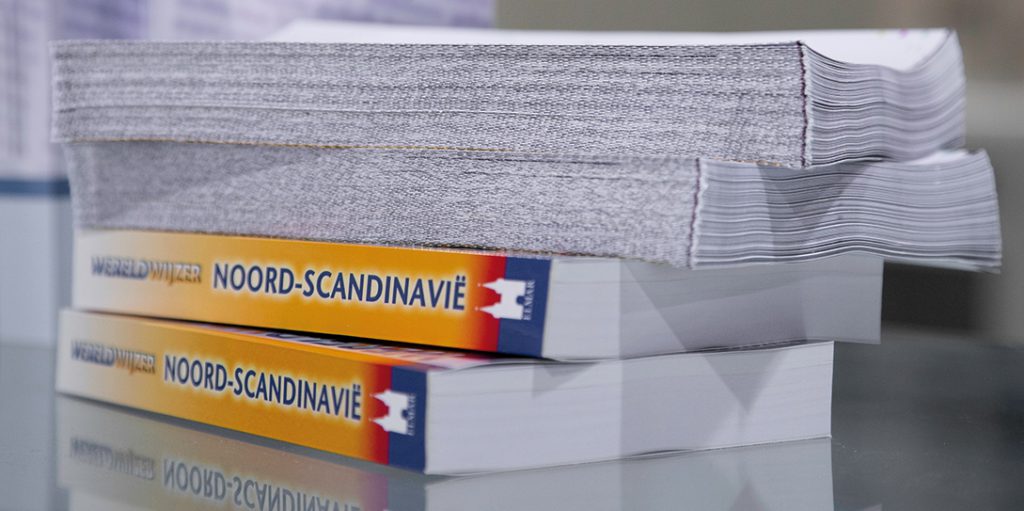

π· Large Book Block Thickness: Produces book blocks up to 50 mm thick, accommodating diverse book types.

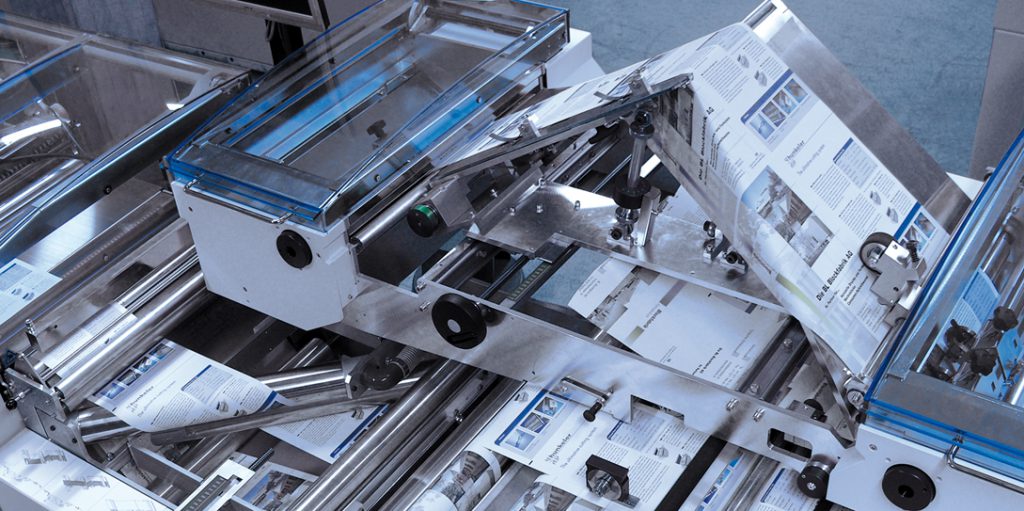

π· Dynamic Processing: One to two plow folds enable efficient folding for multiple signature formats.
π· Flexible Delivery Options: Outputs 4-, 6-, and 8-page signatures to meet varying production needs.
Specifications
Specification | Details |
---|---|
Maximum Roll Diameter | 50 inches |
Web Width | Up to 30 inches |
Operation Speed | 66 to 656 fpm |
Paper Weights | 60 to 150 gsm |
Cut Length | 8 inches to 14 inches |
Book Block Thickness | Up to 50 mm |
Folds | One to two plow folds |
Delivery | 4/6/8-page signatures |
Options
β Dynamic Processor: Adds capabilities for perforating, scoring, and punching.
β Book Sorting Module (BSM): Supports FIFO delivery for up to 2,000 books or stacks per hour.
β Web Buffer: Maintains tension for smooth feeding and production.
β Media Changer RX8: Enables automatic roll splicing for continuous operation.

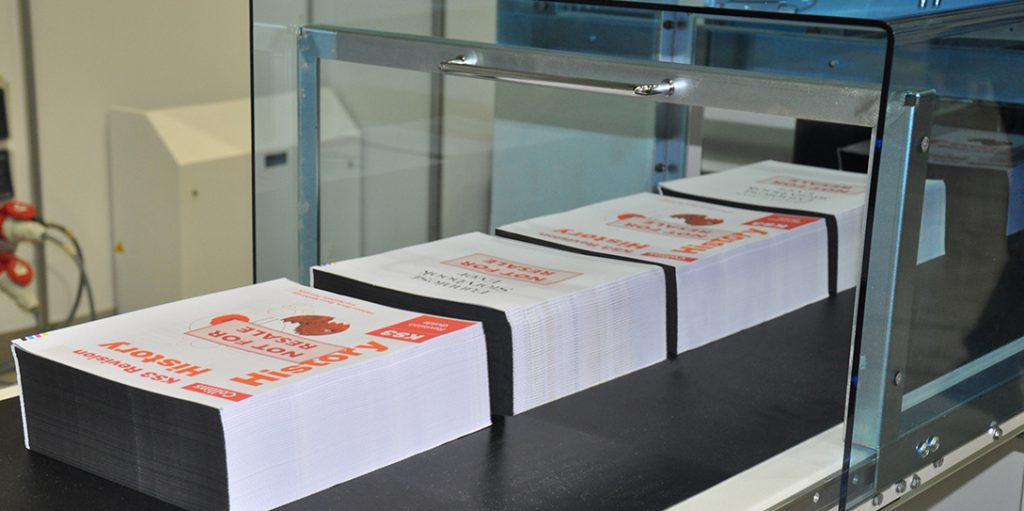

β Shingle Belt Delivery: Ensures efficient output handling and sorting.
Optimized Applications
π Perfect-Bound Books β Produces high-quality bound books for publishing, education, and commercial printing.
π Catalogs and Manuals β Streamlines the production of durable, professional-grade documents.
π¨ Print-on-Demand β Efficient for short-run, customized book production.
π¦ Direct Mail Booklets β Creates neatly folded and pre-glued booklets for direct mail campaigns.
