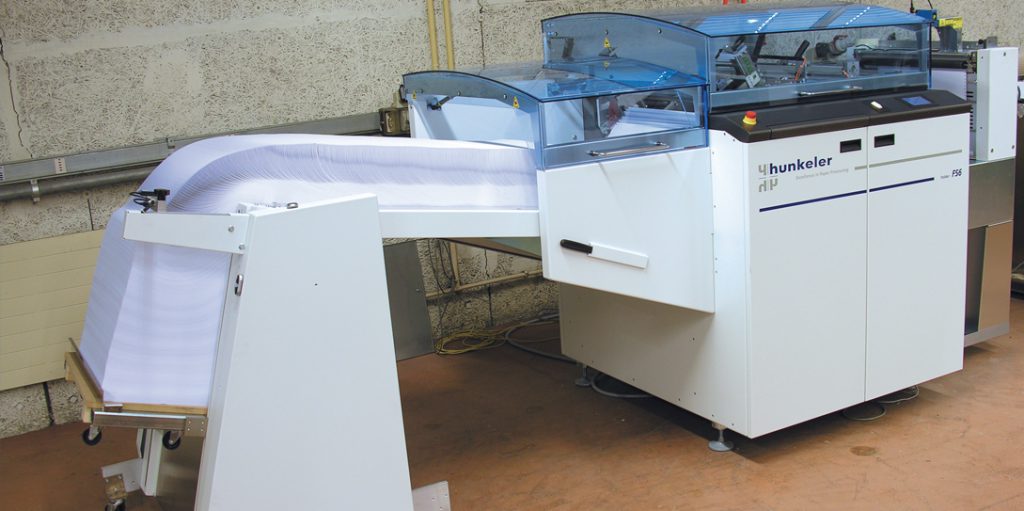

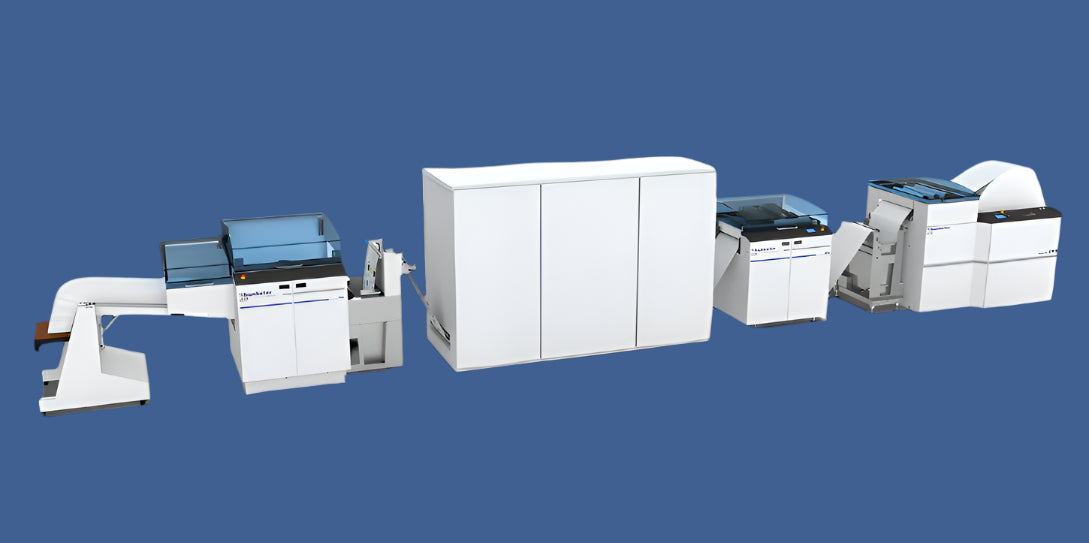

The Roll-to-Fan Fold Gen8 is a finishing line that fan folds continuous printed rolls with precise, repeatable folds. It combines the Hunkeler UW8 Unwinder, CS8 Cutter, and FS6 Fanfolder, and it is built for transactional documents, direct mail, and other high-volume work.
Key features
- Speed: runs from 33 to 500 feet per minute (fpm) for high-volume production.
- Web width: accepts web widths from 8 inches to 20.5 inches, which covers a range of document formats.
- Paper weights: handles 56 to 160 gsm, suitable for a variety of media types.
- Folding height: folds between 7 inches and 17 inches for different fold patterns.
- Stack capacity: stacks up to 39 inches, which cuts down on handling after the run.
- Dynamic processing: the Dynamic Processor DP8 perforates, scores, and punches in one module.
Specifications
| Specification | Details |
|---|---|
| Maximum Roll Diameter | 54 inches |
| Web Width | 8 inches to 20.5 inches |
| Operation Speed | 33 to 500 feet per minute |
| Paper Weights | 56 to 160 gsm |
| Folding Height | 7 inches to 17 inches |
| Stack Height | 39 inches |
Optional features
- Web Inspection WI8: detects defects to protect output quality.
- Web Cleaner PEM and iPEM: keeps the web clean so the rest of the line runs as it should.
- Center Cut and Edge Trim: precise center cutting and edge trimming.
- Shingle Belt Delivery: easier handling of folded product.

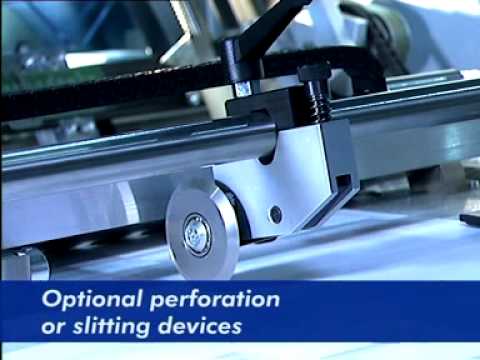

- Dynamic Processor DP8: perforating, scoring, and punching.
Applications
- Transactional documents, including confidential and sensitive material.
- Direct mail: produces neatly folded pieces for mail campaigns.
- Print-on-demand: production of customizable print projects.
- Packaging inserts: produces accurately folded inserts for product packaging.
