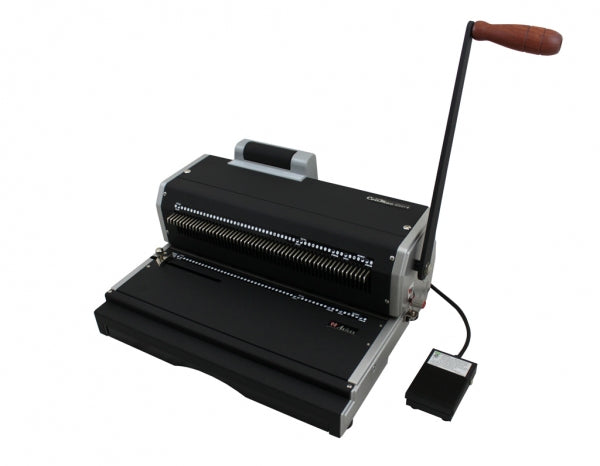

Akiles CoilMac-ER+ Coil Binding Machine

The Akiles CoilMac-ER+ combines a manual coil punch with a foot-pedal electric coil inserter. It is built for print shops, schools, and in-plant departments that want punching and insertion at one workstation.

The Plus model creates a 4 x 5 mm oval hole on a 4:1 pitch. All 54 punch pins can be disengaged, which helps prevent partial holes on shorter sheet sizes. The open 13-inch throat also supports longer documents in a two-step punch.

Key features

• Manual punching with electric coil insertion
• Punches up to 20 sheets of 20 lb paper per lift
• 54 fully disengageable punch pins
• 4:1 pitch with 4 x 5 mm oval holes
• Electric insertion for coils up to 7/8 inch
• Manual insertion support for coils up to 2 inches
• Side margin and punch-depth controls
• Foot-pedal control and crimping pliers included

Specifications

• Maximum punch length: 13 inches
• Hard-cover punch capacity: up to 2.6 mm
• Number of holes: 54
• Weight: 38 lb
• Manufacturer warranty: 1 year

Before ordering

Choose this model when the oval-hole Plus pattern is required. If your existing workflow uses round 4 mm holes, confirm the punch pattern before ordering.

Lead time: Ships in 3 to 5 business days.

Mid-State Litho can help confirm the punch pattern, coil range, supplies, and service requirements. Equipment financing is available for qualified businesses.
