MBM ES 8500 Pressure Sealer
Authorized dealer for the MBM ES 8500 pressure sealer, built by Paitec. Up to 9,000 forms per hour, 130,000 per month. Michigan sales, service, and financing.
Freight items can be purchased online; final delivery details may be confirmed before shipment.
Tax-exempt? Apply once, check out tax-freeAsk a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications

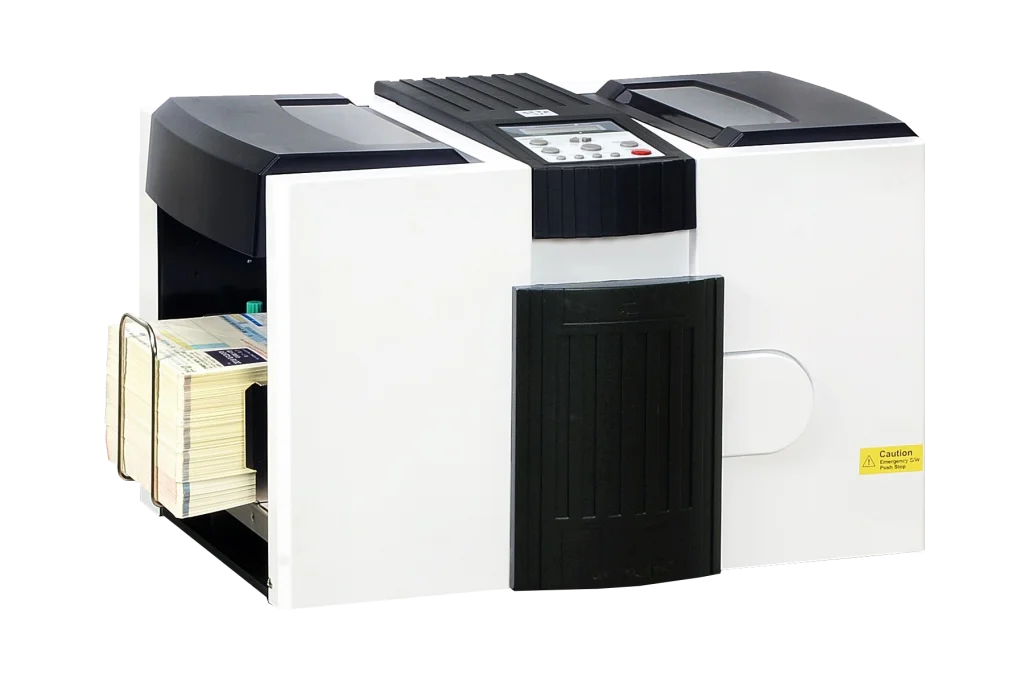

ES8500 Tabletop Pressure Sealer
The ES8500 is a high-speed tabletop pressure sealer designed for secure, efficient document processing. Built for mid-volume operations, it delivers consistent, error-resistant sealing with double-feed detection, jam-recovery controls, and flexible stacking options.
Key Features
- Processes up to 9,000 forms per hour for efficient throughput
- 700-form feeder capacity to reduce reload frequency

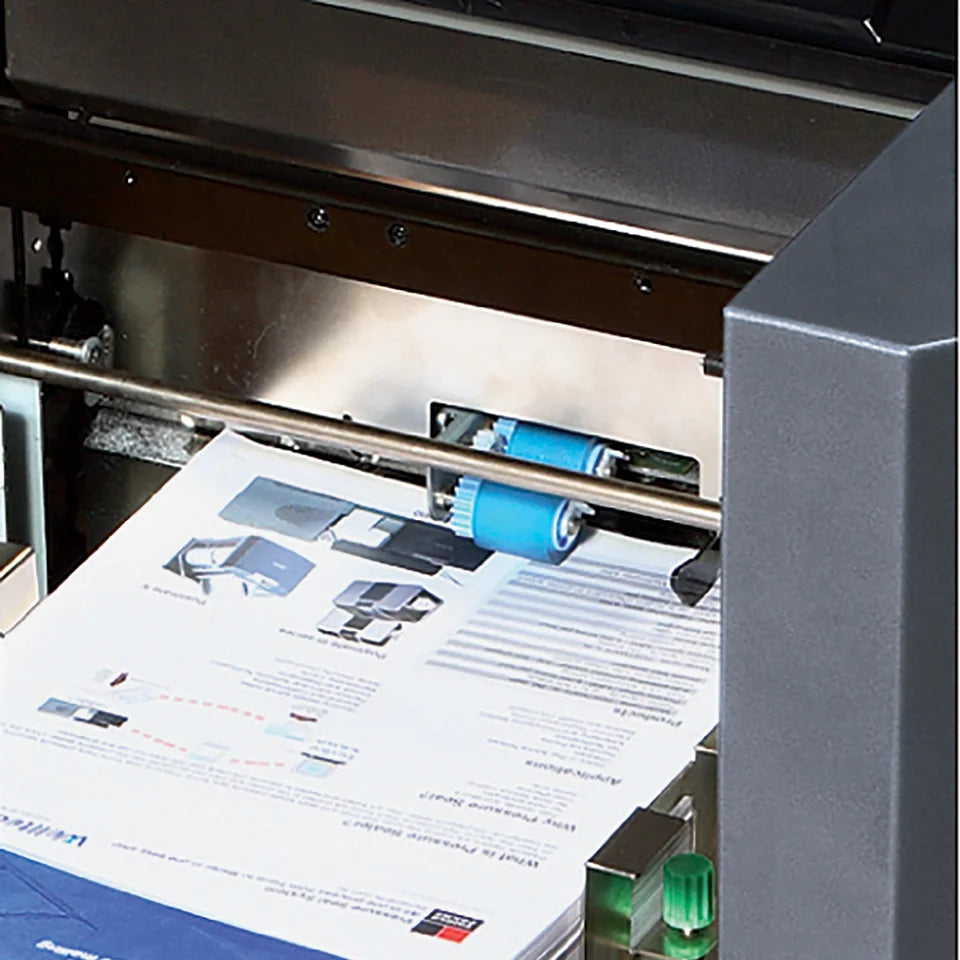

- Reverse Friction Roller (RFR) system to detect and correct double feeds
- Double feed detection that stops operation when a misfeed is detected

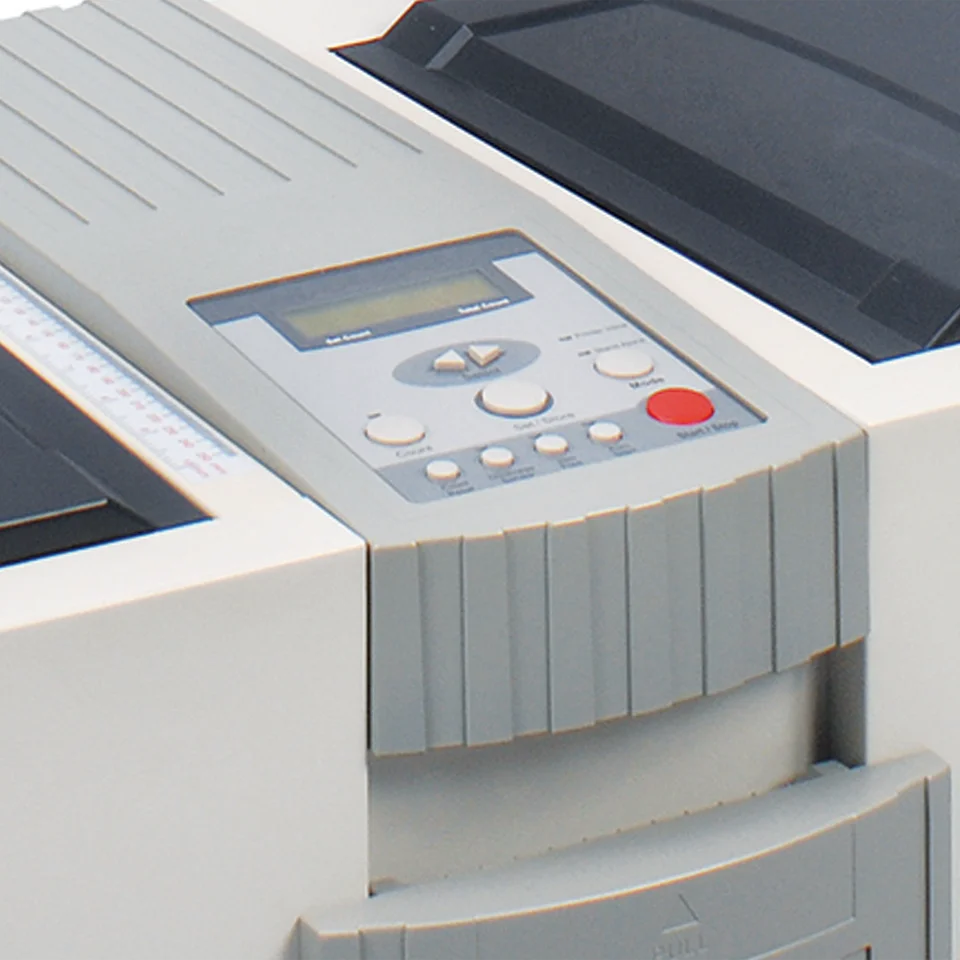

- User-friendly control panel with auto stop, auto restart, batch counter, and electronic thickness detection
- Jam-Free function with error messaging and a roller-reverse button for quick removal
- Built-in 350-sheet catch tray for neat, accessible output
- Supports V Fold, C Fold, Z Fold, Double Parallel, and Window Fold
- Paper size support for A4, Letter, and Legal
Why It Matters
The ES8500 helps teams process pressure-seal documents quickly while reducing rework caused by double feeds and jams. With high feeder capacity, clear controls, and flexible output handling, it supports steady production and clean, organized stacks.
Specifications
| Speed | Up to 9,000 forms per hour |
|---|---|
| Maximum Monthly Duty Cycle | 130,000 forms per month |
| Feeder Capacity | 700 pressure seal forms |
| Form Size | Up to 14” depth & 9” width |
| Paper Size | A4, Letter, Legal |
| Paper Weight | 20 - 28 lbs |
| Folds Supported | V Fold, C Fold, Z Fold, Double Parallel, Window Fold |
| Built-In Catch Tray | 350 sheets |
| Optional Conveyor/Stacker | Holds up to 650 processed forms |
| Dimensions | 24” × 17” × 15” |
| Electrical Requirements | 110V, 60Hz |
| Shipping Weight | 115 lbs |
Available Options

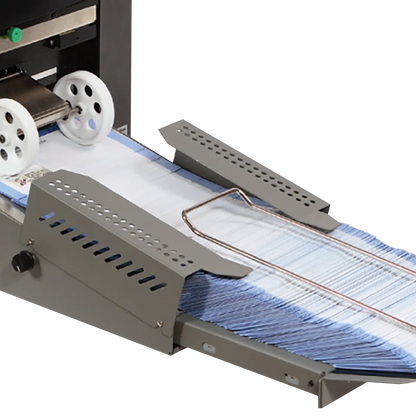

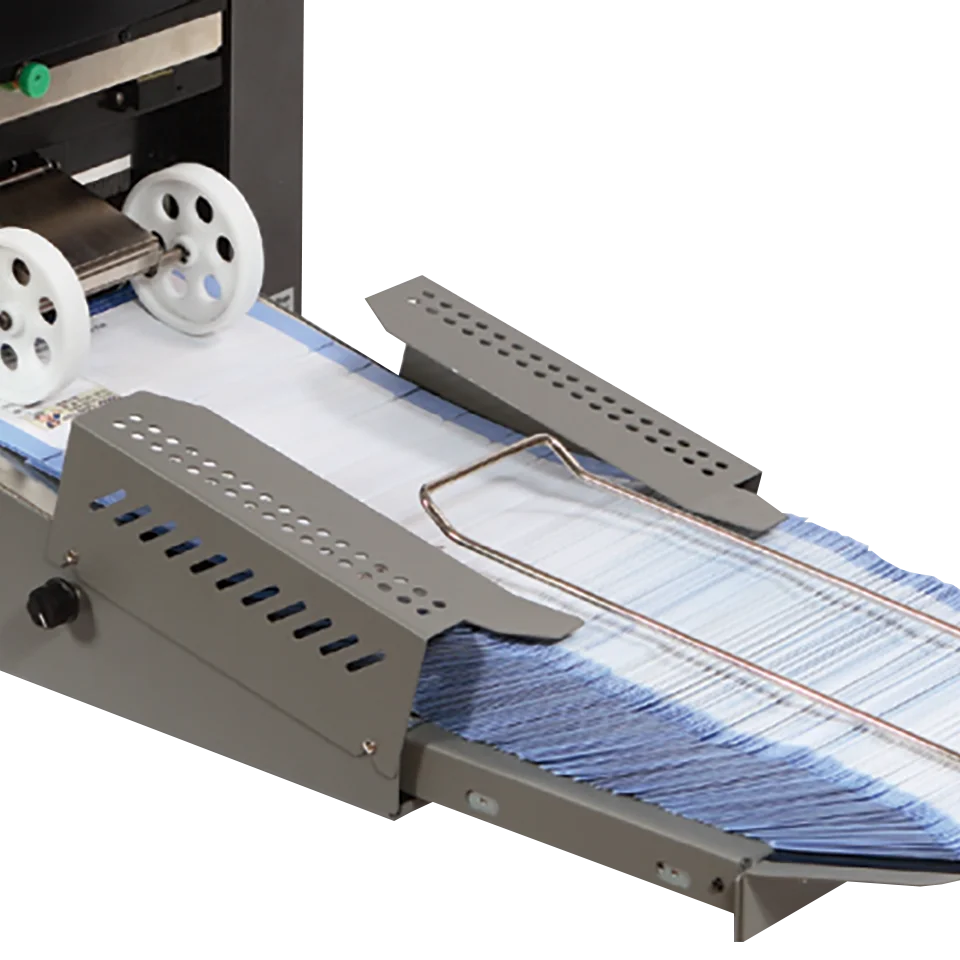

- Optional auto-extending conveyor/vertical stacker (up to 650 processed forms)
Benefits
- Supports fast processing for mid-volume document workloads
- Reduces misfeeds with double-feed detection and corrective feeding control
- Helps minimize downtime with jam-recovery features and clear error messaging
- Improves output organization with flexible stacking and catch-tray handling
- Fits tabletop environments while maintaining high throughput capability
Applications
- Pressure-seal payroll forms and confidential HR documents
- Tax form processing for firms and internal finance departments
- High-volume mail preparation for business offices and mailing operations
- Administrative document runs requiring consistent folds and organized stacks
About Paitec and MBM
The ES 8500 is manufactured by Paitec and distributed under the MBM name. It is a tabletop pressure sealer for pressure-seal forms, the one-piece mailers used for checks, invoices, and notices. Mid-State Litho is an authorized dealer and installs and services the Paitec ES line. Browse the full range of pressure sealers.
Choosing among Paitec ES pressure sealers
The Paitec ES line steps up by volume. The ES 2500 fits low-volume mailrooms, the ES 5500 handles mid-volume work, and the ES 8500 is the high-volume model at up to 9,000 forms per hour and 130,000 per month. If you also need integrity or inserting features rather than straight pressure sealing, compare the IM 8500. For a desktop footprint, look at the MX17000, and for a Formax AutoSeal alternative see the FD 2200-10. Size the machine to your monthly form count and your peak day, not the average.
Why buy from Mid-State Litho
Mid-State Litho has sold and serviced mailroom and finishing equipment since 1984. The ES 8500 drop-ships with free freight to the contiguous US, and our factory-trained technicians cover Michigan and the Great Lakes for setup and service. Financing and leasing are available if capital approval is easier as a monthly number. Call for a demo on your own forms.
Frequently asked questions
How many forms per hour does the ES 8500 process?
Up to 9,000 forms per hour.
What is the monthly duty cycle?
Up to 130,000 forms per month, with a 700-form feeder.
What form sizes does it handle?
Pressure-seal forms up to 14 inch depth and 9 inch width.
How is the ES 8500 different from the ES 5500?
The ES 8500 is the high-volume model in the Paitec ES line. The ES 5500 and ES 2500 handle lower volumes. Match the model to your forms-per-month.
Does Mid-State Litho install and service pressure sealers?
Yes. Mid-State Litho is an authorized dealer, drop-ships the ES 8500 with free freight to the contiguous US, and supports it with factory-trained service.
We deliver it, install it, train your team and keep it running.
This is not a drop-ship. Our factory-trained technicians install on site, train your operators, and back it with same-day and next-day service across Michigan and the Great Lakes.
Install & train
On-site setup and operator training included.
Same / next-day service
Fast response across the Great Lakes.
Precision machining
Replacement parts fabricated in-house.
Financing
Lease and purchase options available.
