Triumph 5560 Hydraulic Paper Cutter (21.6")

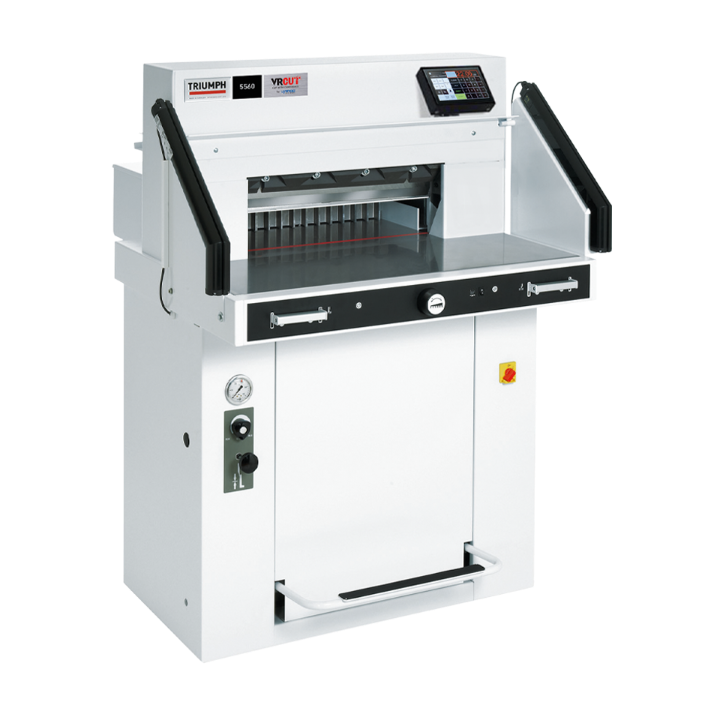

The MBM Triumph 5560 is a 21-5/8" hydraulic guillotine paper cutter built by Krug & Priester in Balingen, Germany, the manufacturer behind the Triumph and IDEAL cutting lines, and distributed in the U.S. by MBM Corporation. A hydraulic clamp and hydraulic knife drive deliver adjustable clamping force from 1,900 to 3,800 psi, while the VRCUT-ready programmable control stores 99 jobs with up to 99 steps each for repeatable production cutting. With a 3.75" clamp opening, an infrared safety curtain, and all-metal construction, the 5560 is the mid-size workhorse of the Triumph hydraulic family for print shops, in-plant production, and commercial finishing departments. Mid-State Litho is an authorized MBM dealer and sells the Triumph 5560 with free freight delivery, financing options, and Michigan-based service and knife sharpening for shops across the Great Lakes region.
Key Features
- Swing Cut blade made from high-speed German steel for clean, precise cuts

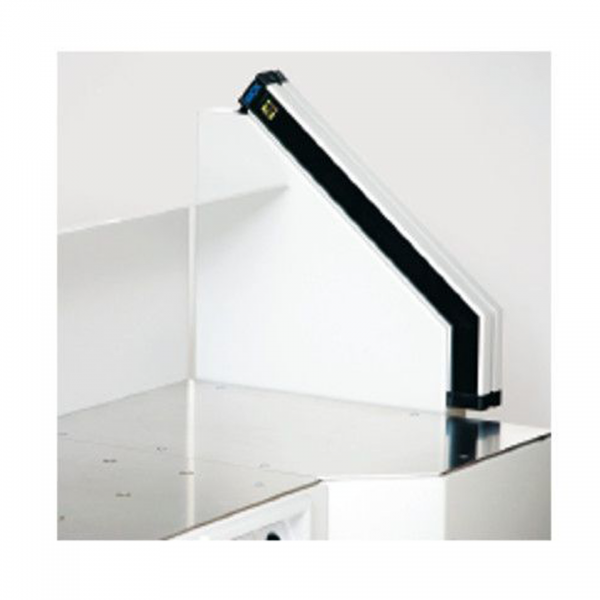

- IR safety curtain stops operation if objects enter the cutting zone
- Programmable controller with 99 jobs and up to 99 steps per job

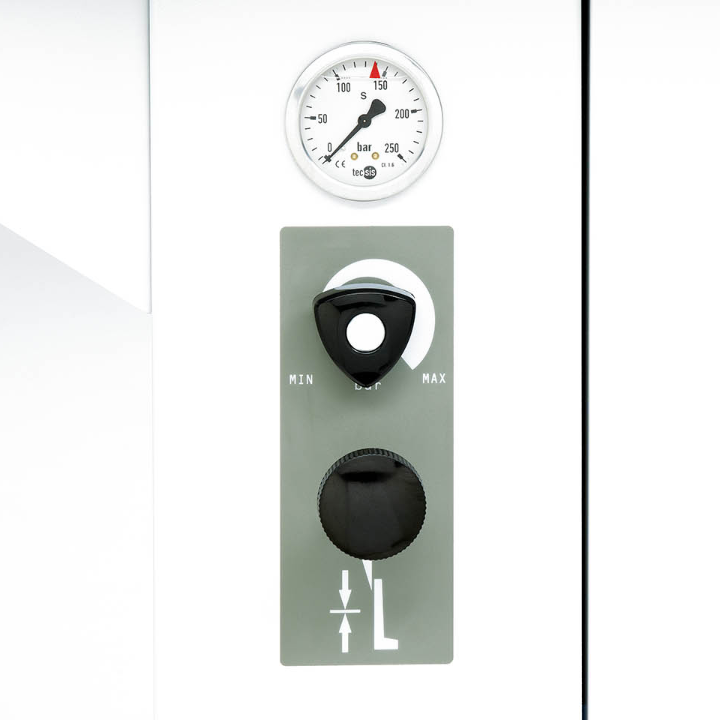

- Adjustable hydraulic clamping from 1,900-3,800 psi for secure material hold

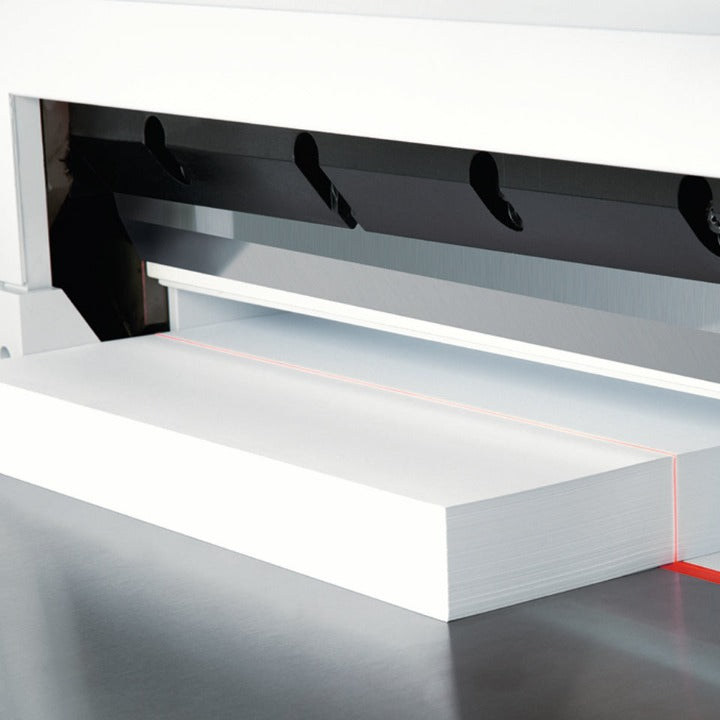

- LED optical cut line for accurate alignment and repeatability
- Electronic hand wheel with infinitely variable speed for fine back gauge positioning

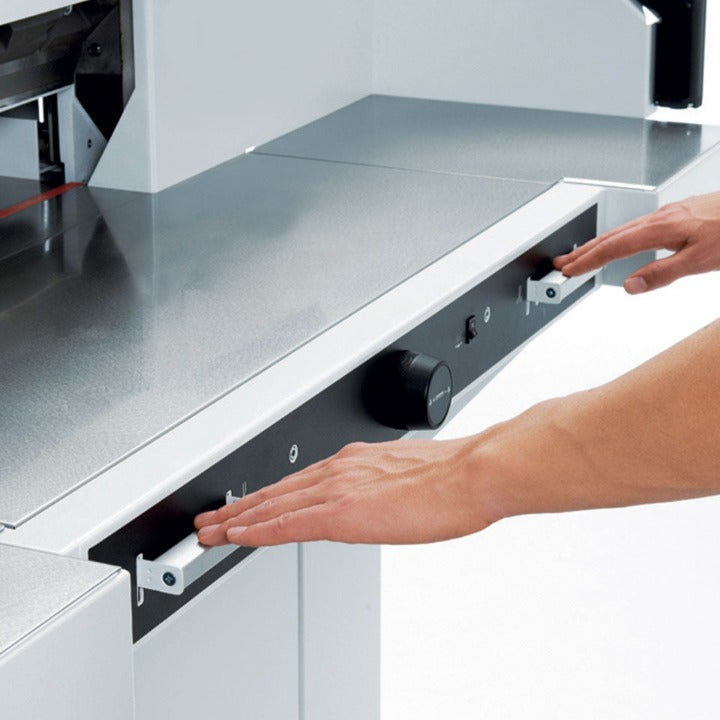

- EASY CUT activation bars with two-hand operation and independent clamp/blade control
- All-metal construction with steel frame, stainless work surface, and solid blade carrier

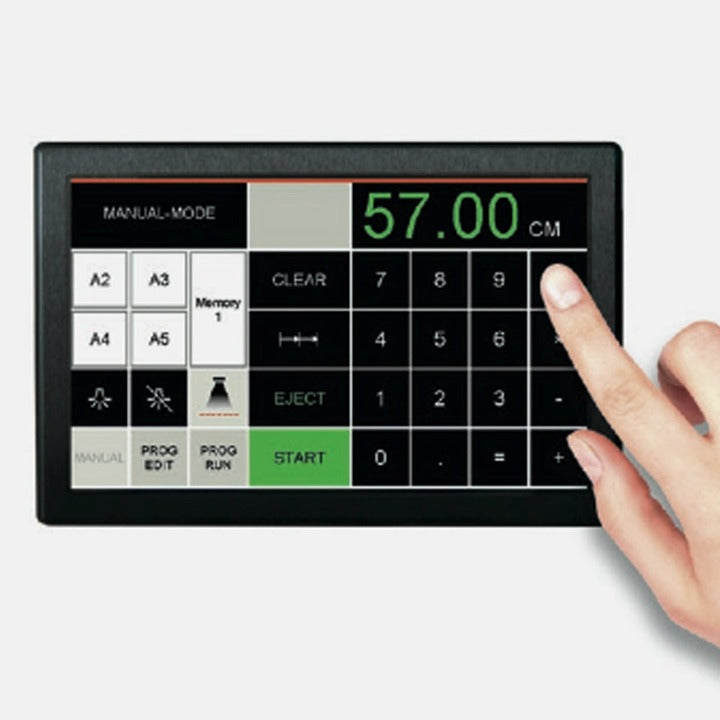

- Self-diagnostics and digital touchpad for error display and fast job recall
Why It Matters
In high-volume production, inconsistent clamping and manual positioning lead to waste and downtime. The Triumph 5560 combines programmable positioning with hydraulic power to deliver reliable, repeatable cuts while maintaining strong safety protections for daily operation.
Triumph 5560 vs 5560 Package vs 5560 LT
This page covers the Triumph 5560 hydraulic cutter in two configurations. The Standard build is the machine alone. The Package option adds side tables, an extra knife, and cutting sticks, a sensible bundle if you are setting up a new cutting department and want spares on the shelf from day one.
The Triumph 5560 LT is a separate machine with its own listing: it pairs the same 21-5/8" hydraulic cutter with a VRCUT air table for fully programmable, air-assisted stock handling. If your work is dominated by long programmed runs of heavy stock, look at the LT. If you need hydraulic power and programmable accuracy without the air table, the 5560 on this page is the right fit.
Why Buy the Triumph 5560 from Mid-State Litho
Mid-State Litho has supplied and serviced print finishing equipment since 1984 and is an authorized MBM dealer. The Triumph 5560 ships with free freight delivery, and our Michigan-based technicians support installation, operator training, ongoing service, and replacement knives and knife sharpening. Financing is available on request, and our team can spec the right cutter against your sheet sizes and volumes before you buy.
Comparing models? Browse all hydraulic guillotine paper cutters and our full paper cutter lineup, or step across to electric and automatic paper cutters. Within the Triumph line, the Triumph 5260 is the 20-3/8" down-tier sibling and the Triumph 7260 is the 28" up-tier programmable cutter.
Applications
Triumph 5560 Frequently Asked Questions
What size paper can the Triumph 5560 cut?
The Triumph 5560 has a 21-5/8" (549 mm) cutting width, with a maximum cutting height of 3.7" (3.6" with the false clamp) and a minimum narrow cut of 1.2".
Is the Triumph 5560 hydraulic or programmable?
Both. The 5560 uses a hydraulic clamp and hydraulic knife drive, and its VRCUT-ready programmable control stores 99 jobs with up to 99 steps per job. The fully programmable air-table build is the separate Triumph 5560 LT.
What is the clamp opening on the Triumph 5560?
The clamp opening is 3.75", with adjustable hydraulic clamping pressure from 1,900 to 3,800 psi.
What is the difference between the 5560 and the 5560 LT?
The 5560 LT adds the VRCUT air table for air-assisted stock handling on programmed runs. It is sold on its own product page. The 5560 on this page is the hydraulic cutter without the air table.
Does Mid-State Litho deliver and service the Triumph 5560?
Yes. The Triumph 5560 ships with free freight delivery, and Mid-State Litho provides Michigan-based service, operator training, knife sharpening, and replacement knives across the Great Lakes region.
