MBM Triumph 5260 Paper Cutter (20-3/8")

MBM Triumph 5260 Paper Cutter (20-3/8")

Regular price $16,989.00 USD
Regular price $0.00 USD Sale price $16,989.00 USD
Sale Sold out
Shipping calculated at checkout.
Optional Side Tables

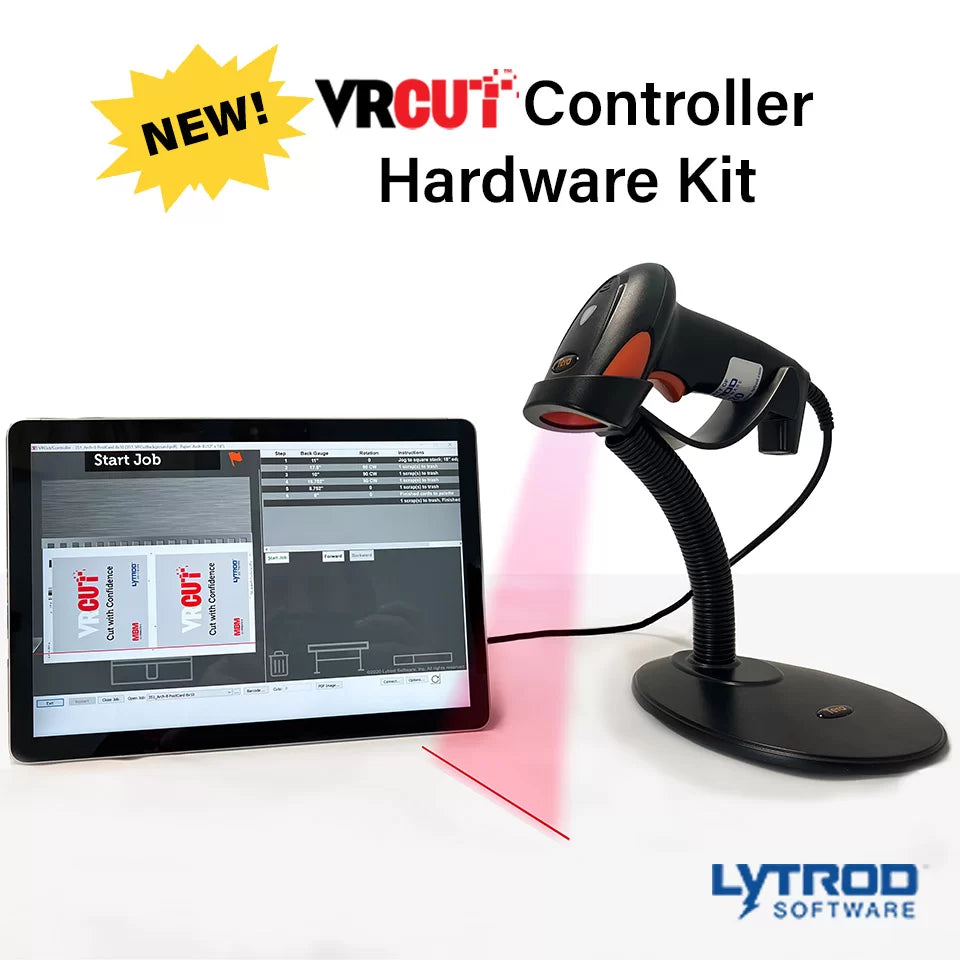

Triumph 5260 20-3/8" Programmable Paper Cutter with VRCUT System Details:

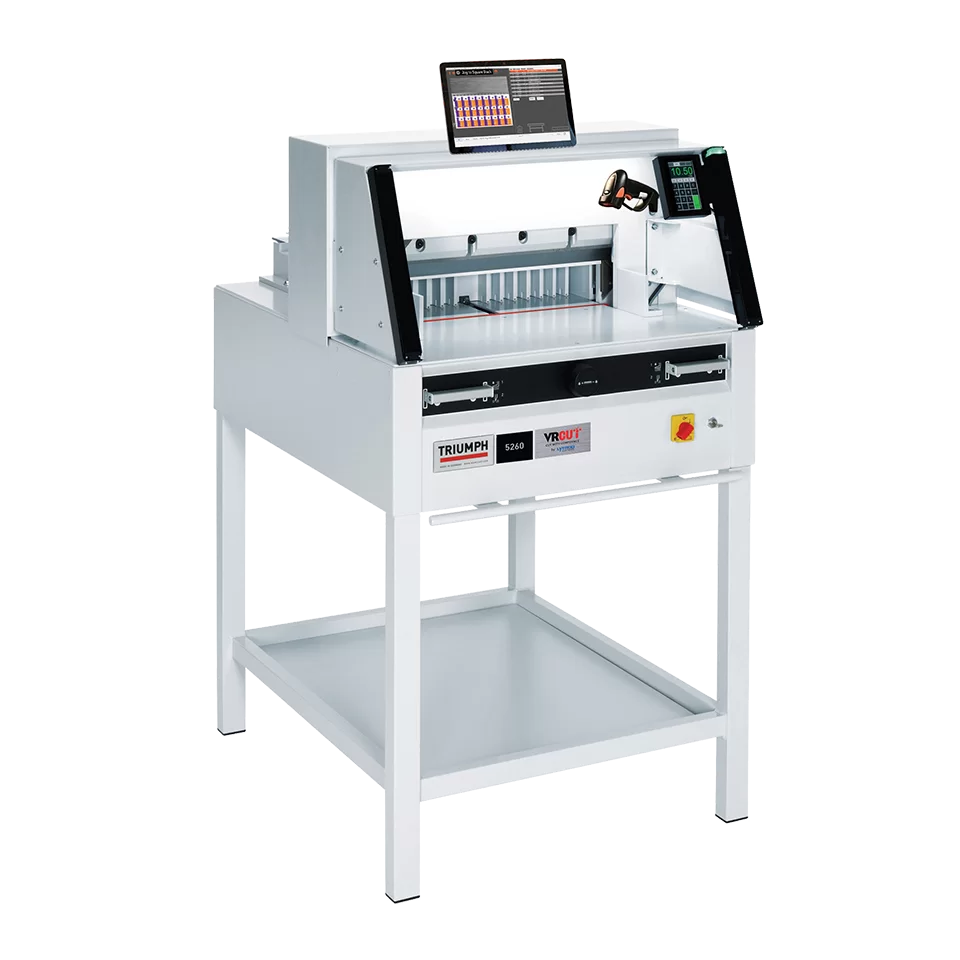

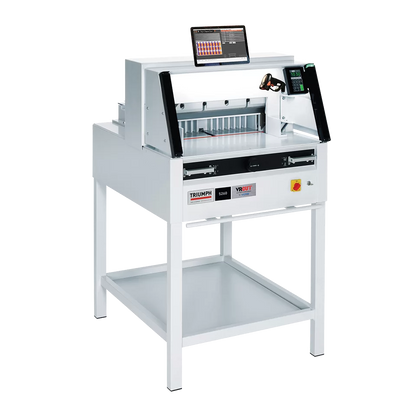

The Triumph 5260 is a 20-3/8" programmable paper cutter with automatic clamp, power back gauge, digital touch pad, and IR safety light beams on front table.

Features:

  • Programmable cutter with automatic clamp
  • Power back gauge

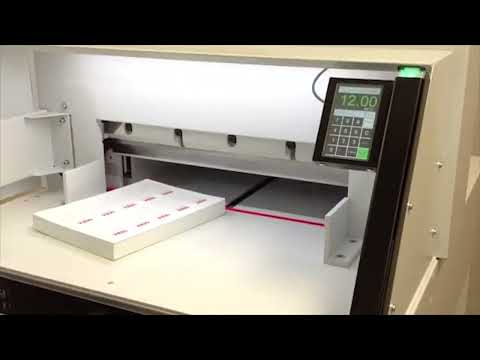

  • Digital Touchpad

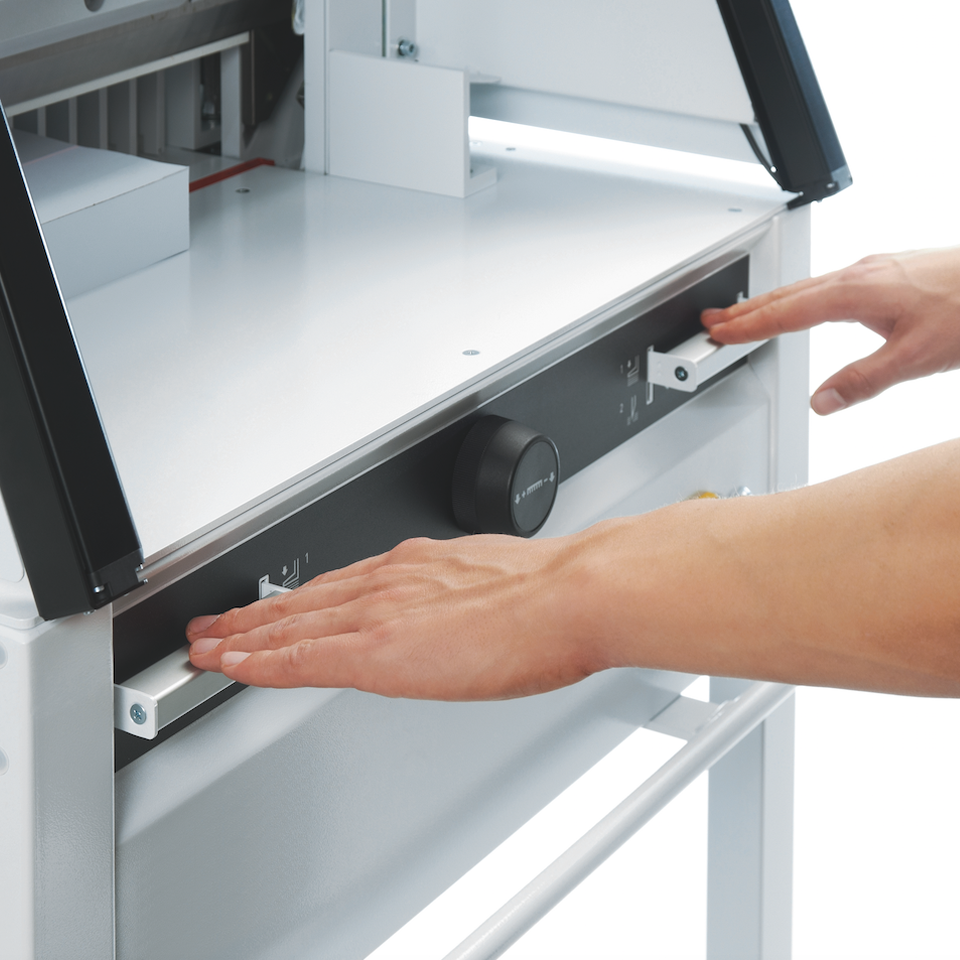

  • Patented easy cut electronic blade activation bars for true two-hand operation
  • Ergonomic, 3" working height
  • Electric blade and clamp drive
  • Electric back gauge drive with touchpad for easy programming

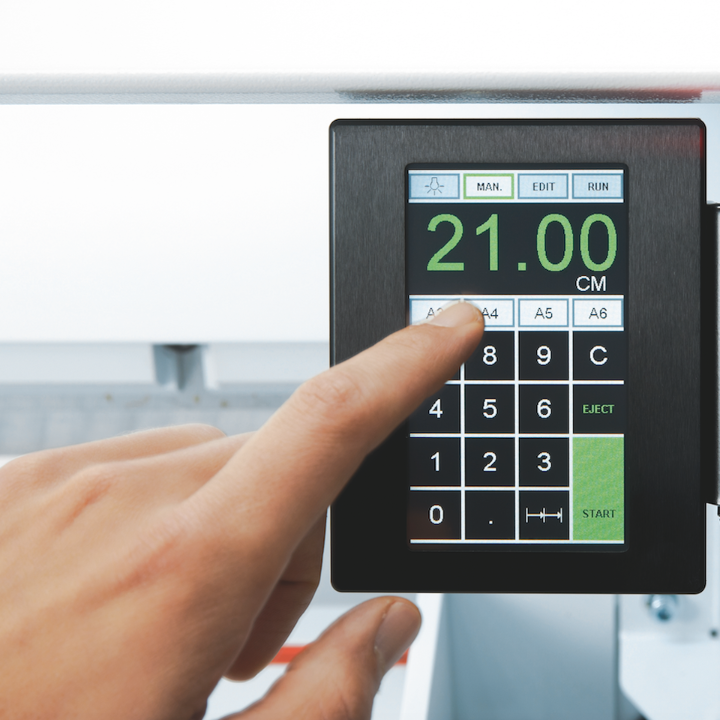

  • Digital measurement display (cm or inches) with multilingual operator guidance, accurate to 1/10 mm or 1/100 inch
  • Stores 99 programs with up to 99 steps in each (up to 15 repeat cuts can be integrated as a single step)
  • Pre-programmed for standard paper sizes. Memory key for repeat cuts
  • Automatic set function for reference measurement and eject function for pushing out paper
  • Self-diagnostic system with error indication on the display
  • Electronic back gauge control with variable speed control for manual back gauge setting

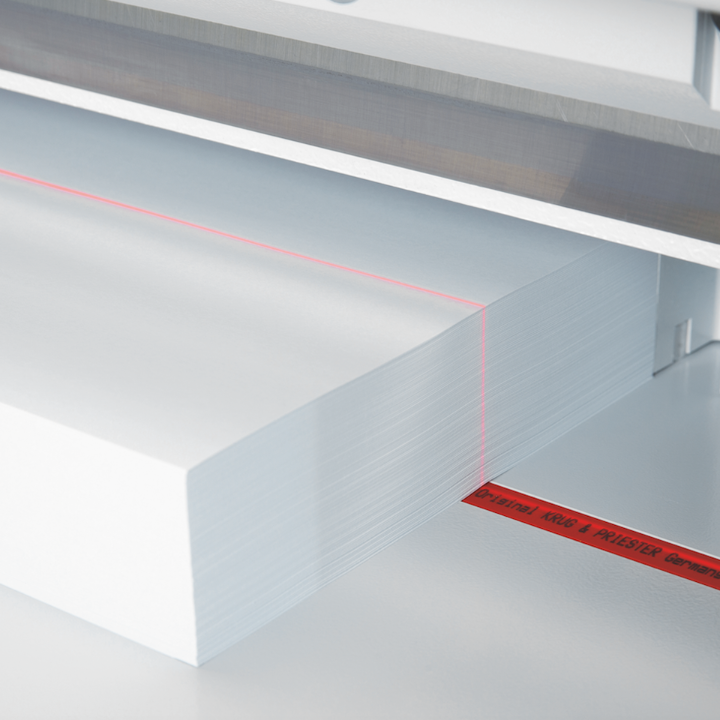

  • Bright, LED optical cutting line
  • 3-step, LED front table illumination
  • Adjustable, spindle guided back gauge with narrow separations and plastic gliders
  • Dual side guides on front and rear tables
  • Solid steel blade carrier and adjustable blade guides
  • All-metal construction
  • Includes stand with storage shelf, easy-access tool holder, and paper blocking tool

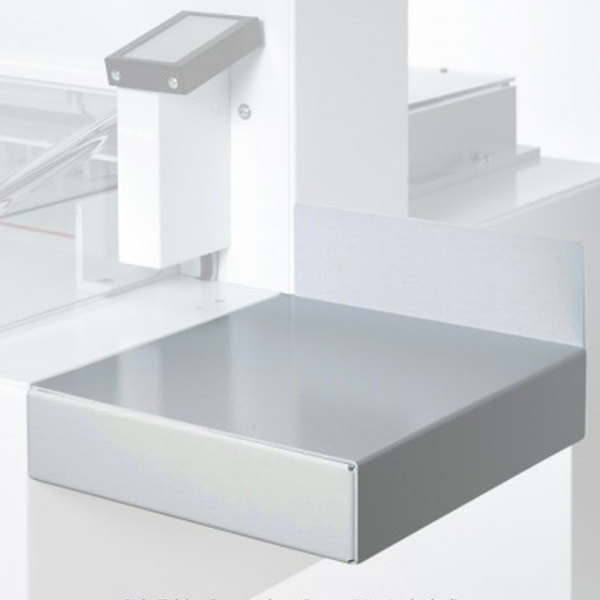

  • Optional side tables increase the work surface
  • UL and C UL approved
  • IR light beam safety curtain on the front table
  • Safety cover on rear table
  • Main switch and safety lock with key 24-volt controls (low voltage)
  • Patented IDEAL safety drive
  • Automatic blade and clamp return from every position
  • Disc brake for instant blade stop
  • Blade changing device covers cutting edge of the blade

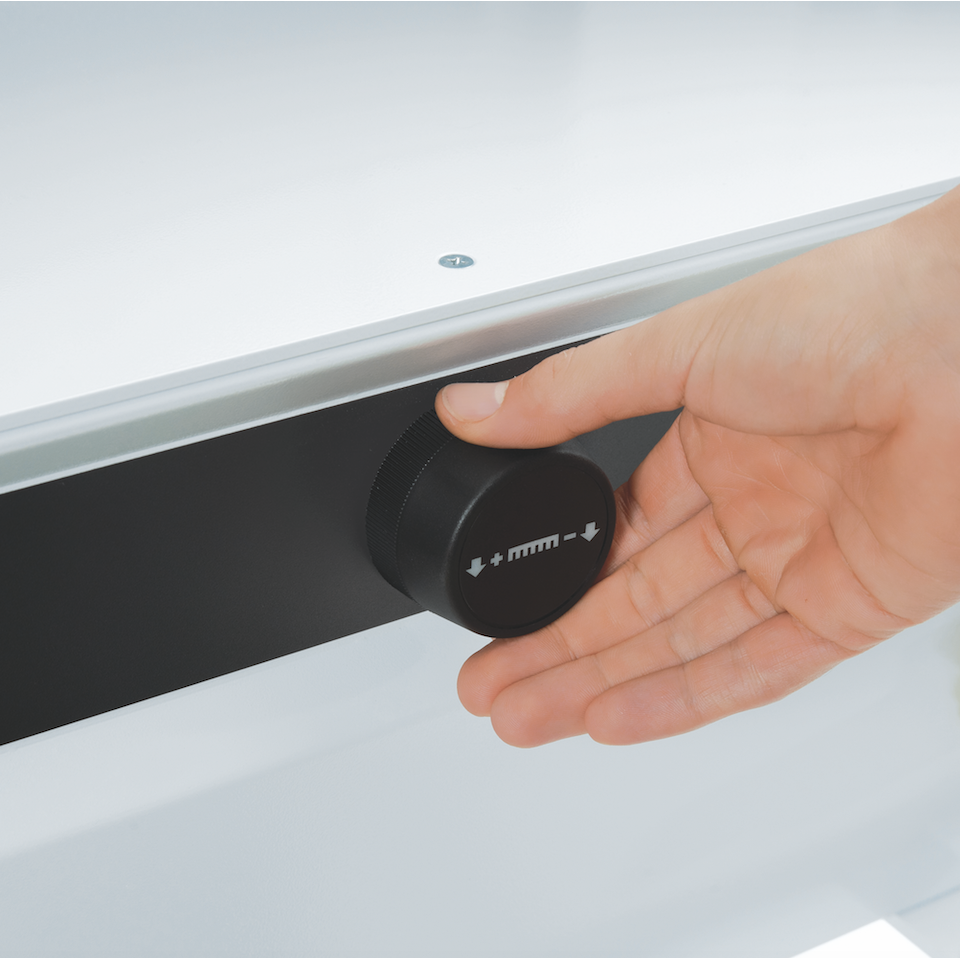

  • Blade depth adjustment from outside of the machine
  • Blade and cutting stick can be changed without removing covers
