Perfecta BP 132 Guillotine Paper Cutter
Perfecta BP 132 Guillotine Paper Cutter
Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:
How to Purchase This Item:
How to Purchase This Item:
- Web: Sales Contact Form
- Call: 1-800-343-4231
- Email: sales@midstatelitho.com
- Text: (810) 238-7370

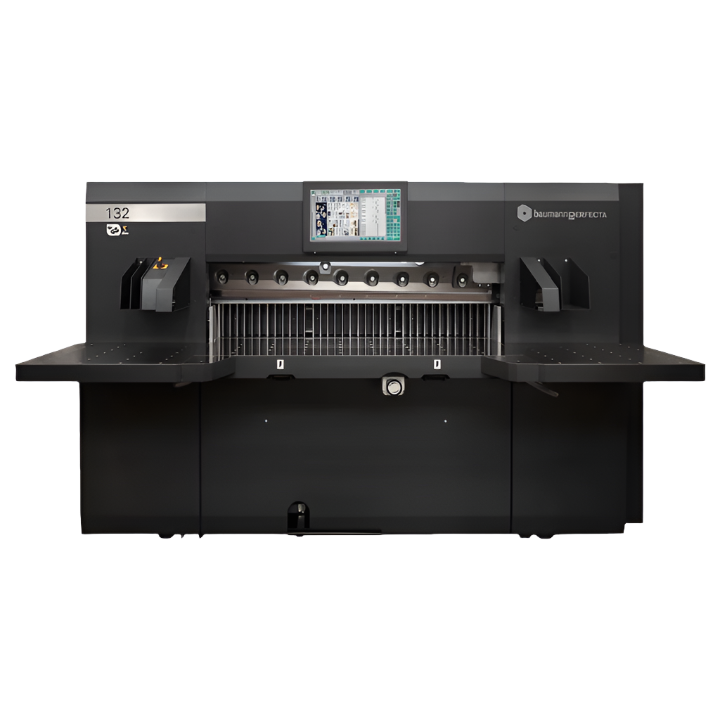

The Perfecta BP 132 is a heavy-duty 52" programmable guillotine paper cutter built for precision, power, and integration into high-volume finishing environments. With a gear-driven knife, servo-controlled backgauge, and 18.5” touchscreen interface, the BP 132 offers outstanding accuracy and speed for commercial printers, bindery operations, and packaging producers. It is fully CIP3/CIP4 compatible for streamlined digital workflows and includes advanced safety features for operator protection.
Key Features
🔷 52" cutting width with 6.5" feed height
🔷 Stainless steel cutting table with air bed and LED cut line
🔷 Gear-driven knife system with 10-year warranty
🔷 Servo-controlled backgauge with digital position control
🔷 18.5" touchscreen display for job management and automation
🔷 Hydraulic clamp with programmable pressure up to 10,115 lbs
🔷 Self-monitoring safety light curtain and two-hand cut controls
🔷 Quick-change knife hoist with tool-free cassette system
🔷 Built-in overload protection and complete rear table guarding
🔷 CIP3/CIP4 ready for prepress integration
Specifications
| Specification | Details |
|---|---|
| Cutting Width | 52" (1320 mm) |
| Max Feed Height | 6.5" (165 mm) |
| Max Uncut Sheet Size | 52" x 52" (1320 x 1320 mm) |
| Air Side Table Size | 24.4" x 32.3" (620 x 820 mm) |
| Minimum Cut (w/o clamp plate) | 0.8" (20 mm) |
| Minimum Cut (with clamp plate) | 3.0" (77 mm) |
| Clamping Force Range | 560 – 10,115 lbs (2.5 – 45 kN) |
| Knife Cycle Rate | Up to 44 cycles per minute |
| Backgauge Speed | Up to 11.8 inches per second |
| Drive Motor Power | 5.36 HP |
| Power Requirements | 220V, 3 Phase, 60Hz, 40A |
| Machine Weight | Approx. 7,550 lbs |
Applications
📄 High-volume cutting of paper, packaging, labels, and board stock
📚 Precision trimming for books, catalogs, and brochures
🏢 Ideal for commercial printers, in-plants, and bindery environments
Benefits
✅ Delivers high-precision cuts with servo-driven backgauge control
✅ Reduces setup time with programmable interface and touchscreen job recall
✅ Built to last with industrial-grade gears and table components
✅ Enhances operator safety through light curtain and two-hand controls
✅ Fully integrated with CIP3/CIP4 workflows for automation
