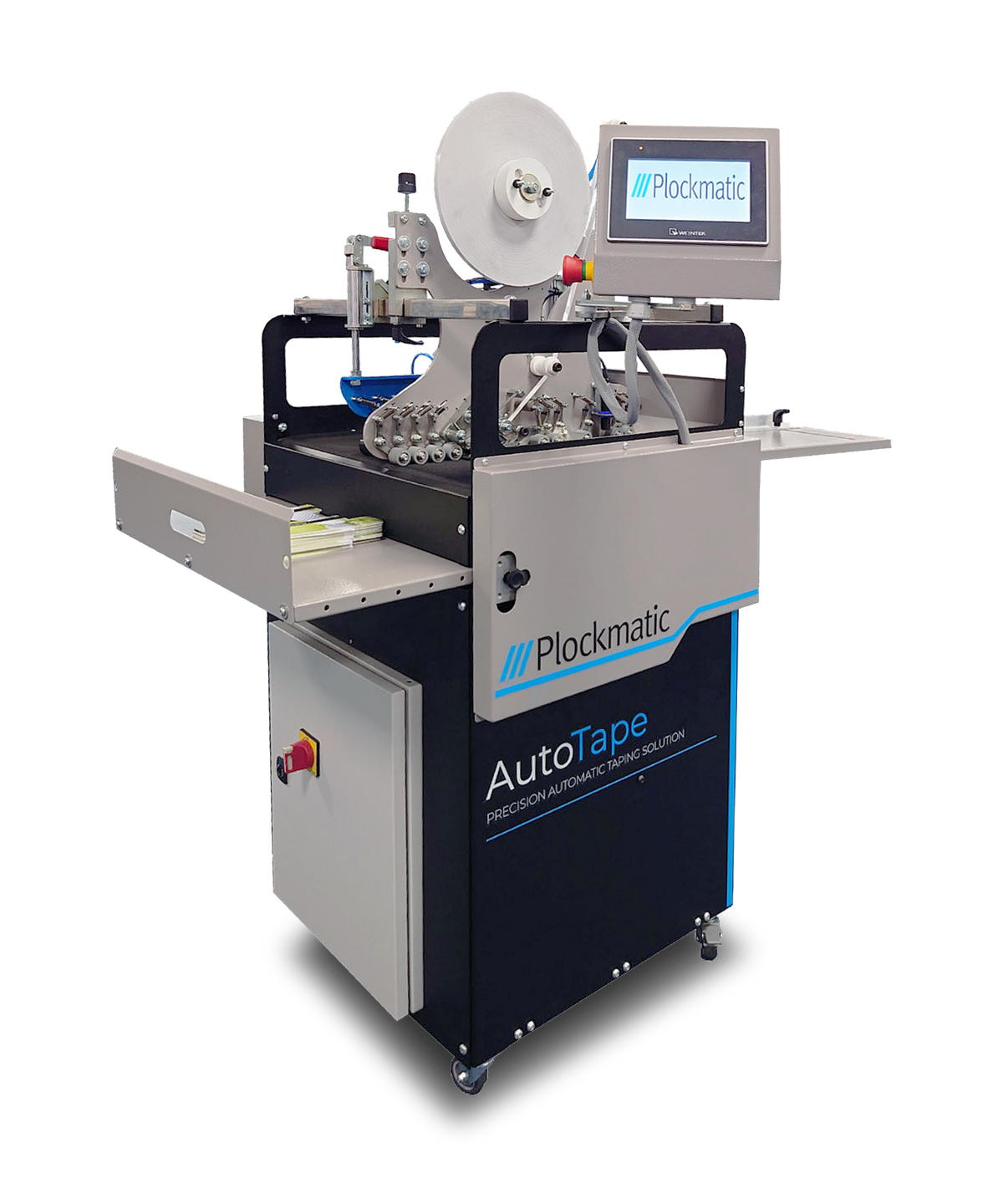

Plockmatic AutoTape double-sided tape applicator
Plockmatic

Plockmatic AutoTape Double-Sided Tape Applicator

Plockmatic AutoTape applies double-sided tape to flat cut cartons, folders and POS. Sheets to 23.6 in., 150 gsm to 5 mm, 9-25 mm tape, 1 to 5 heads, compressor included.

Pricing by quote

We will quote equipment price, freight to your ZIP, and any install or service needs.

Tax-exempt? Apply once, check out tax-free
Parcel shippingShips by ground carrier.
Talk to a finishing expertReal specialists by phone.
Financing availableLease & purchase options.
Factory-trained install & serviceWe deliver, install & support.

Details & specifications

Plockmatic AutoTape Double-Sided Tape Applicator

The Plockmatic AutoTape applies double-sided adhesive tape to flat printed and cut products such as cartons, presentation folders, wallets, tent cards and shelf wobblers. The piece is fed onto a flat belt conveyor and the machine positions, applies and cuts the tape, so work can be assembled right away or shipped flat for assembly later. It sits between taping by hand and a full folder-gluer line.

Speed 40 m/min (131 ft/min)
Max sheet 23.6″ (600 mm)
Media 150 gsm to 5 mm
Tape width 3/8″ to 1″

Key Features

  • Pneumatic tape cutting for consistent cuts through adhesive material; compressor included
  • Flat-belt product transport keeps tape placement straight over long runs
  • Touch screen interface for job setup and changeover
  • One applicator head, upgradeable to five
  • Taping accuracy of ±1 mm (0.039″)
  • Tape types: banner or PVC, acrylic, tissue and transfer tape
  • Delivery table with magnetic stacker guides

Specifications

Maximum Sheet Size 23.6″ (600 mm)
Minimum Sheet Size 4″ (100 mm)
Media Thickness 150 gsm to 5 mm
Feeding System Manual feeding table with adjustable continuous feeder belts
Delivery Delivery table with magnetic stacker guides
Mechanical Speed 40 m/min (131 ft/min)
Applicator Heads 1 (upgradeable to 5)
Applications per Piece 1 to 5
Tape Width 3/8″ to 1″ (9 to 25 mm)
Tape Application Length 1.8″ to 39″ (45 to 999 mm)
Min. Gap Between Applications 1″ (25 mm)
Min. Distance from Paper Edge 3/8″ (10 mm)
Taping Accuracy ±0.039″ (±1 mm)
Tape Reel 3″ (76 mm) core, 19″ (480 mm) outside diameter
Compressed Air Compressor supplied
Power 220–240 V, 50/60 Hz, 0.4 kW
Dimensions (H × W × D) 63″ × 57″ × 30″ (1,600 × 1,450 × 760 mm)
Weight 425 lb (193 kg)
* Specifications depend on application, media type, temperature and relative humidity, and are subject to change without notice.
