Console address printer

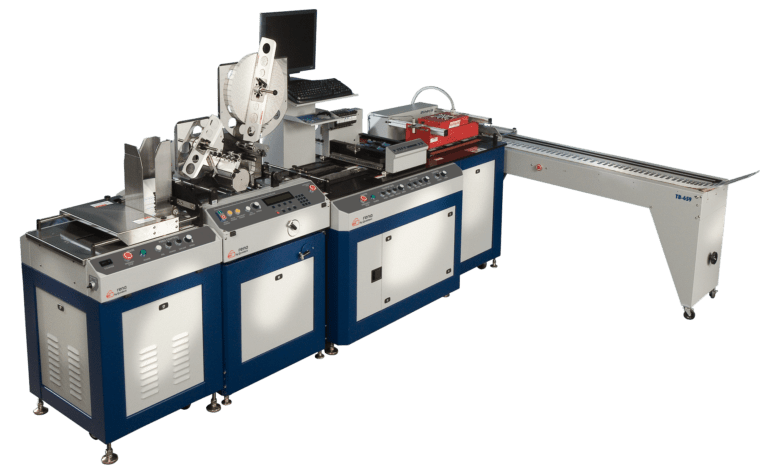

The RENA by Quadient XPS-ProMail is a high-speed console inkjet printer for high-volume direct mail and envelope addressing. It carries AccuTrak™ vacuum transport, integrated ink monitoring, and a steel and aluminum frame rated for continuous duty. Multiple stitched print heads give up to 4" of print area, and top speed reaches 34,000 pieces per hour. The system is built for demanding mailing operations.
Key features
- Up to 4" of print coverage from four individual print heads
- Prints up to 34,000 postcards per hour and 26,000 #10 envelopes per hour
- AccuTrak™ vacuum transport keeps registration and alignment precise, with adjustable guides and belts
- Two print head configurations: XPS-ProMail 3.0 (3+2+1 design) or XPS-ProMail 4.0 (3+2+2+1 design)
- Steel and aluminum construction rated for continuous operation
- Ink supply flexibility: single cartridge or bulk ink systems
- Integrated ink monitoring prevents unexpected ink depletion mid-run
- Dedicated multi-channel centrifugal vacuum pump for consistent paper handling
- Modular and expandable: compatible with RENA Systems productivity accessories, feeders, and dryers
- Runs in-line with existing finishing systems for automated mailing production
Specifications
| Specification | Details |
|---|---|
| Print technology | Thermal inkjet (HP 45A cartridges) |
| Print head configuration | XPS-ProMail 3.0 (3+2+1) / XPS-ProMail 4.0 (3+2+2+1) |
| Max print speed | 34,000 postcards/hr, 26,000 envelopes/hr |
| Print resolution | Up to 600 x 600 dpi |
| Print area | Up to 4" x 50" |
| Minimum media size | 3" x 5" |
| Maximum media size | 15" x 17" |
| Media thickness | Up to 1.25" |
| Feeder options | EASYFeed, Shuttle Feeder, High-Capacity Feeder |
| Transport system | AccuTrak™ vacuum transport with registration guides |
| PC interface | USB 2.0, Ethernet |
| Power supply | 220VAC single-phase 20A (printer) / 220VAC single-phase 60A (dryer) |
| Construction | Steel and aluminum frame |
| Duty cycle | 240 million addresses over 5 years |
Applications
- High-volume mail addressing: automates direct mail processing for mass mailing campaigns
- Ticket and barcode printing: variable data and barcodes for ticketing, event passes, and tracking labels
- Shipping and logistics: large-format envelope printing and shipping label customization
- Corporate and government mail processing: accurate addressing for high-volume document distribution
Available options
- XPS-ProDry 8.0 dryer: speeds up ink drying for faster handling and better adhesion
- XPS-ProFeed feeder: improves media handling for continuous operation
- Conveyor/stacker system: automates sorting and stacking on high-output jobs
- EASYInk brand inks for long-lasting prints
Benefits
The XPS-ProMail raises mailing throughput with high-speed automated printing and removes the cost of pre-printed envelopes. AccuTrak™ vacuum transport and the multi-channel vacuum pump hold registration precise across the run, and the wide media size and thickness range covers most mailing formats. The steel and aluminum frame is the reason for the 240-million-address duty rating.
