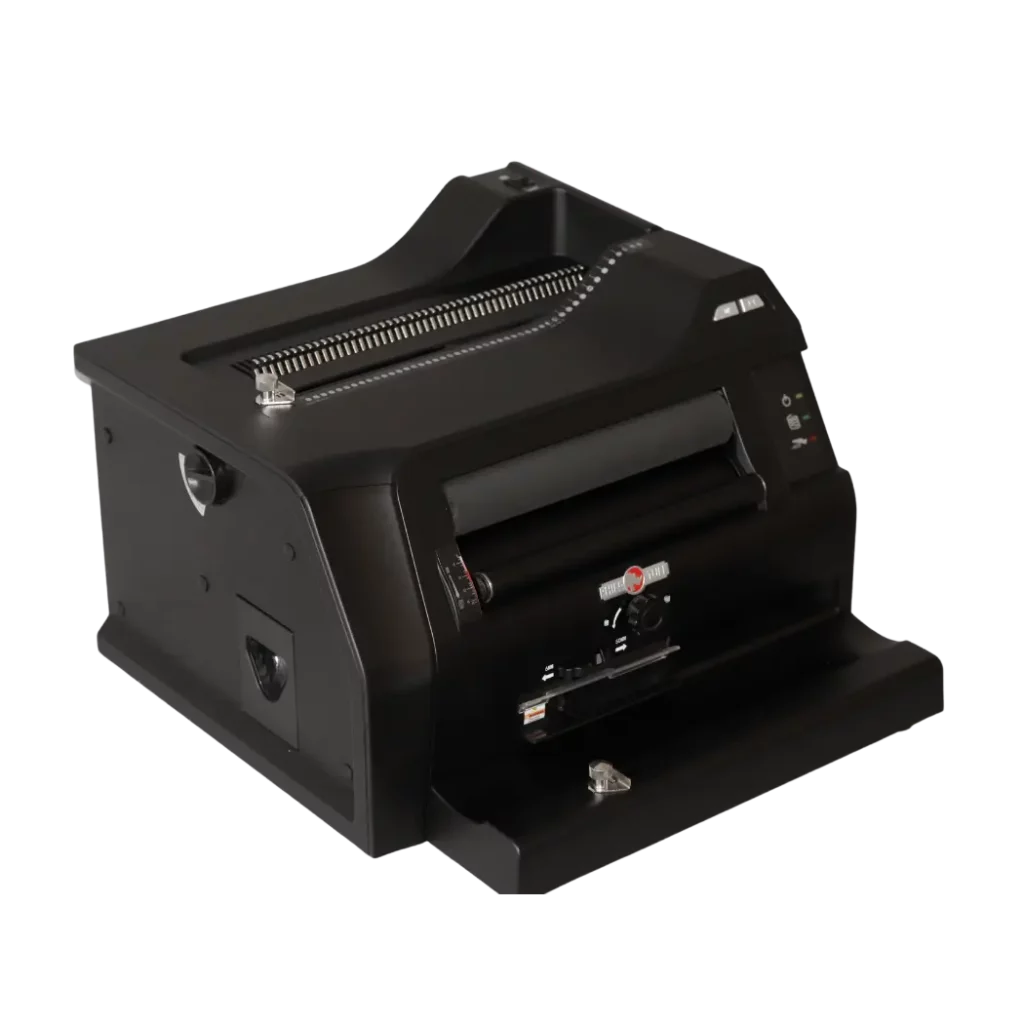

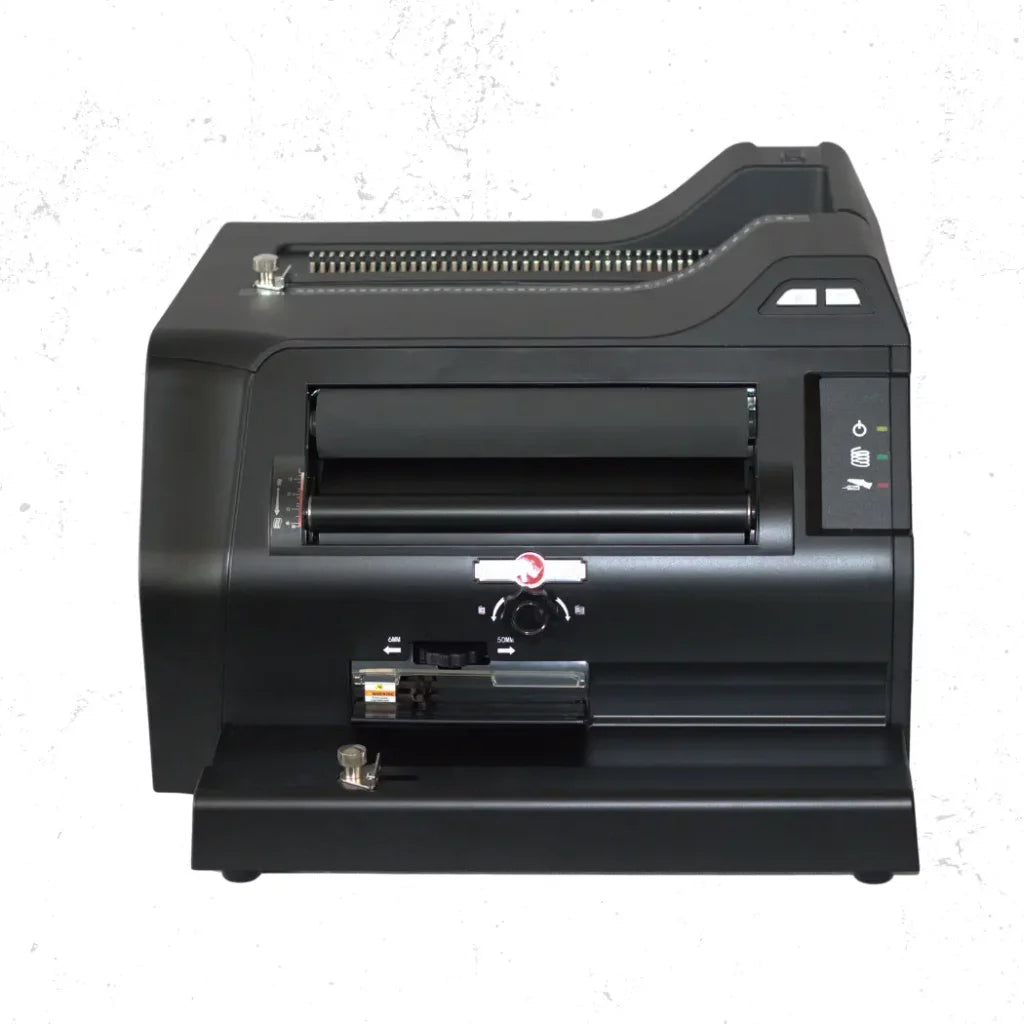

Rhin-O-Tuff Coil Binding System 3000
Electric punching, inserting, and crimping for professional coil binding. Perfect for offices and small print shops. Creates documents with 6mm-50mm coils.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Details & specifications
Professional Coil Binding Machine
The Rhin-O-Tuff® Coil Binding System 3000 is a revolutionary desktop coil binding system that integrates electric punching, coil insertion, and crimping in a sleek, compact design ideal for office and small print shop settings. With user-friendly controls, professionals can easily transform loose pages into polished documents in just three steps. This versatile system is compatible with a wide range of coil bindings, punching, inserting, and crimping booklets up to 50MM (440 sheets) without the need for additional tools or machines.
- Reliable Power Punching:
- Punches up to 20 sheets of 20 lb. bond
- Punch button or hands-free foot pedal
- Smart Design:

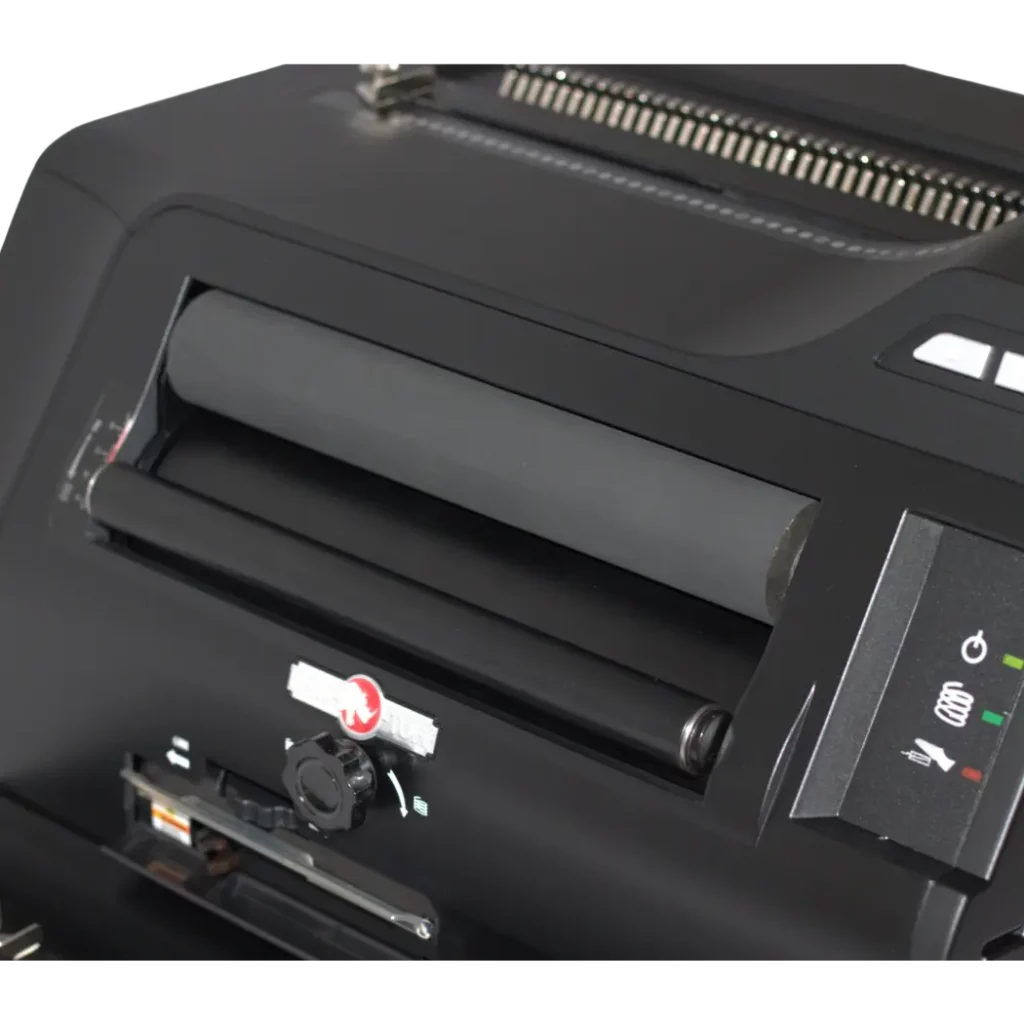

- Full size, dual coil rollers improve binding efficiency

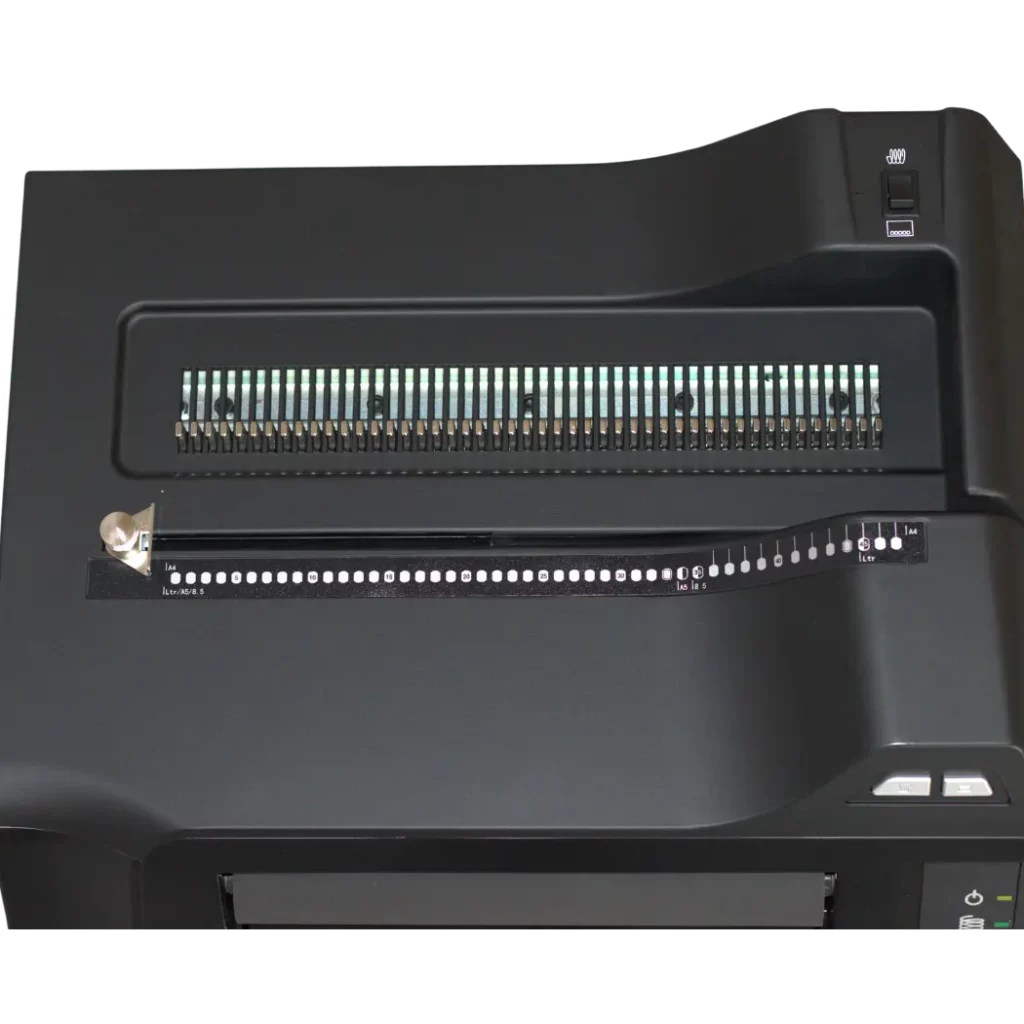

- Larger oval punch pins can improve coil insertion time by up to 50%
- Power Crimper eliminates the need for cumbersome hand crimpers or pliers
- Intuitive Controls: LED panel and controls guide users through the binding process
Technical Specifications:
| Punching & Operation Punch Capacity |
Electric (Food Pedal/Punch Button) Up to 20 Sheets (20 lb. Bond) |
| Inserting Operation Binding Capacity |
Electric (On/Off Switch) Up to 20 Sheets (20lb. Bond) |
| Crimping Operation Crimp Capacity |
Electric (Foot Pedal) 6mm - 5mm Diameter Coils |
| Hole Size/Pitch | Oval (4mm x 5mm); 4:1 Pitch with .2475" Hole Center Space |
| Disengageable Dies | All 47 Pins |
| Punching Length | Up to 23.4" |
| Weight and Dimensions | 75lbs./18.3" W x 18" D x 12" H |

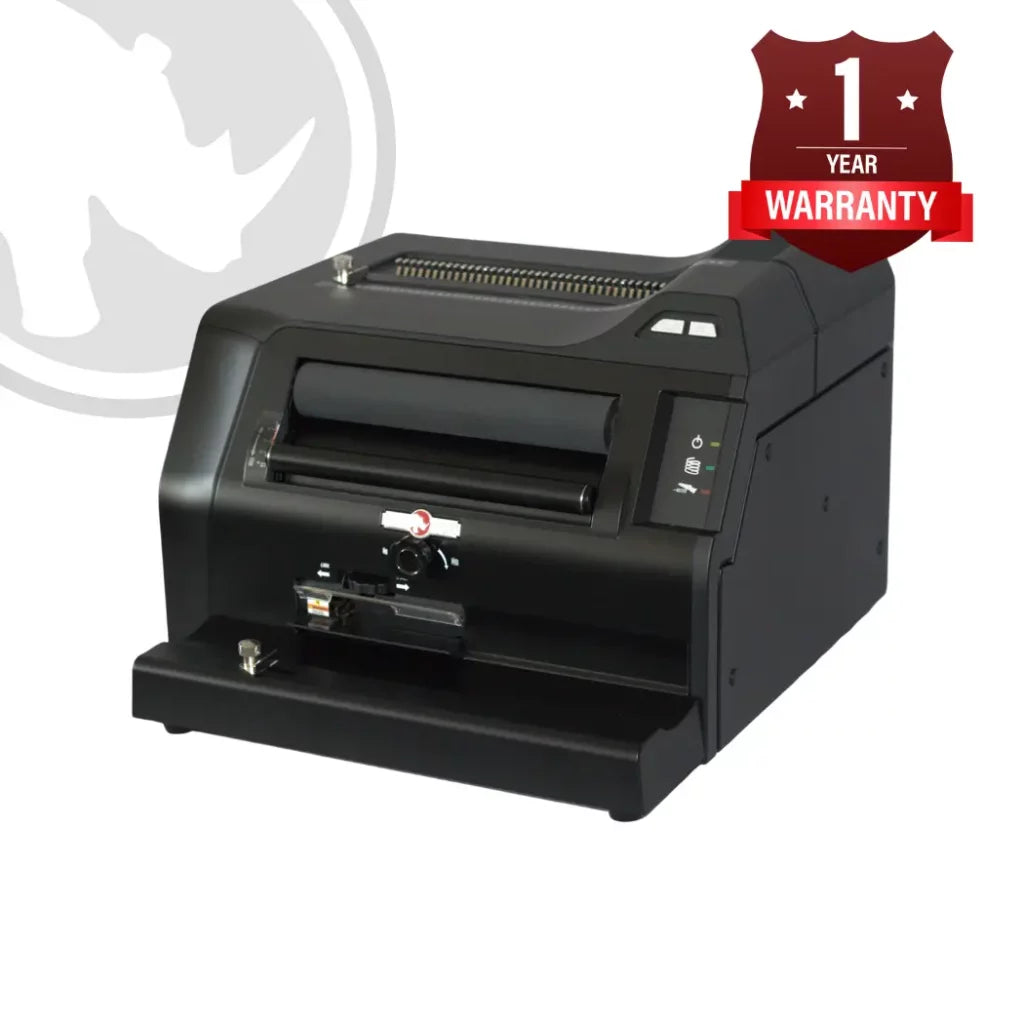

| Warranty | 1-Year |
