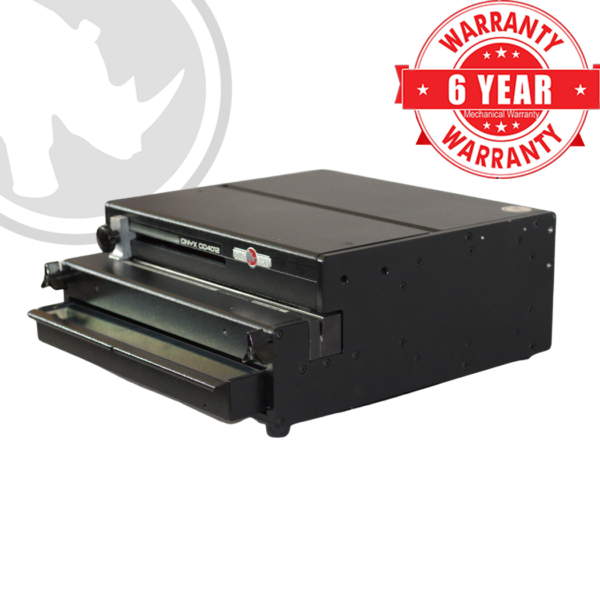

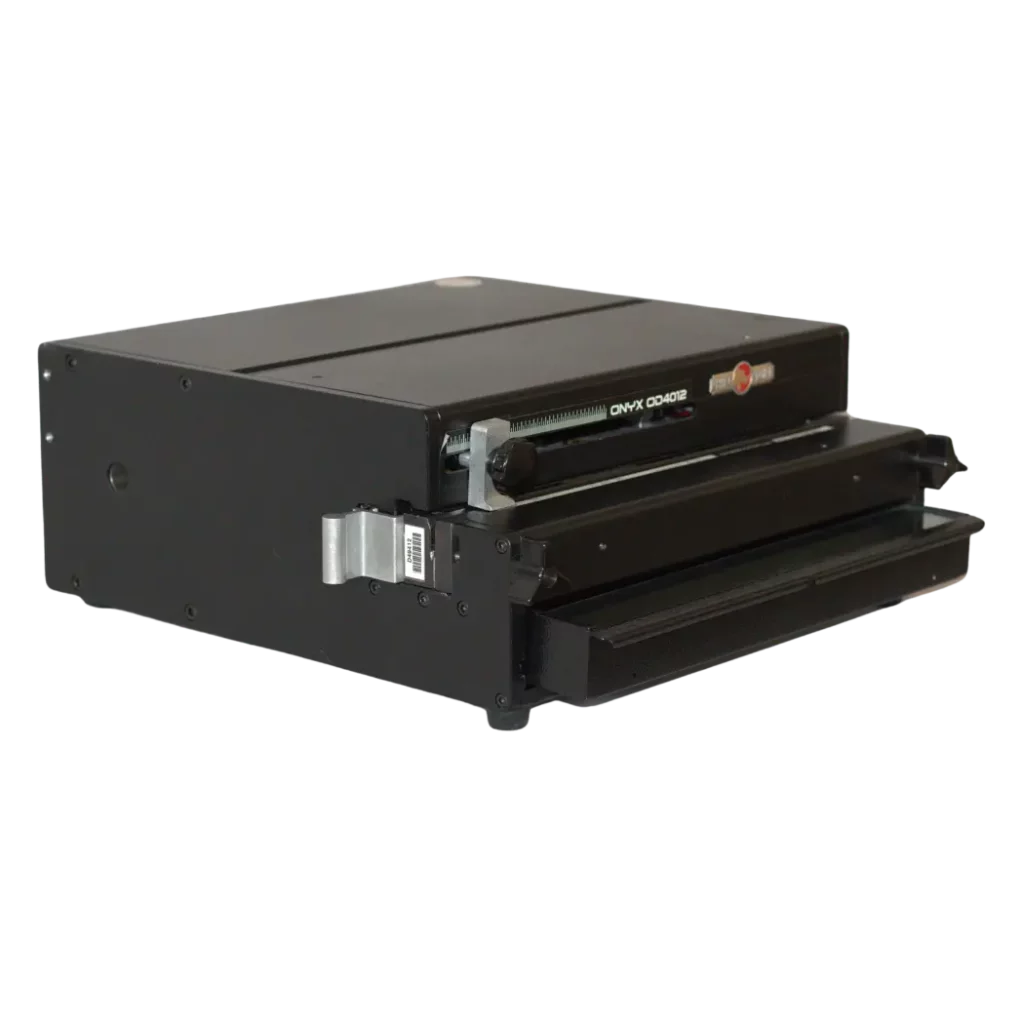

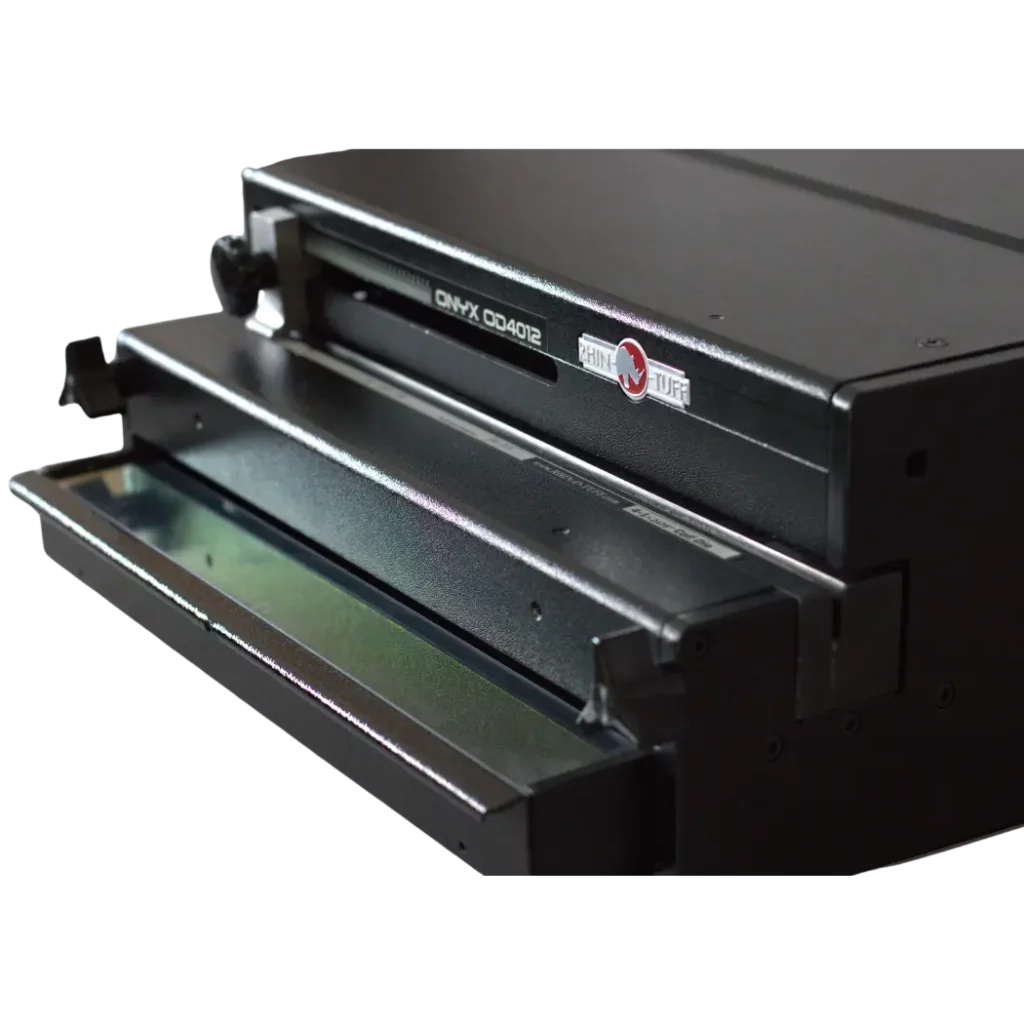

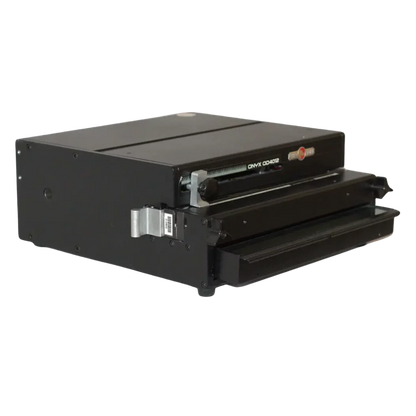

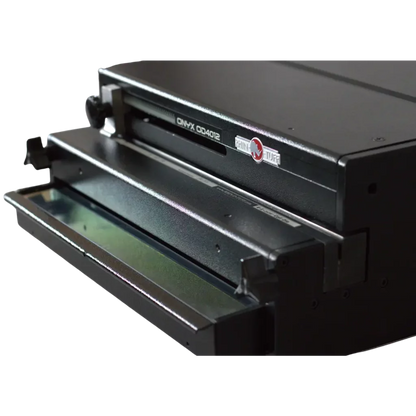

Rhin-O-Tuff Onyx OD4012

Electric punch with interchangeable die system

The Onyx OD4012 is a heavy-duty 11" open-ended electric punch built for fast, accurate punching across several binding formats. It uses Rhin-O-Tuff's patented E-Z Change™ die system with the Swing Away Die Pin Retainer and takes up to 12 punch patterns, including comb, wire, coil and 3-hole. With a 30-sheet punch capacity, three activation options and a rugged frame, the OD4012 suits commercial binding operations that need durability, speed and format flexibility.

Key features

• Electric punch with the E-Z Change™ die system
• Takes 12 interchangeable binding die patterns
• Open-ended design for punching wider sheets
• Rated for up to 30 sheets (20 lb. bond) per punch
• Quiet, power-on-demand operation with a reversible motor
• Activates by foot pedal, Versa Switch or palm button

Specifications

Applications

• Office or commercial document punching
• Booklets, manuals and reports with custom bindings
• Print shops offering wire, coil or comb binding
• High-volume finishing environments that need several punch formats

Available options

• Interchangeable dies for comb, coil, wire, velo, 3-hole and more
• Optional die storage racks and accessories
• Foot pedal and palm switch included (spare available)
• Matching finishers and binding modules

Benefits

• Handles multiple binding styles with a single machine
• Fast, tool-free die changes cut changeover time
• Built for long-term daily use
• Quiet operation fits office and shop environments
• Made in the USA and 98% recyclable

Warranty

Every Rhin-O-Tuff Onyx system carries a 6-year manufacturer warranty, among the longest in the industry.

Which Onyx punch fits your shop

The OD4012 is the entry machine in the Onyx line. It punches 11 inches open-ended at up to 30 sheets and takes 12 E-Z Change die patterns, which covers most comb, coil, wire and 3-hole work in a shop running punch jobs alongside other finishing.

Step up to the Onyx HD7000 when punching is the daily job rather than one of several. Step up again to the HD7500 horizontal or the HD7725H Ultima when sheet volume or stock thickness outruns a tabletop machine.

All four take the same E-Z Change die system, so dies bought for one machine are not stranded when you move up. Call 1-800-343-4231 and we will size it against your daily sheet count.

Ask about financing if the capital approval is easier as a monthly number, or request a quote with your daily sheet count and the formats you bind.

Common questions about the Onyx OD4012

How many sheets will the OD4012 punch at once?

Up to 30 sheets of 20 lb bond per punch, at 65 cycles per minute. Heavier stock and laminated sheets reduce that count, so size the machine against the heaviest sheet you run rather than the lightest.

Which die patterns does it take?

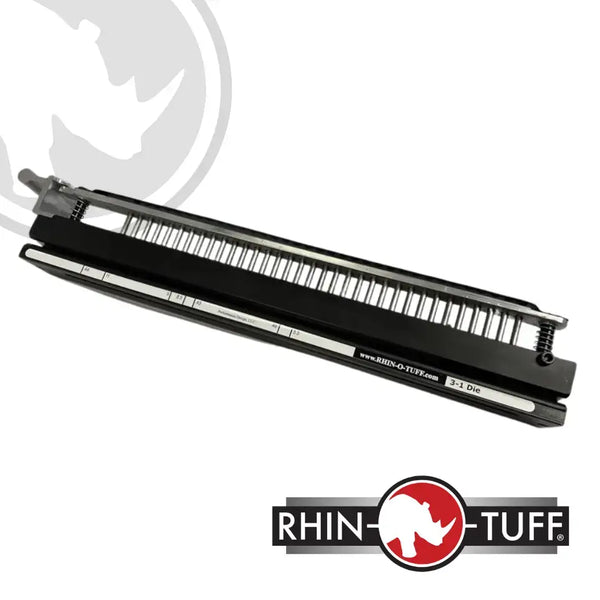

Twelve E-Z Change die patterns, covering comb, coil, wire, velo and 3-hole formats. Dies are sold separately and change without tools using the Swing Away Die Pin Retainer.

What does open-ended mean on an 11 inch punch?

The die area is 11 inches but the throat is open at both ends, so sheets wider than 11 inches are punched in two passes rather than being limited to the die width. That is how the OD4012 handles oversize and tabloid work.

How is the OD4012 different from the Onyx HD7000?

Both use the same E-Z Change die system. The HD7000 is the heavier daily-production machine at $3,748. The OD4012 at $2,677 suits a shop that punches regularly but not all day. Dies move between them.

What warranty comes with it?

Six years mechanical and three years electrical from Rhin-O-Tuff, among the longest in the category. Mid-State Litho is an authorized Rhin-O-Tuff dealer with factory-trained service across Michigan and the Great Lakes.
