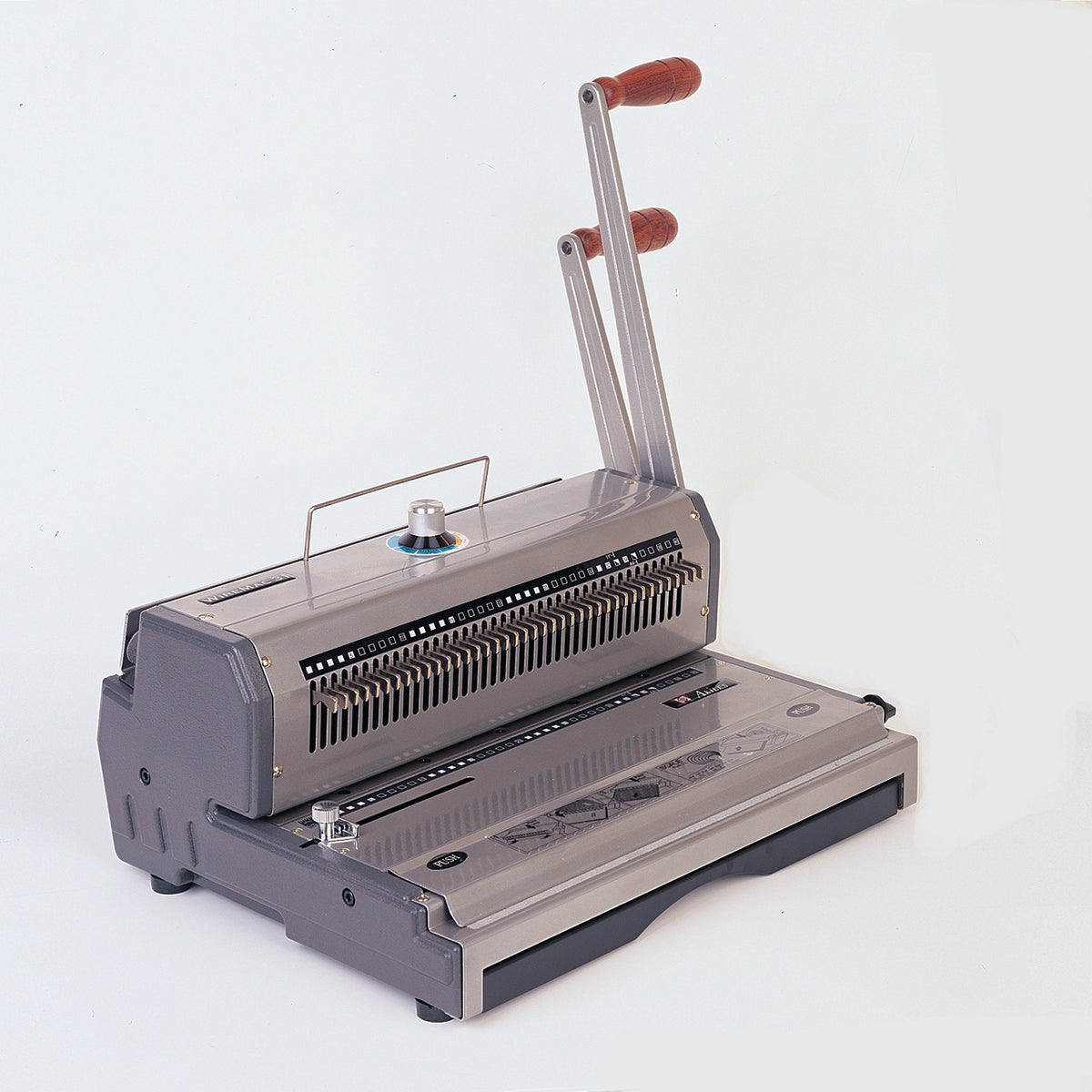

Akiles WireMac-31 Wire Binding Machine

The Akiles WireMac-31 is a manual punch and vertical wire closer for 3:1 pitch twin-loop binding. It gives a print shop or in-plant department one workstation for punching, loading, and closing thinner wire-bound books.

Its 14-inch open throat supports longer sheets. All 40 square-hole dies can be disengaged for clean punching on different document lengths. Side-margin and punch-depth controls help center the pattern and set the edge margin.

Key features

• Manual 3:1 wire punch with vertical closer
• Punches up to 20 sheets of 20 lb paper per lift
• 14-inch open punching throat
• 40 fully disengageable dies
• 4 x 4 mm square holes
• Closing capacity from 3/16 to 9/16 inch
• Side-margin and punch-depth controls
• Built-in wire holder and size guides

Specifications

• Weight: 45 lb
• Manufacturer warranty: 1 year

Before ordering

Use 3:1 pitch binding wire with this model. Buyers producing thicker books should compare a 2:1 pitch system.

Lead time: Ships in 3 to 5 business days.

Mid-State Litho can help compare 3:1 and 2:1 workflows and select matching supplies. Equipment financing is available for qualified businesses.
