New

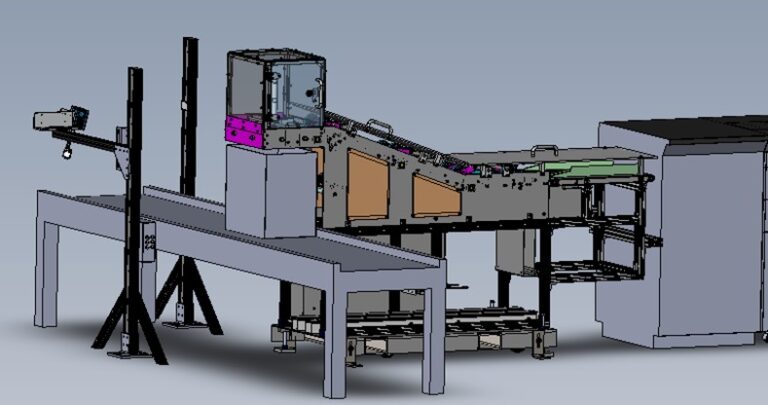

Baum Print/Single Level Insert Solution CAD rendering showing integrated paper handling line with sloped conveyor, protective housing, and connected workstation support structures

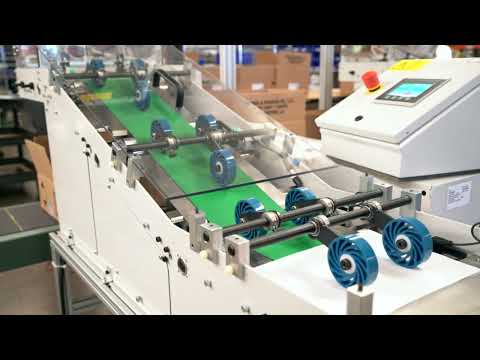

Baum BC2000626 Document Inserter - Multiple Pages Video Demonstration
Automated Document Insertion Video
Baum

Baum Print/Single level Insert

High-speed document insertion with the Century Series BC2000626. Print, verify, and insert flat sheets or bound documents with precision for order fulfillment.

Pricing by quote

We will quote equipment price, freight to your ZIP, and any install or service needs.

Tax-exempt? Apply once, check out tax-free
Parcel shippingShips by ground carrier.
Talk to a finishing expertReal specialists by phone.
Financing availableLease & purchase options.
Factory-trained install & serviceWe deliver, install & support.

Downloads

Details & specifications

The Century Series BC2000626 prints a document and inserts it into a carton in one pass. It combines a print engine, barcode verification, and automated single-level insertion, and it is used in order fulfillment, direct mail, and commercial print production.

Key features

  • Print engine supports black and white as standard, with color optional.
  • Flat sheet insertion: loose sheets, label stock, or bound documents go in without folding.
  • Throughput up to 18 insertions per minute on 1 to 2 page documents. The rate on larger gathered documents depends on the print engine.
  • Barcode and QR code verification, which scans to confirm the document matches the carton.
  • Top of carton insertion with a positive push system for placement.
  • Touch screen controls with real-time monitoring and adjustment.
  • Batch counter with variable processing for job control.
  • Configurable discrete signals and Ethernet connectivity for tying into existing production systems.

System specifications

Specification Details
Printing capability Black/white (standard), color (optional)
Insertion speed 18/min (1-2 pages), rate for gathered documents depends on printer
Verification Barcode/QR code scanning for document matching
Document handling Label stock, loose sheets (1-4), bound documents
Insertion method Top of carton, positive push system
Electrical requirements 220V/1ph (standard), optional 480V/1ph or 220V/3ph
System communication Configurable discrete signals & Ethernet connectivity

Applications

  • Order fulfillment: SDS sheets, invoices, marketing inserts, and instruction documents into shipping cartons.
  • Direct mail: printing and inserting for personalized campaigns.
  • Transactional documents: invoices, financial statements, and compliance documents, with scan verification on each piece.
  • Commercial printing: high-volume document handling with barcode verification.

Optional enhancements

  • Gatherer, which extends document collection for larger or multi-page inserts.
  • Custom system communication, configured to third-party production workflows.
