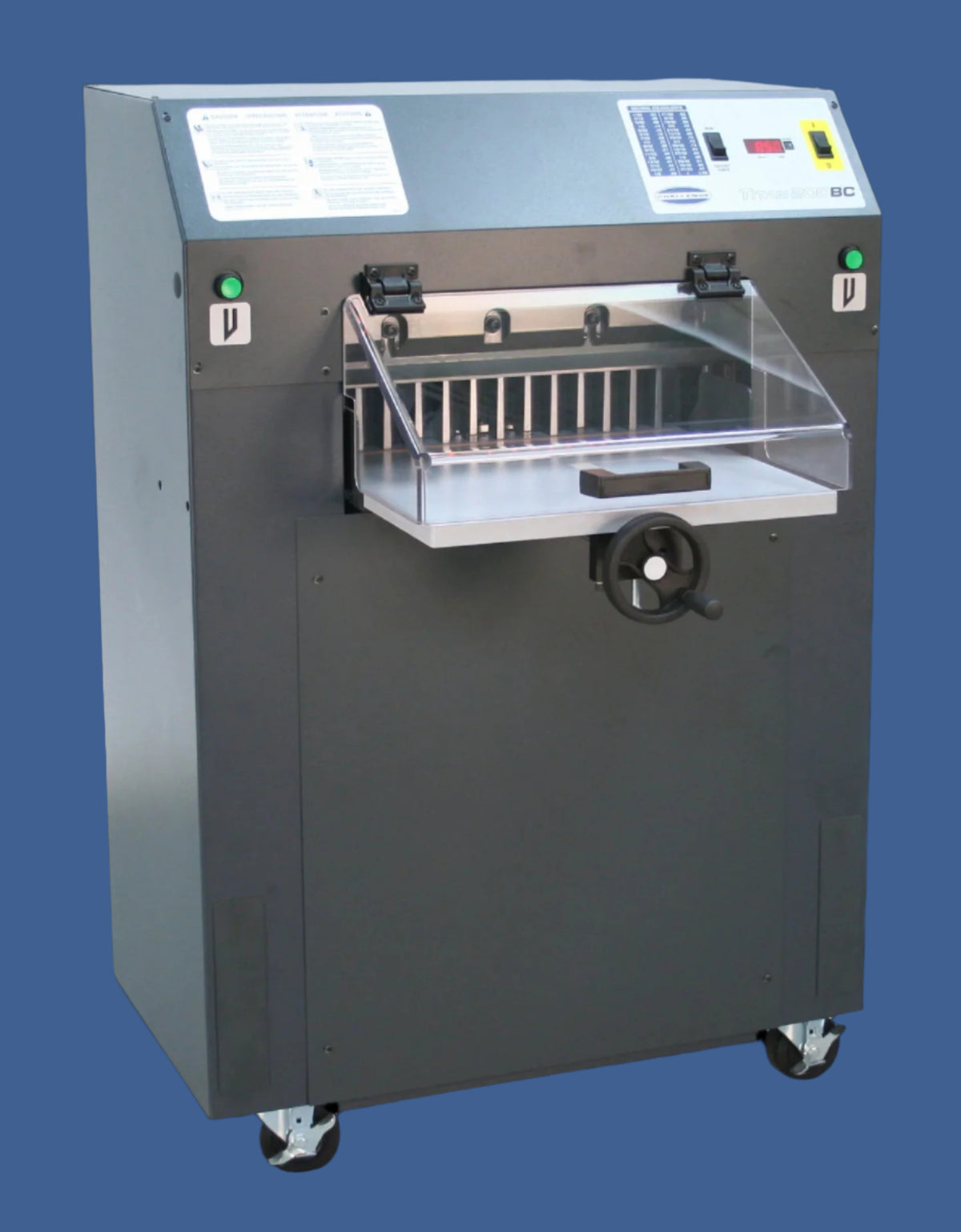

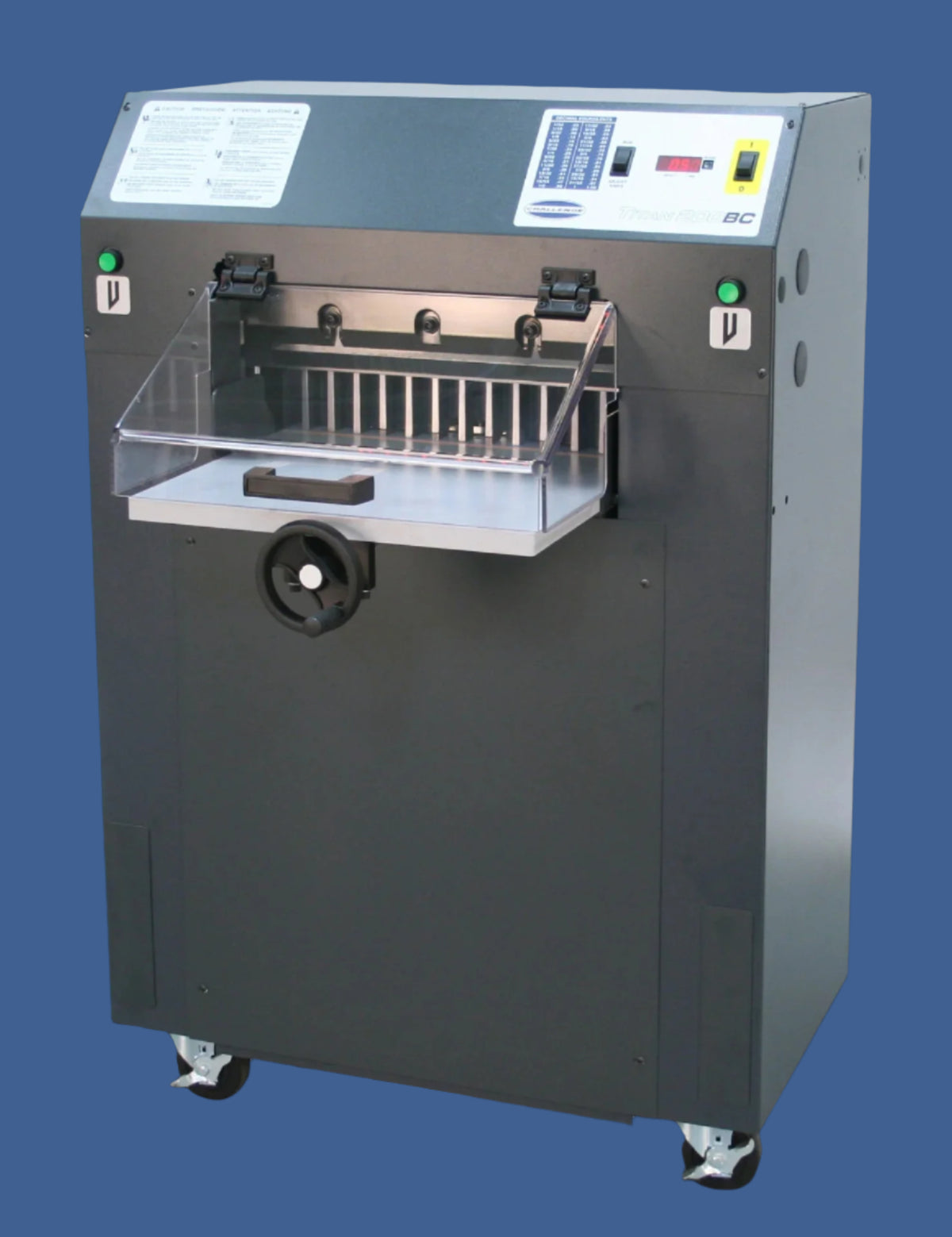

Challenge Titan 200 BC paper cutter with safety shield, digital display, manual handwheel, and heavy-duty steel cabinet on locking casters.
Challenge Titan 200 BC
Challenge

Challenge Titan 200 BC

The Challenge Titan 200 BC is a 20" programmable hydraulic guillotine cutter for print and bindery. Dealer pricing, financing & service at Mid-State Litho.

Pricing by quote

We will quote equipment price, freight to your ZIP, and any install or service needs.

Tax-exempt? Apply once, check out tax-free
Model With Plexiglass Shield
Parcel shippingShips by ground carrier.
Talk to a finishing expertReal specialists by phone.
Financing availableLease & purchase options.
Factory-trained install & serviceWe deliver, install & support.
Type120V Single-Phase
Cut width20"
OperationHydraulic
Power120V Single-Phase

Downloads

Details & specifications

Titan 200BC — 20″ Hydraulic Paper Cutter (Manual Backgauge)

Rugged, compact 20″ hydraulic cutter for offices, in-plants, and print shops. Hydraulic cutting & clamping with adjustable pressure, manual backgauge with lock, and your choice of Plexiglas Shield or Light Beam Safety Curtain (select via variants).

Key Features

  • 20″ cutting width; 3-1/4″ clamp opening
  • Hydraulic blade & clamp for consistent, powerful cuts
  • Adjustable clamp pressure for mixed & delicate stocks
  • Manual backgauge with fine adjustment & positive lock
  • LED optical cut-line for precise alignment
  • Hydraulic motor runs only during the cutting cycle (energy-efficient)
  • Steel & cast-iron construction on lockable heavy-duty casters
  • Options: side tables (12″×19″), foot-pedal clamping, 208/230 V motor

Safety Features

  • Two-hand cut activation with safety interlock
  • Plexiglas front shield or light-beam curtain option; rear table safety cover
  • UL/cUL listed; conforms to CE & ANSI B65.3 safety specs
  • Cutting area protection with standard safety shield

Specifications — General

Cutting Width 20″ / 508 mm
Backgauge Control Manual (locking)
Clamp Opening 3-1/4″ / 83 mm
Clamping Force (min / max) 1,250 lb / 2,500 lb
Minimum Cut (no plate) 1/2″ / 13 mm
Minimum Cut (with false plate) 1-7/8″ / 48 mm
Maximum Cut Depth 20″ / 508 mm
Table — In Front of Knife 16″ / 406 mm
Table — Behind Knife 20″ / 508 mm

Specifications — Dimensions

Table Height 36″ / 914 mm
Overall Width 36″ / 914 mm
Overall Length 50-7/8″ / 1,300 mm
Overall Height 52-1/4″ / 1,330 mm
Will Pass Through Door (assembled) 36-1/4″ / 920 mm
Net / Shipping Weight (approx.) 755 lb / 980 lb (343 kg / 444 kg)

Specifications — Electrical

Standard 3/4 HP, 120 V, 60 Hz, 12 A (service size 15 A), NEMA 5-15R
Optional 1-1/2 HP, 208/230 V, 60 Hz, 12 A (service size 15 A), NEMA 6-15R or 6-20R

Options & Accessories

  • Side tables 12″ × 19″ (plexi-shield models)
  • Independent mechanical foot-pedal clamping (field kit)
  • 208/230-volt motor option
  • False clamp plate · magnetic clamp pads
  • Knives (inlaid carbon alloy / inlaid HSS)
  • Plastic cutting sticks · book guides · jogging aid
  • Waste wagon · knife lifter assembly
  • Shell 100 hydraulic oil (1 gal / 5 gal)
  • Below-table cut button kit

Applications

Office & in-plant trimming · Copy centers · NCR & sets · Brochures & sell sheets · Thick media stack cutting

Benefits

  • Visual accuracy with LED cut-line indicator
  • Meets demanding safety expectations (two-hand cut, shields/curtain)
  • Consistent cuts via hydraulic clamp & blade
  • Easy relocation on lockable casters; compact footprint
  • Manual backgauge enables fine adjustment with locking precision

Includes: standard knife, (3) plastic cutting sticks, jogging aid, manual, tool kit, and knife-change holder assembly. Specifications subject to change without notice.
