Challenge Titan 230 Pro Hydraulic Paper Cutter

Challenge Titan 230 Pro Hydraulic Paper Cutter

$26,029.00 USD
$26,029.00 USD
Sale Sold out

Estimated Shipping Time: 2-4 Weeks

Shipping calculated at checkout.
Type

This item includes free freight. The shipment will come by truck. (Shipping Policy)

Freight Shipping Required Item is shipped FOB with a lift gate to the continental 48 states. Hawaii, Alaska, and US territories are excluded from free shipping.

TITAN 230 Pro — 23″ Programmable Hydraulic Paper Cutter

USA-built 23″ programmable hydraulic paper cutter with up to 9,801 stored cut positions, electronic clamp pressure control, and a light-beam safety curtain. Choose Standard programmable controls, add Ergo Touch low-force cut buttons, an Air-Float table, or both.

Key Features

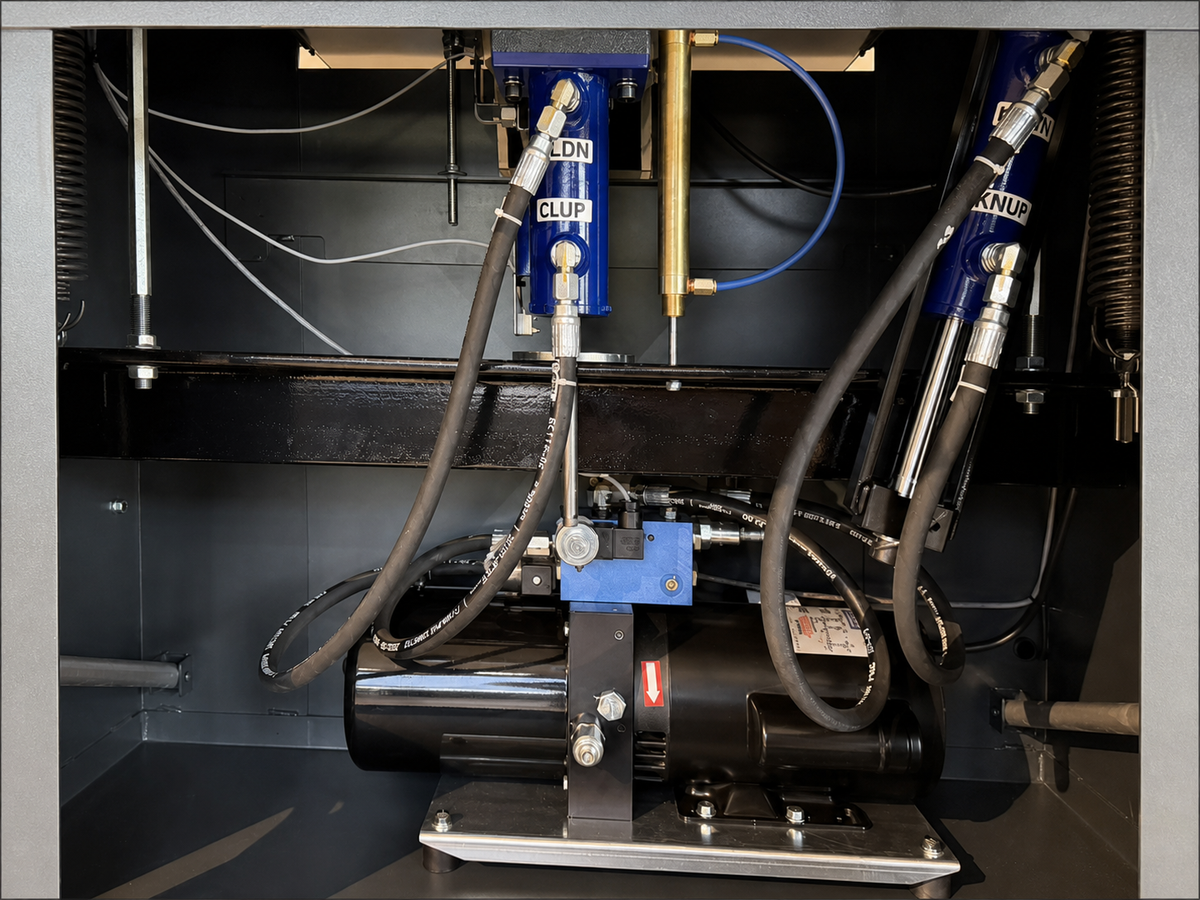

  • Fully hydraulic cutting and clamping; motor runs only during the cut cycle

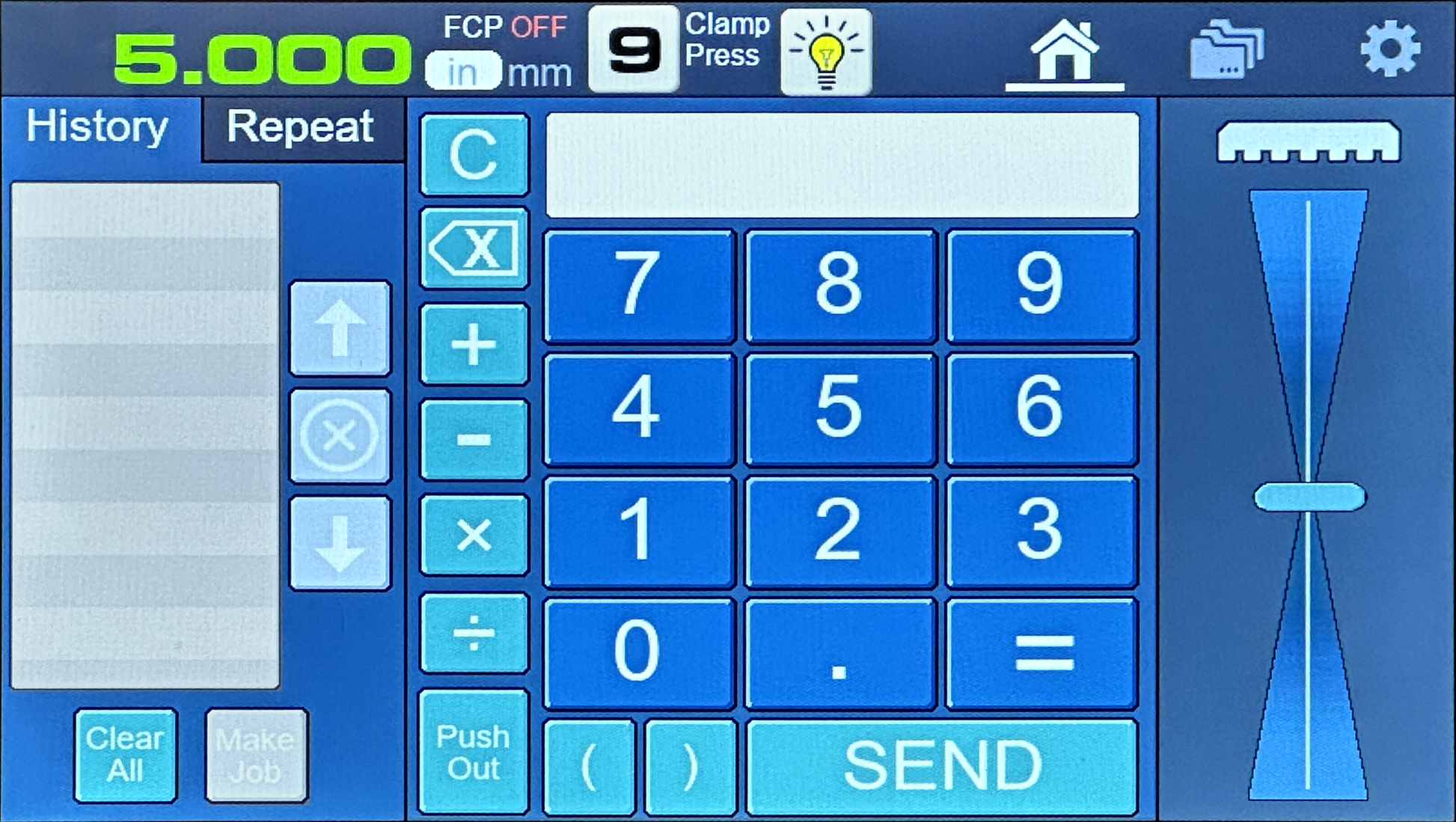

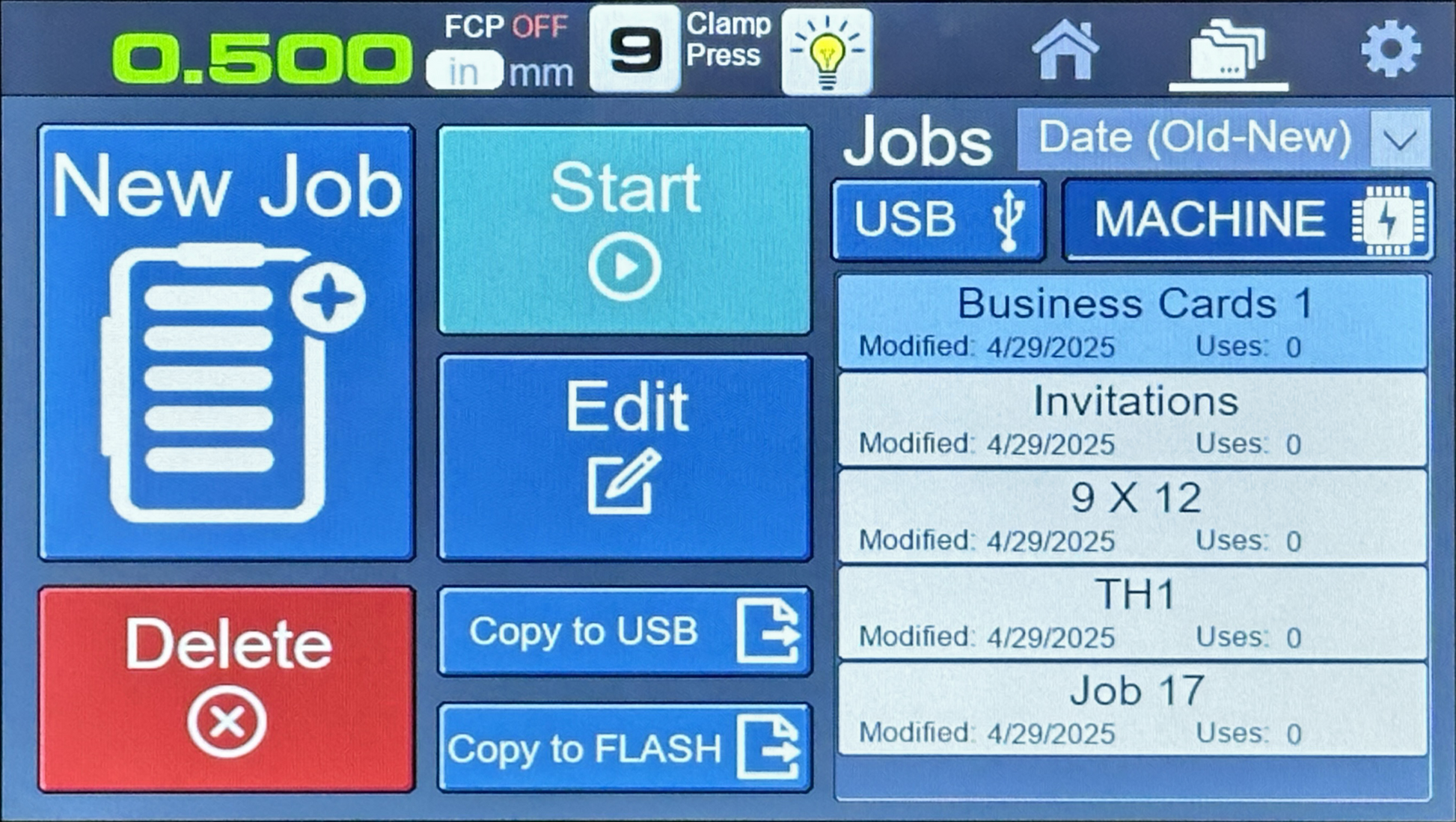

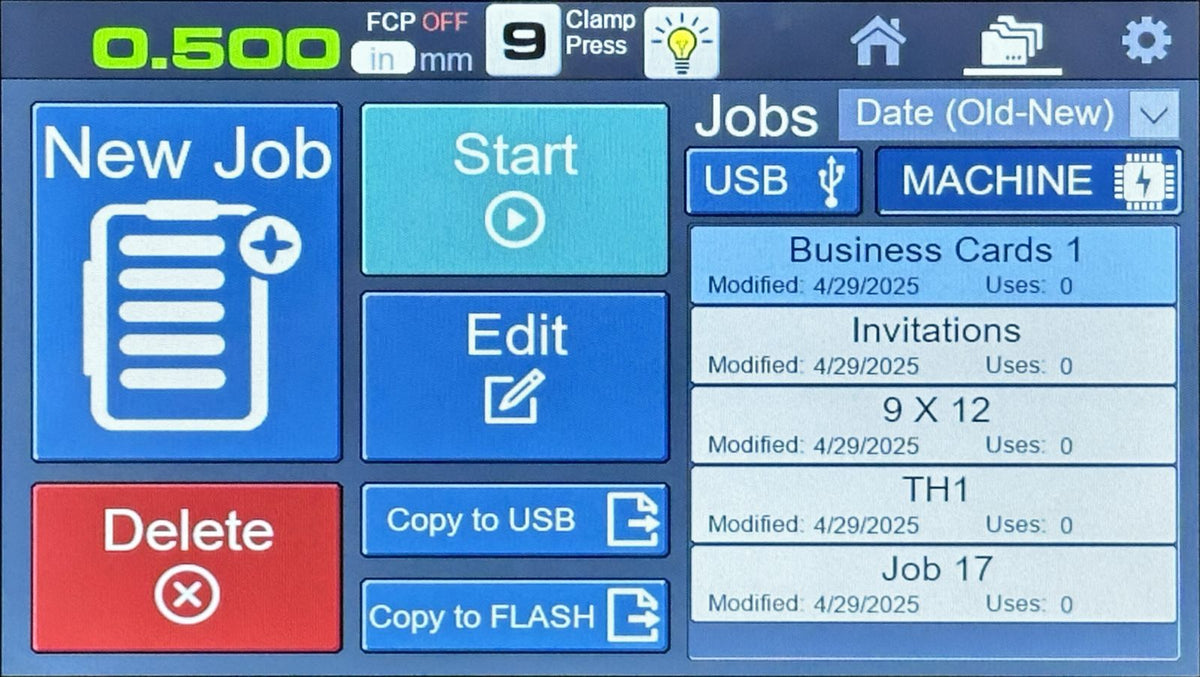

  • Programmable backgauge (99 channels × 99 cuts = up to 9,801 stored positions)
  • Electronic Clamp Pressure Control — adjustable from 1,250 lb up to 2,500 lb

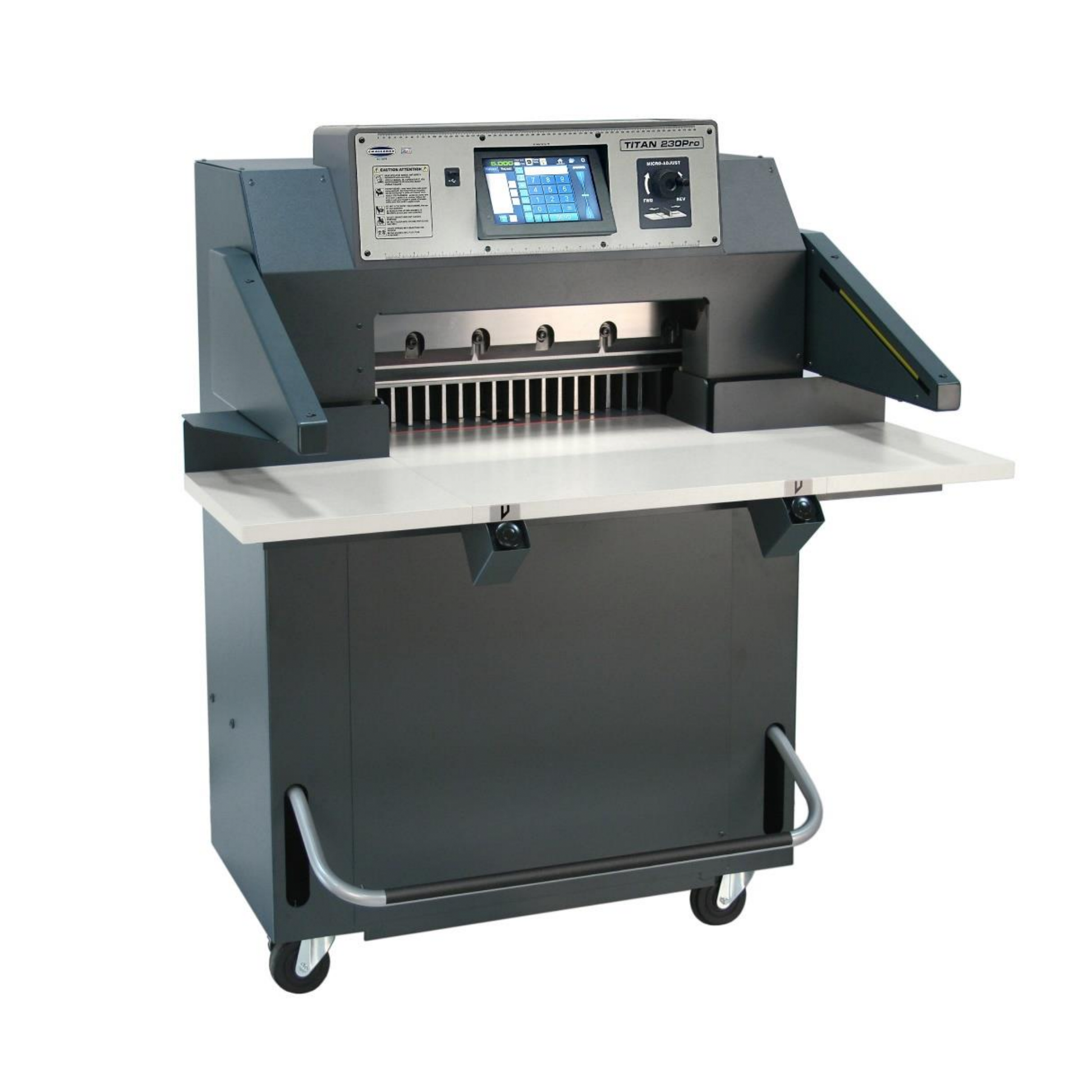

  • Light-beam safety curtain and two-hand non-repeat cut buttons
  • Bright red LED cut-line light (maintenance-free)
  • Rugged cast-iron and steel construction; lockable heavy-duty casters
  • Made in the USA; UHMW wear surfaces and composite bushings for low maintenance
  • CE / ANSI B65.3 conformance, UL/cUL listed

Configuration Options

  • Standard: Programmable backgauge, standard cut buttons
  • + Ergo Touch Buttons: Low-force cut buttons reduce operator fatigue on long runs
  • + Air Table: Air-float table makes positioning heavy stacks effortless
  • + Both: Combine Ergo Touch buttons and Air Table for the most ergonomic configuration

Specifications — General

Cutting Width 23″ / 584 mm
Clamp Opening 3.25″ / 83 mm (3.0″ / 76 mm with false clamp)
Clamping Force 1,250 lb min / 2,500 lb max (563 / 1,125 daN)
Minimum Cut (without false clamp) 0.5″ / 13 mm
Minimum Cut (with false clamp) 1.875″ / 48 mm
Cycles per Minute 18
Table — In Front of Knife 24.25″ / 616 mm
Table — Behind Knife 24″ / 610 mm

Specifications — Dimensions

Overall Width 50″ / 1,270 mm
Overall Length 66″ / 1,680 mm
Overall Height 53″ / 1,350 mm
Table Height 36″ / 914 mm
Will Pass Through Opening 43″ / 1,090 mm (39.25″ with tables/guards removed)
Shipping Weight (approx.) 1,120 lb / 508 kg

Specifications — Electrical

Motor / Power 1-3/4 HP, single-phase AC, 208/230 V, 60 Hz, 12 A (15 A service)
Receptacle NEMA 6-15R or 6-20R
Optional (50 Hz) 1-1/4 HP, 230 V, 50 Hz, 10 A (15 A service)

Compatible Accessories

Large Side Tables (18″ × 20″) #23-0-800 $1,024

Additional parts and consumables (knives, cutting sticks, false clamp plates, knife lifters, magnetic clamp pads, jogging aids) are available. Contact sales for a current parts list.

Applications

Commercial print, digital output, brochures and sell sheets, bound book blocks, labels and sheet division, thick media trimming for production environments.

Why Pro?

  • Larger 23″ throat handles full A2 and 12″×18″ sheets without trimming
  • Programmable controls cut setup time on repeat jobs to seconds
  • Ergo Touch and Air Table options dramatically reduce operator fatigue
  • USA-built with parts availability for the life of the machine

Standard equipment: false clamp plate, (2) HSS knives, (3) cutting sticks, jogging aid, manual, tool kit, knife-change safety holder. Specifications subject to change.

Meta: USA-built Challenge Titan 230 Pro programmable hydraulic paper cutter, 23″ cut width, 9,801 stored positions, optional Ergo Touch and Air Table. Free freight to the continental 48.
