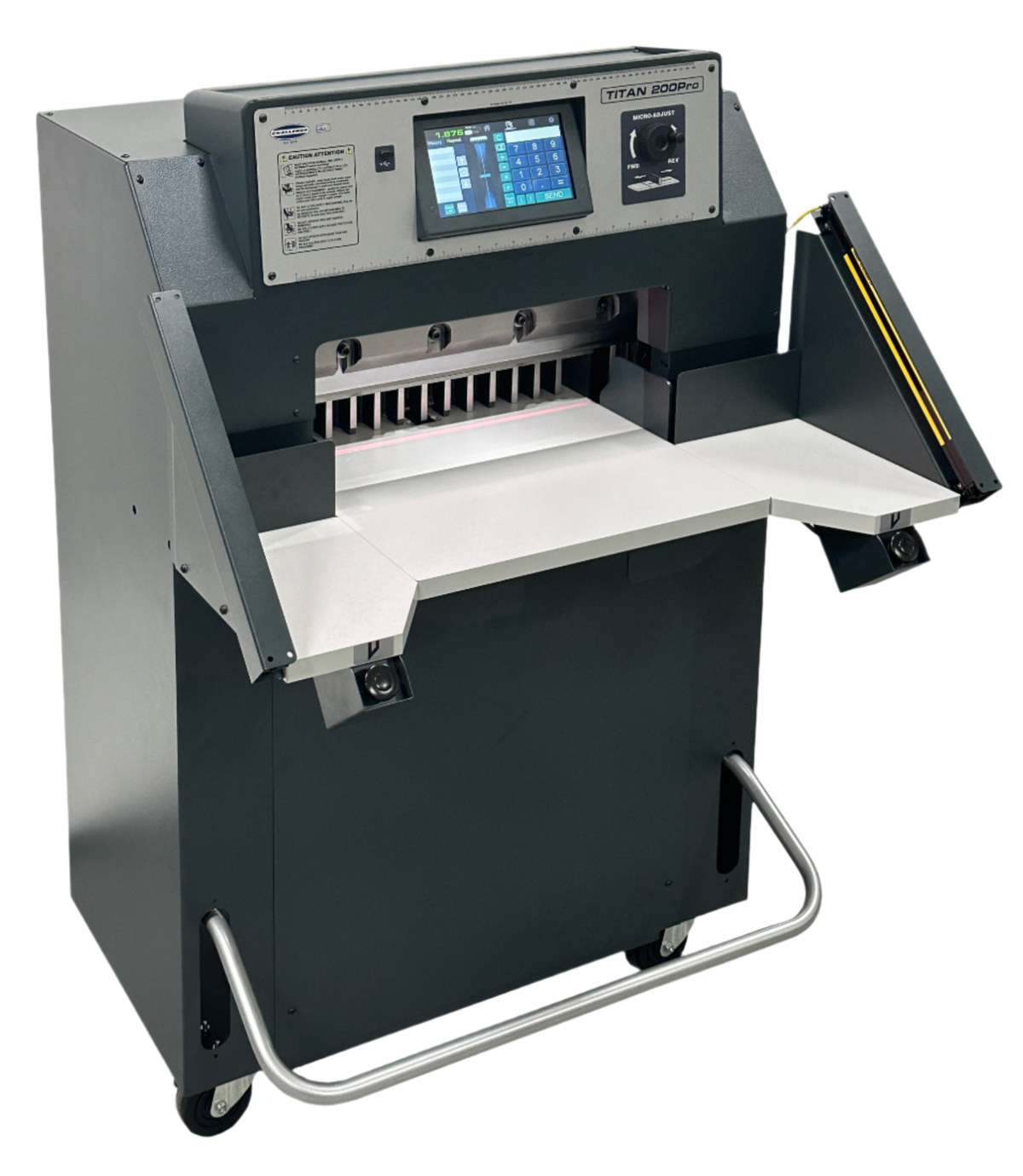

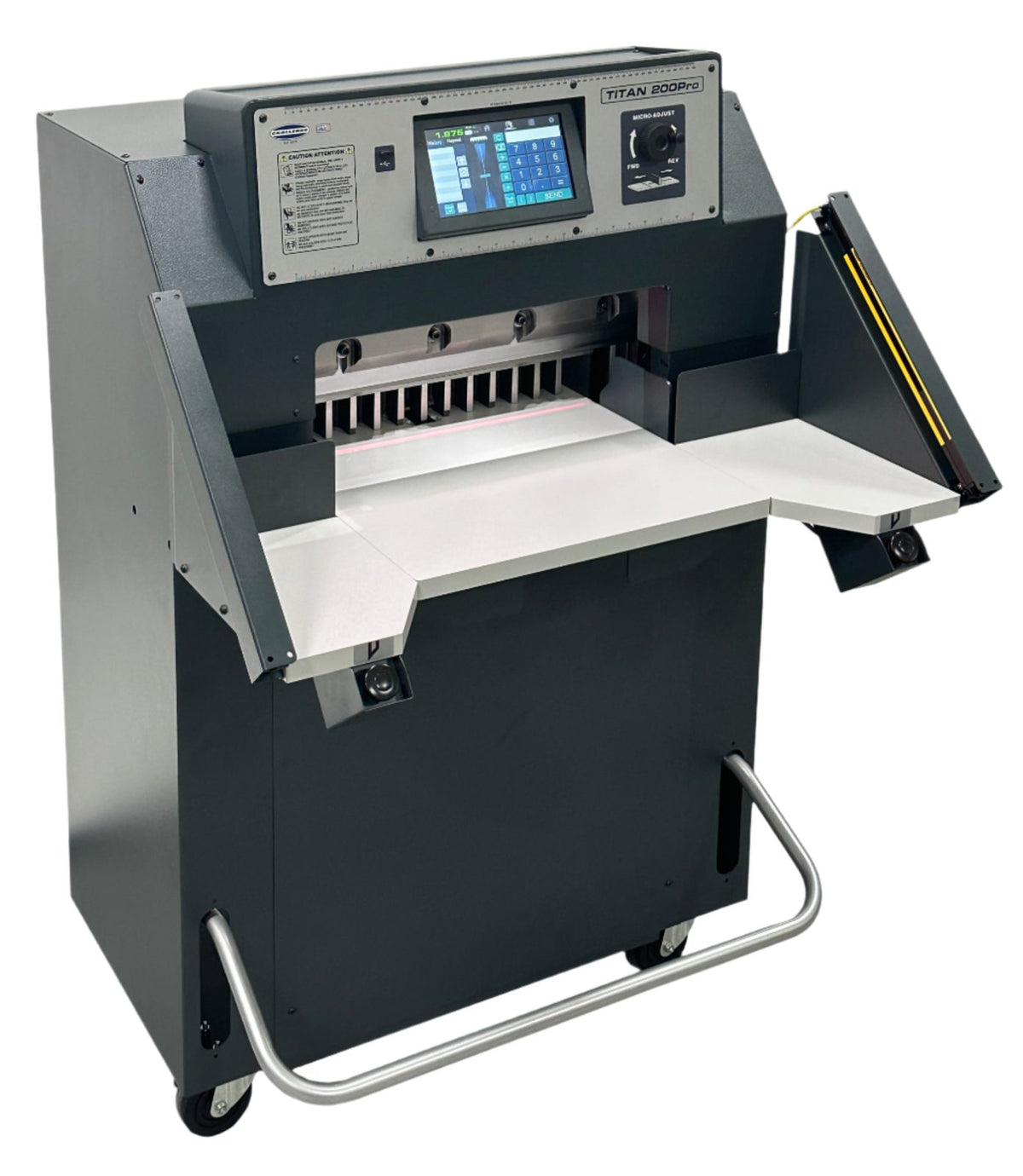

• Challenge Titan 200 Pro programmable paper cutter with digital touch screen, hydraulic clamp, and precision-guided cutting for high-volume print finishing.

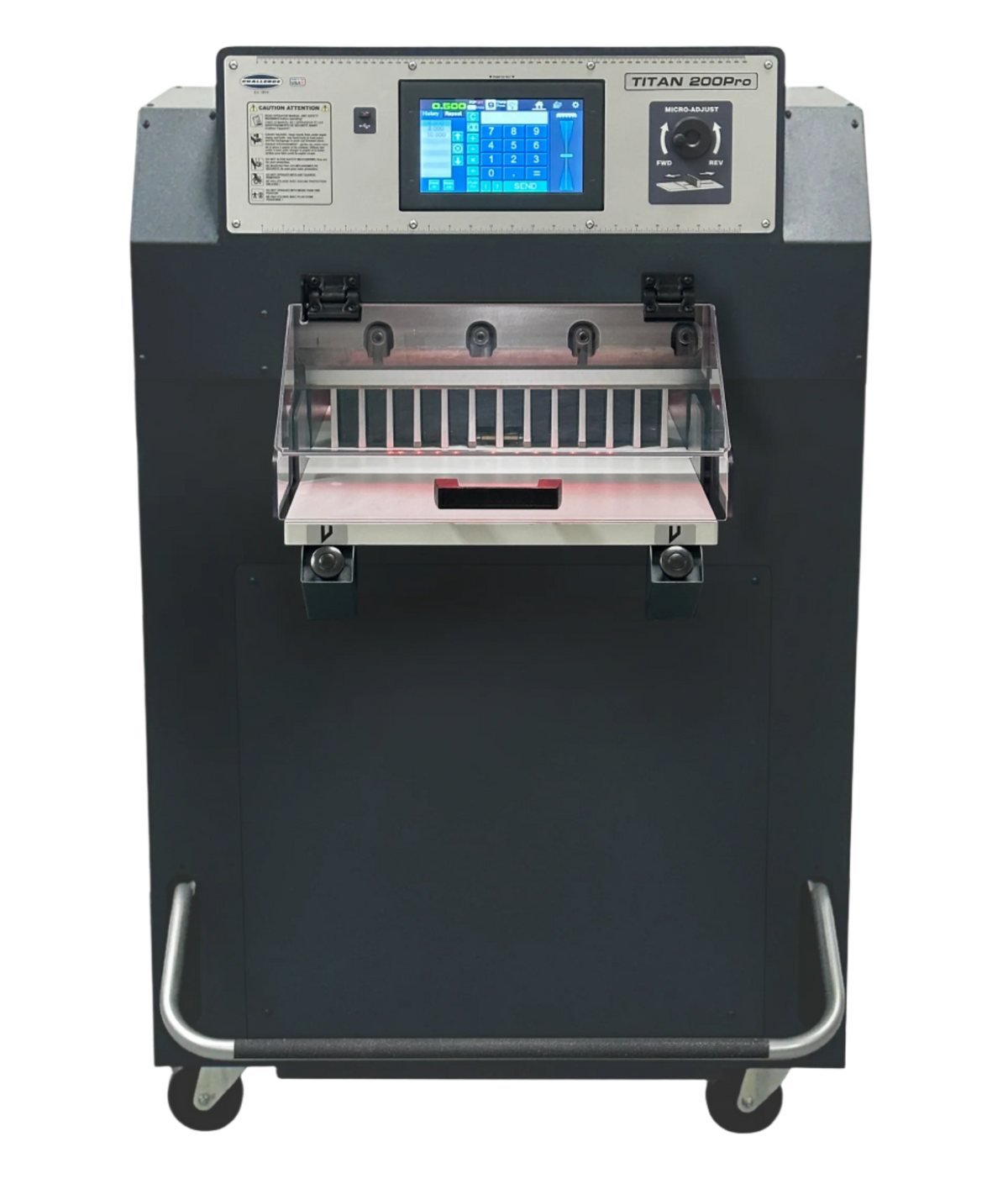

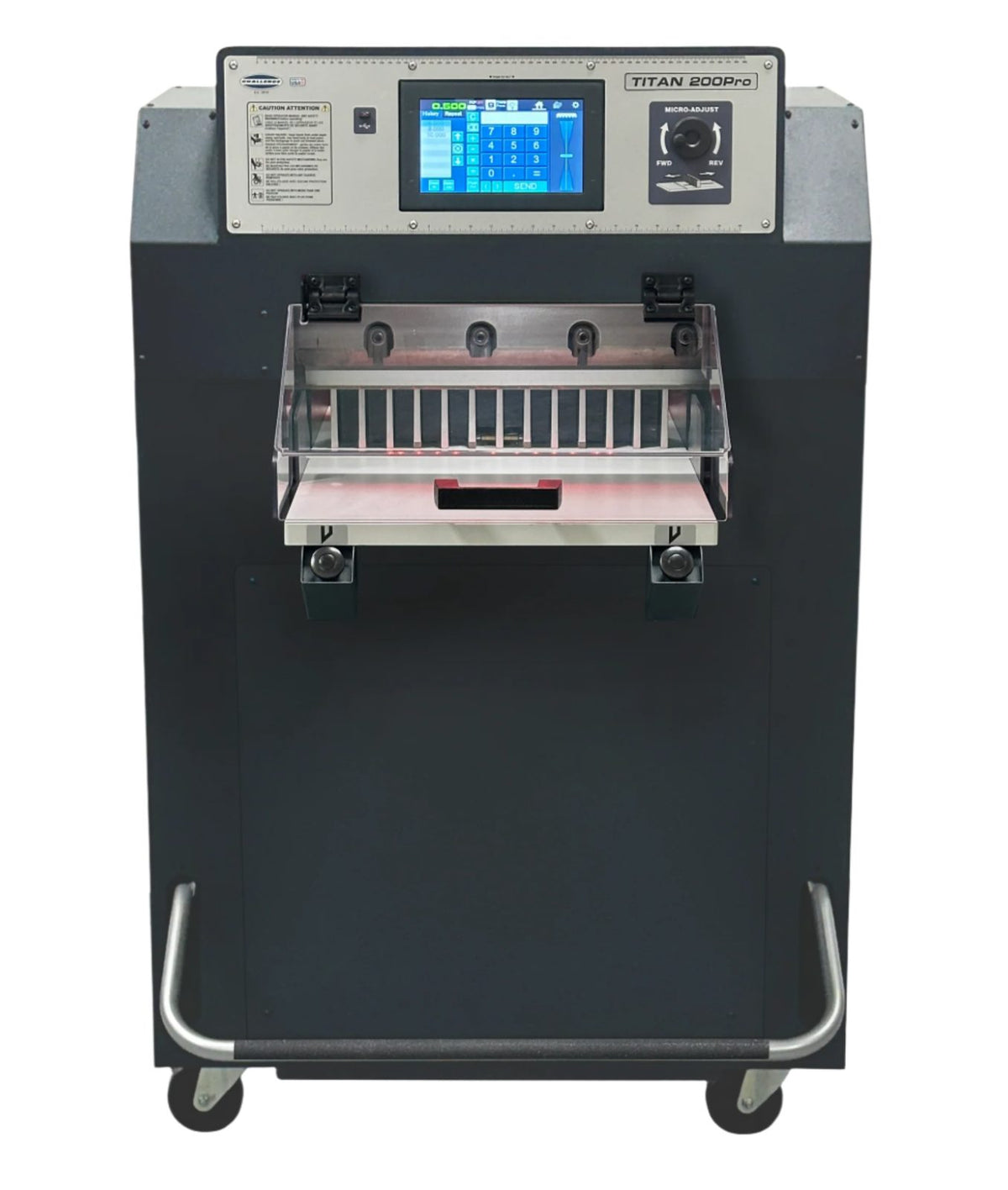

  • Challenge Titan 200 Pro Paper Cutter
  • The Challenge "Pro" Control System Demonstration and Instructional Video

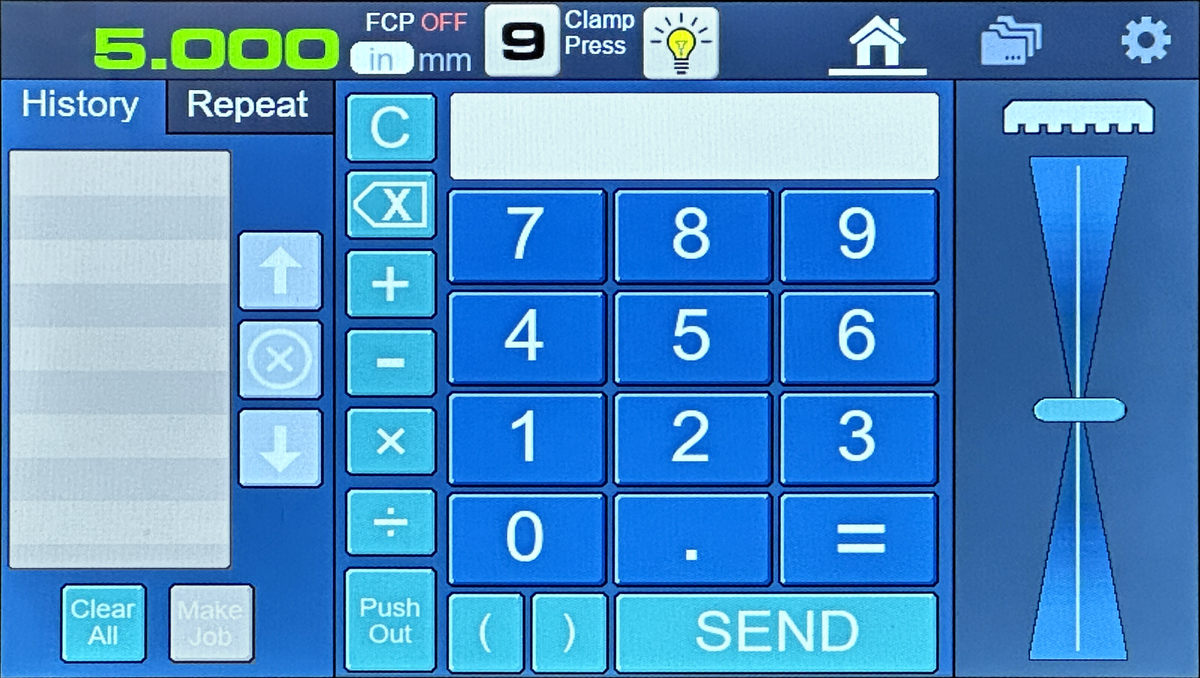

  • Titan 200 Pro Control Interface

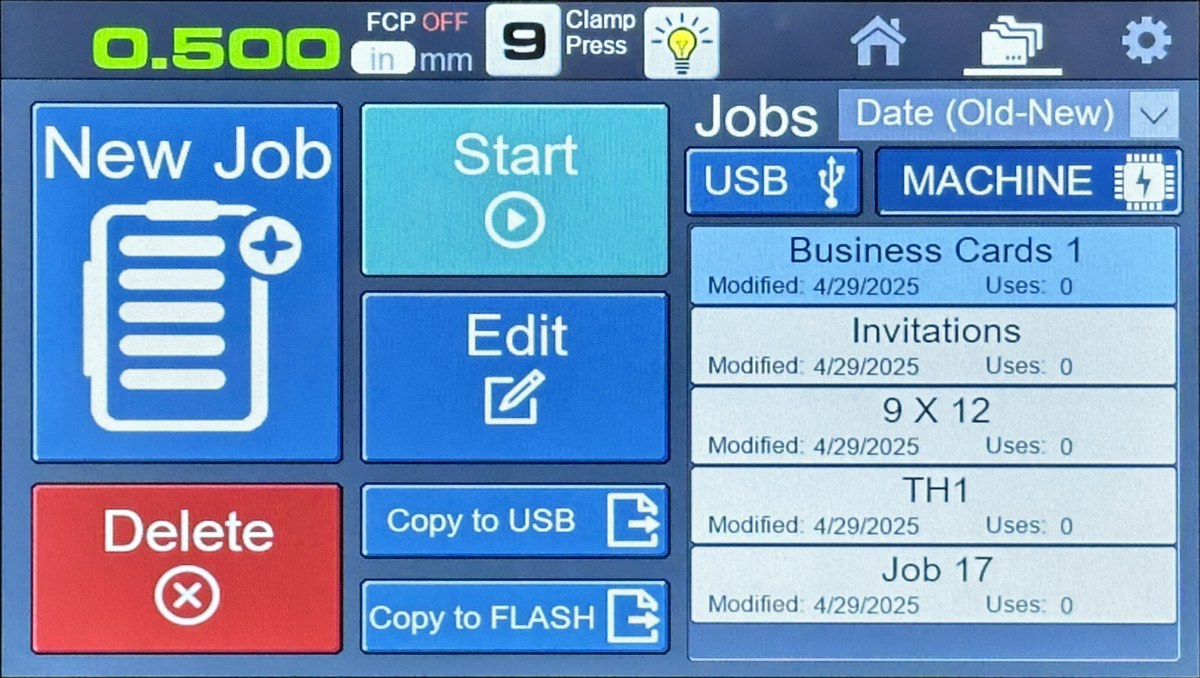

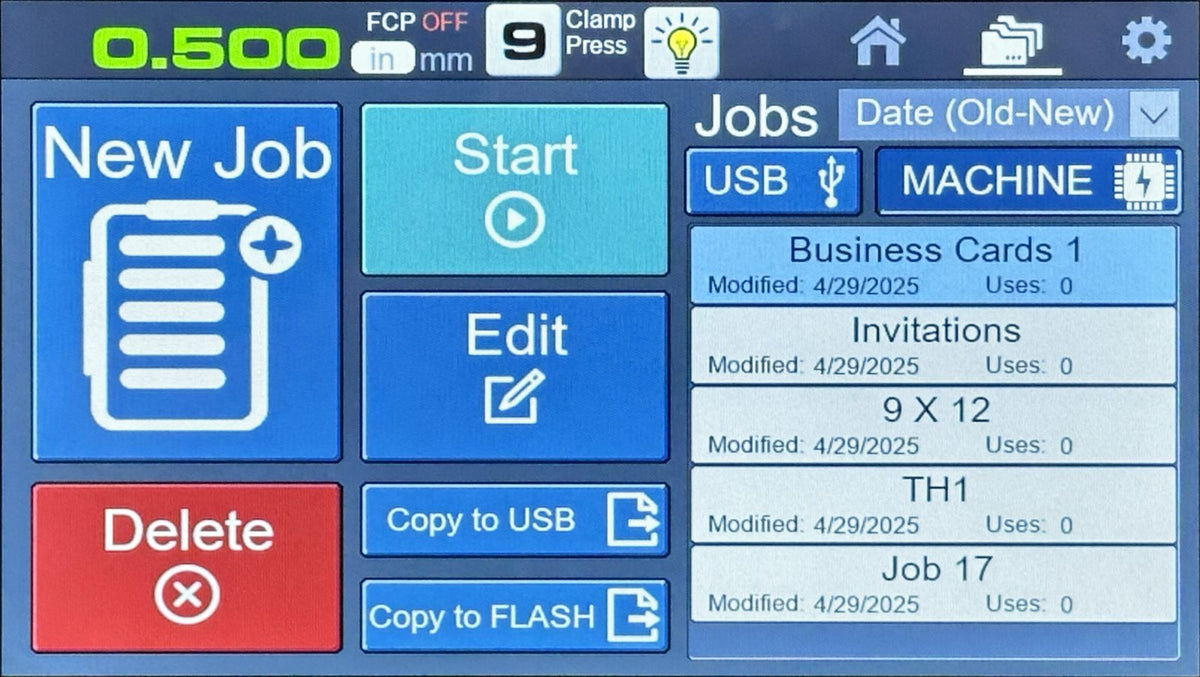

  • Titan 200 Pro Control Interface
1 5

Mid-State Litho

Challenge Titan 200 Pro

Challenge Titan 200 Pro

Item Number: CMC-200D-TS
Type
View full details

Titan 200 Pro — 20″ Programmable Hydraulic Paper Cutter

Production-grade 20″ cutter with a 9″ color touchscreen, programmable backgauge, and hydraulic cutting & clamping. Choose Plexiglas Shield or Light Beam Safety Curtain via variants.

Key Features

  • 9″ color touchscreen controller with adjustable viewing angle
  • Programmable backgauge control with job memory (99 programs / 9,801 cut positions)
  • Hydraulic clamp & knife with electronic clamp-pressure control
  • 20″ cutting width; up to 3-1/4″ stack height; LED optical cut-line
  • Automatic fraction↔decimal calculation; digital readout
  • Table slot closure device; motor runs only during cutting cycle
  • Rugged steel & cast-iron construction; lockable heavy-duty casters
  • USB port for storage/updates; optional ergo-touch cut buttons

Safety Features

  • Two-hand push-button cut cycle with timed, non-repeat control
  • Light-beam safety curtain or Plexiglas front shield; fully enclosed rear cover
  • UL/cUL listed; conforms to CE and ANSI B65.3
  • Independent mechanical foot-pedal clamping (standard on Pro)
  • Optional ergo-touch cut buttons reduce operator fatigue

Specifications — General

Cutting Width 20″ / 508 mm
Clamp Opening 3-1/4″ / 83 mm (≈3.0″ / 76 mm with false plate)
Minimum Cut (no plate) 1/2″ / 13 mm
Minimum Cut (with plate) 1-7/8″ / 48 mm
Table — In Front of Knife 15-1/4″ / 387 mm
Table — Behind Knife 20″ / 508 mm

Specifications — Dimensions

Overall Width ≈39-5/8″ / 1,006 mm
Overall Length 50-7/8″ / 1,293 mm
Overall Height ≈52-7/8″ / 1,340 mm
Table Height 36″ / 914 mm
Will Pass Through Door (assembled) 39-3/4″ (≈36-1/4″ with tables/guards removed)
Net / Shipping Weight 800 lb / 980 lb (363 kg / 444 kg)

Specifications — Electrical

Power 1-3/4 HP, 208/230 V, 60 Hz, 1-phase, 12 A (15 A service)
Receptacle NEMA 6-15R or 6-20R

Options & Accessories

  • Plexiglas machine side tables 12″ × 19″
  • Ergo-touch cut buttons (order with machine or field kit)
  • Independent mechanical foot-pedal clamping
  • False clamp plate (incl. book-trimming plate); magnetic clamp pads
  • Knives: inlaid HSS / inlaid carbon alloy tool steel
  • Plastic cutting sticks; book guides; jogging aid
  • Tilt-shield → light beam conversion kit (serial required)
  • Knife lifter assembly; spare parts kit; knocked-down ship option

Applications

Printed sheets & digital output • bound book blocks • brochures & sell sheets • NCR & sets • thick media trimming for high-volume production

Benefits

  • Fast, repeatable setups via stored programs and digital readout
  • Clean, consistent cuts with hydraulic drive & electronic clamp control
  • Meets modern safety standards (shield or light curtain)
  • Compact footprint with industrial-grade build quality

Standard equipment: (2) HSS knives, (3) cutting sticks, jogging aid, manual, tool kit, and knife-change safety holder. Specifications subject to change without notice.
