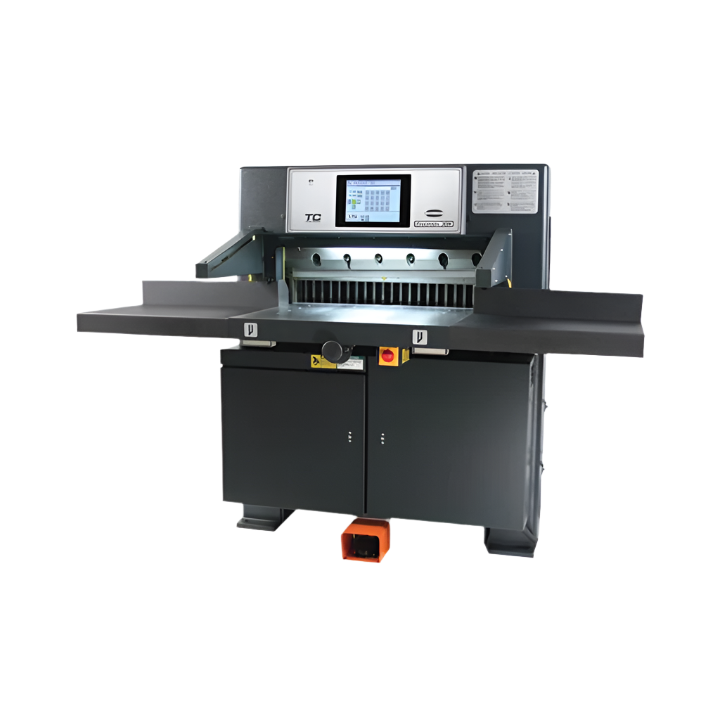

• Champion 370 TC hydraulic 37-inch programmable paper cutter for commercial print finishing

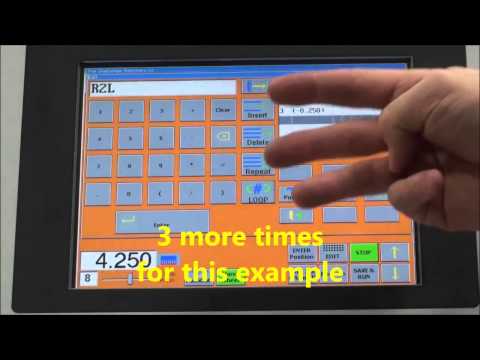

  • Challenge Machinery TC Control System Operation Video
1 2

Challenge

Champion 370 TC Hydraulic Paper Cutter (37")

Champion 370 TC Hydraulic Paper Cutter (37")

Item Number: 370TC
View full details

Champion 370 TC — 37″ Programmable Hydraulic Paper Cutter

Flagship 37″ production cutter with TC touch control, powered backgauge, electronic clamp-pressure control, and heavy-duty cast-iron/steel construction.

Key Features

  • 10.5″ TC color touchscreen; fully programmable, menu-driven control
  • Hydraulic cutting & clamping with powered backgauge
  • Electronic clamp pressure control (programmable per cut)
  • Variable mode data entry (fraction/decimal/metric) + auto fraction↔decimal conversion
  • LED cut-line indicator; table slot closure device; optional air table
  • USB import & .csv program recognition; repeat & loop commands; barcode reader option
  • UHMW adjustable knife-bar gibs; rugged cast-iron/steel build for long service life

Safety Features

  • UL/cUL listed; conforms to CE and ANSI B65.3
  • Light-beam safety curtain; two-hand timed, non-repeat cut buttons
  • Knife safety latch; rear table cover with see-through panels
  • Self-diagnostics and error indication; optional ergo-touch buttons

Specifications — General

Cutting Width 37″ / 940 mm
Clamp Opening (w/out / with false plate) 5-1/8″ / 130 mm · 4-7/8″ / 124 mm
Clamping Force (min / max) ≈1,963 lb / 7,000 lb (873 / 3,100 daN)
Minimum Cut (w/out / with false plate) 3/4″ / 19 mm · 2-5/8″ / 67 mm
Maximum Cut Depth 40″ / 1,020 mm
Table — In Front / Behind Knife 25″ / 635 mm · 40″ / 1,020 mm
Standard Side Tables 24″ × 36″ / 610 × 910 mm

Specifications — Dimensions

Overall Height 60″ / 1,530 mm
Overall Width (w/ side tables) 109″ / 2,770 mm
Overall Width (w/out side tables) 63-1/2″ / 1,620 mm
Overall Length 87″ / 2,210 mm
Will Pass Through Opening (assembled / table+treadle out) 63-1/2″ / 1,620 mm · 36″ / 914 mm
Net / Shipping Weight (approx.) 3,750 lb / 4,600 lb (1,701 kg / 2,086 kg)

Specifications — Electrical

Standard Motor 10 HP, 208 V / 38 A or 230 V / 33 A, 60 Hz, 3-Phase (service size 50 A)
Custom Motor (60 Hz) 10 HP, 460 V, 16.5 A, 3-Phase (service size 30 A)
Custom Motor (50 Hz) 380/415 V, 20 A, 3-Phase (service size 30 A), ≈16 kW

Options & Accessories

  • Custom (high-voltage) motor option; plated table option
  • Side tables with air (factory or field install); air table on main bed
  • Knocked-down shipping (fits 43″ door)
  • Ergo-Touch cut buttons (order with machine) or field-install kit
  • Barcode reader & software (TC); Cutter Care Kit

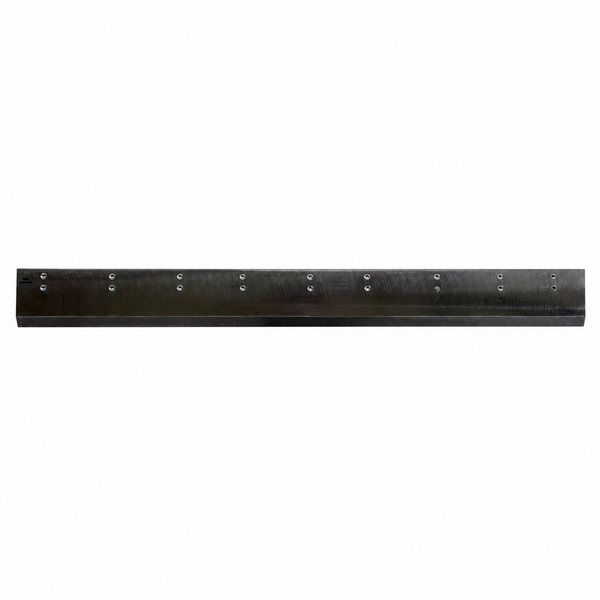

  • Knives 37″ inlaid HSS; magnetic clamp pads; plastic cutting sticks
  • Book guides; jogging aid; waste wagon; knife lifter assembly
  • False clamp plate; Shell 46 hydraulic oil (5-gal); spare parts kit

Applications

Large-format commercial print, book blocks, labels & sheet division, wide-format finishing, brochures & sell sheets, and thick-media stack cutting.

Benefits

  • Fast setups and repeatable accuracy with TC programming
  • Reduced waste via per-cut clamp-pressure control
  • Operator confidence and safety with light curtain & dual-button cut
  • Heavy-duty build for long, low-maintenance service life

Standard equipment: paper deflector, false clamp plate, (2) inlaid HSS knives, (4) cutting sticks, jogging aid, manual, tool kit, and knife-change safety holder. Specifications subject to change.
