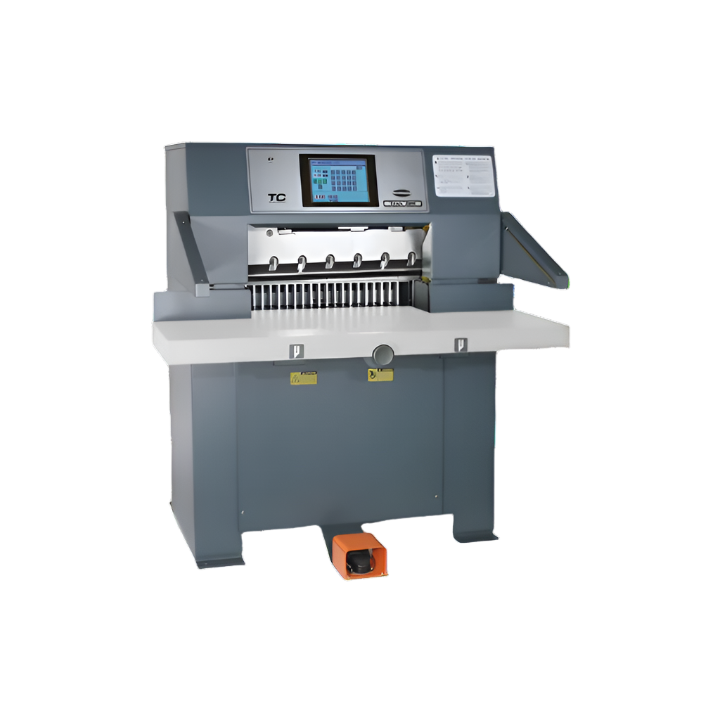

• Challenge Titan 265 TC hydraulic 26.5-inch programmable paper cutter for commercial print finishing

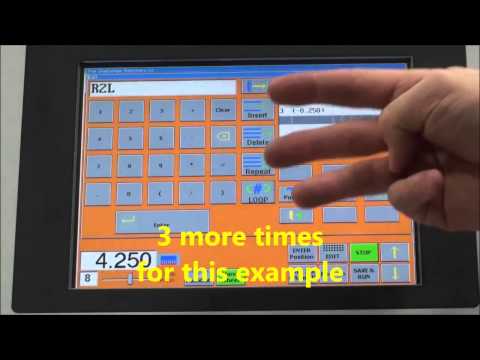

  • Challenge Machinery TC Control System Operation Video

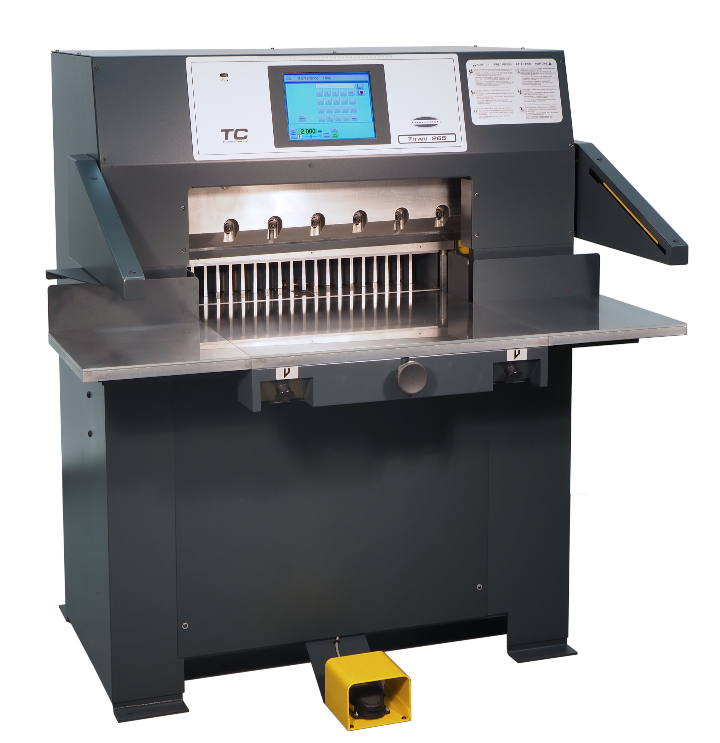

  • Challenge Titan 264 TC
1 3

Challenge

Challenge Titan 265 TC

Challenge Titan 265 TC

Item Number: CMC-265D-S
View full details

Titan 265 TC — 26.5″ Programmable Hydraulic Paper Cutter

Production-class 26.5″ cutter with TC touch control, powered backgauge, hydraulic cutting & clamping, and electronic clamp pressure control for repeatable accuracy.

Key Features

  • 10.5″ color TC touch-screen; fully programmable controller
  • Hydraulic cutting & clamping with powered backgauge
  • Electronic clamp pressure control; programmable per cut
  • Variable mode data entry (fraction, decimal, metric) + auto fraction↔decimal conversion
  • Red LED cut-line indicator; table slot closure device
  • Rugged steel & cast-iron construction; UHMW adjustable knife-bar gibs
  • USB program import; .csv program file support; repeat & loop commands
  • Optional air table; optional barcode reader & software

Safety Features

  • UL/cUL listed; conforms to CE and ANSI B65.3 safety specifications
  • Light-beam safety curtain protecting the cutting area
  • Two-hand timed, non-repeat cut buttons with knife safety latch
  • Rear table cover; machine self-diagnostics and error indication
  • Optional ergo-touch cut buttons reduce operator fatigue

Specifications — General

Cutting Width 26-1/2″ / 673 mm
Clamp Opening (w/out / with false plate) 4″ / 102 mm · 3-3/4″ / 95 mm
Clamping Force (min / max) 1,470 lb / 4,000 lb (652 / 1,800 daN)
Minimum Cut (w/out / with false plate) 5/8″ / 16 mm · 1-7/8″ / 48 mm
Maximum Cut Depth 28″ / 711 mm
Table — In Front / Behind Knife 24″ / 610 mm · 28″ / 711 mm
Side Tables (each) 16″ × 13.5″ standard; optional set 20″ × 26″

Specifications — Dimensions

Table Height 36″ / 914 mm
Overall Width / Length / Height 54″ / 1,372 mm · 70.3″ / 1,785 mm · 60.3″ / 1,532 mm
Will Pass Through Opening (assembled / table out) 54″ / 1,372 mm · 31″ / 790 mm
Net / Shipping Weight (approx.) 1,780 lb / 2,300 lb (808 kg / 1,043 kg)

Specifications — Electrical

Standard Motor 5 HP, 208/230 V, 60 Hz, 3-Phase, 25 A (service size 30 A)
Custom Motor (50 Hz) 5 HP, 380/415 V, 50 Hz, 3-Phase, 10 A (service size 20 A)

Options & Accessories

  • Air table option; knocked-down shipping (fits 35″ door)
  • Large side-table option (20″ × 26″ set)
  • Ergo-Touch cut buttons (order with machine) or field-install kit
  • Barcode reader & software (TC)
  • Rotary phase converter kit; custom high-voltage motor option
  • Knives (inlaid HSS), false clamp plates (standard / book trimming)
  • Magnetic clamp pads; plastic cutting sticks; book guides; jogging aid
  • Shell 46 hydraulic oil (5 gal); waste wagon; knife lifter assembly
  • XG/XT upgrade to TC system kit; spare parts kit

Applications

High-volume trimming for digital sheets and wide-format output, bound book blocks, brochures & sell sheets, labels and sheet division, and thick-media finishing.

Benefits

  • Fast setup and repeatable accuracy with programmable TC control
  • Reduced waste via programmable clamp pressure per cut
  • Safer operation with light curtain and two-hand timed cut
  • Heavy-duty build for long service life with minimal maintenance

Standard equipment: false clamp plate, (2) inlaid HSS knives, (4) cutting sticks, jogging aid, manual, tool kit, and knife-change safety holder. Specifications subject to change.
