ColorCut FB775 Flatbed Cutter
ColorCut FB775 Flatbed Cutter
Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:
How to Purchase This Item:
How to Purchase This Item:
- Web: Sales Contact Form
- Call: 1-800-343-4231
- Email: sales@midstatelitho.com
- Text: (810) 238-7370

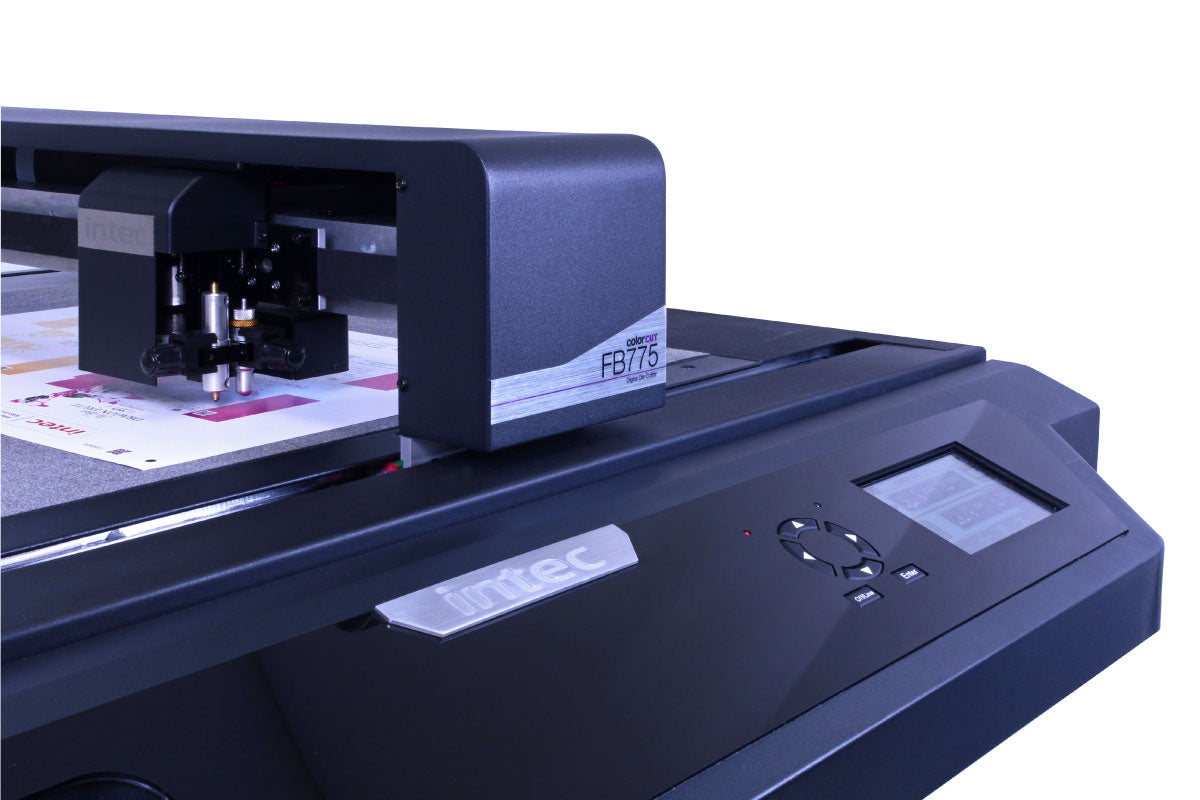

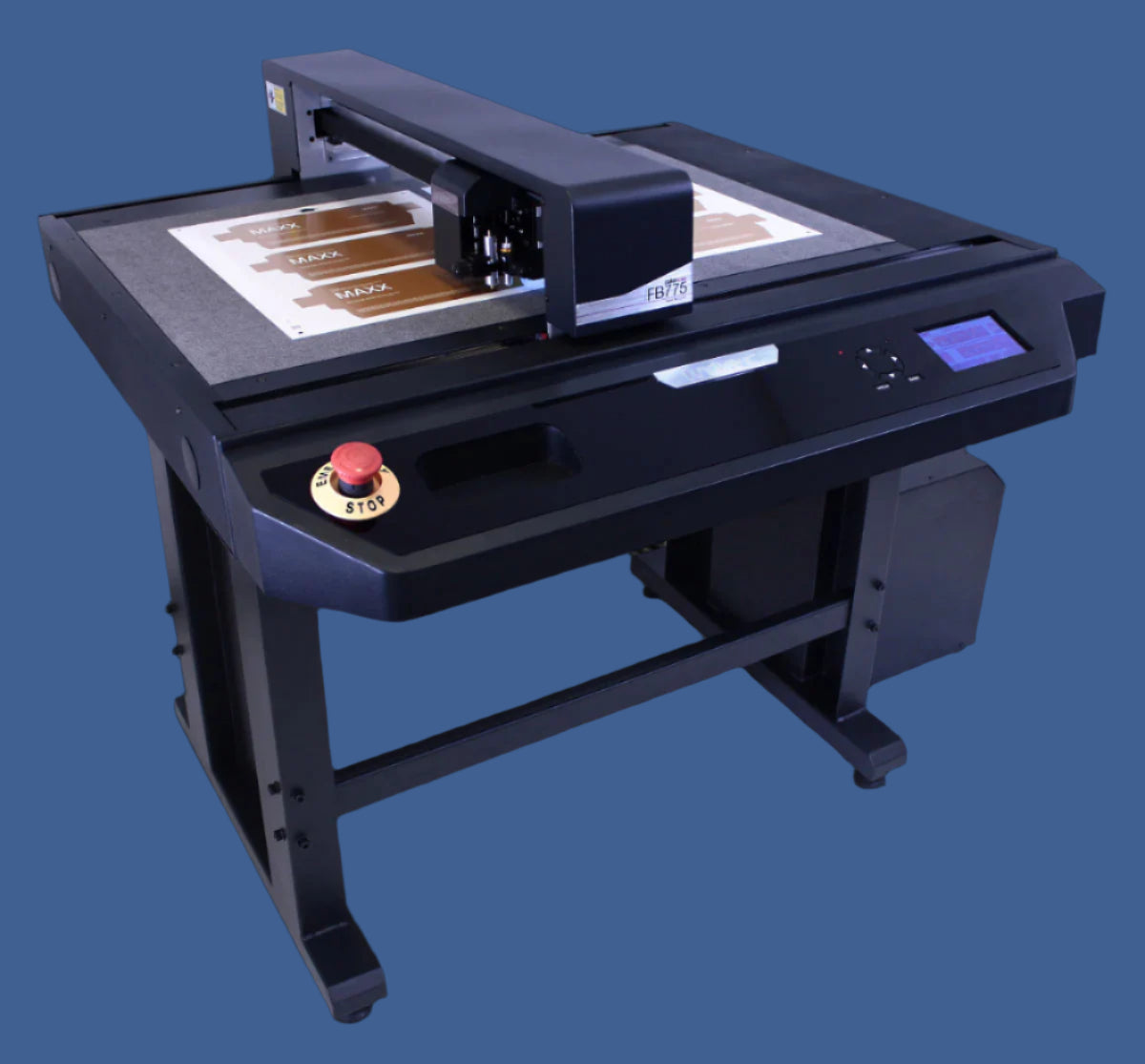

The Intec Morgana ColorCut FB775 is a high-performance, mid-range flatbed cutter designed for precision cutting, creasing, and perforation. Built for B2+ format production, it delivers unmatched efficiency and versatility for packaging, labels, point-of-sale displays, and prototyping.
Key Features & Benefits
🔹 Large Format Cutting – Handles B2+ sheets (580mm x 800mm), allowing 2-up SRA3 cutting, maximizing productivity.
🔹 Powerful Cutting & Creasing – Dual tool carriage with 1,200gf cutting force and 1,500gf creasing pressure, capable of handling cardstocks up to 1,000 microns (800gsm).
🔹 Ultra-Fast Production – Cutting speeds up to 1,200mm/sec, powered by advanced servo motors for maximum efficiency.
🔹 QR Code Job Retrieval – On-the-fly job setup with automated cut file recognition, ensuring seamless workflow and minimal setup time.
🔹 Vacuum Suction Hold-Down – 750W vacuum with an acoustic muffler ensures secure sheet placement for high-accuracy cuts.
🔹 Productivity Mode – Processes multiple sheets continuously, automatically locating and adjusting to each new sheet on the table.
🔹 Integrated ColorCut Pro Software – Standalone cutting software with Adobe® Illustrator® and CorelDRAW® plugin support, streamlining the design-to-production process.
🔹 Smart Camera System – Vision3 CCD camera precisely registers cut files to pre-printed artwork, delivering consistent and accurate finishing.
Technical Specifications
| Specification | Details |
|---|---|
| Format / Size | B2+ (2 x SRA3) |
| Maximum Media Area | 580mm x 800mm |
| Effective Cutting Area | 480mm x 715mm |
| Stand | Included |
| Vacuum Hold-Down | 750W suction system with acoustic muffler |

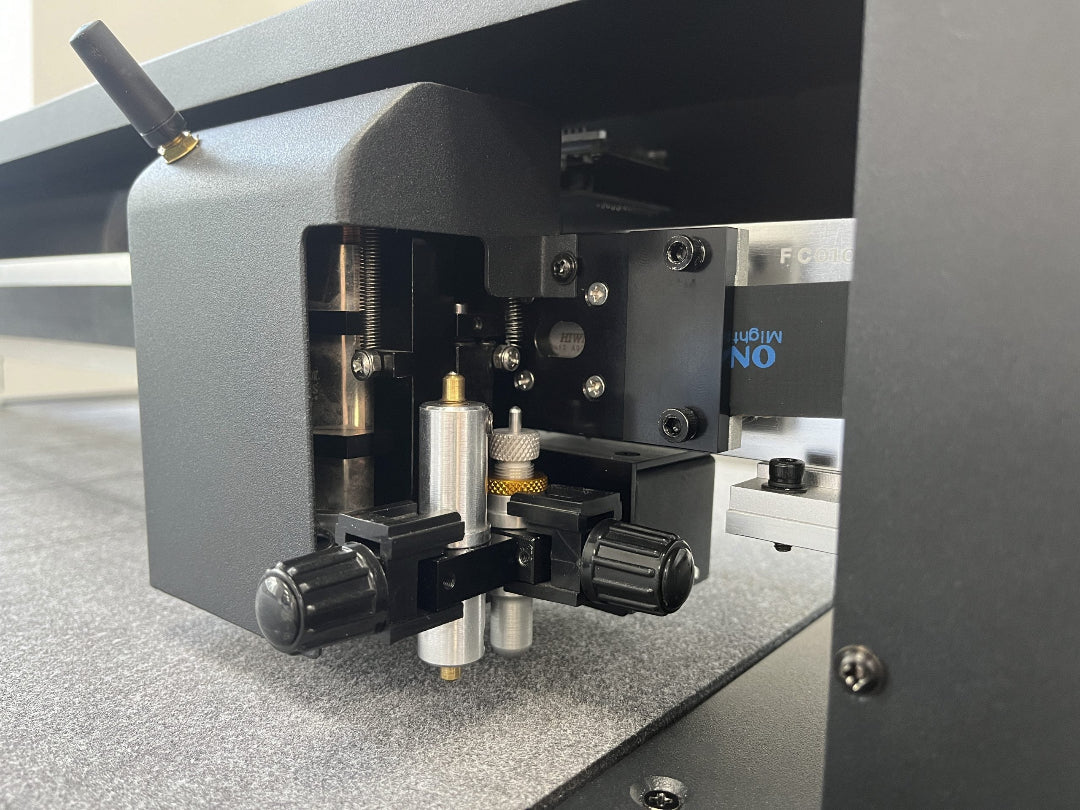

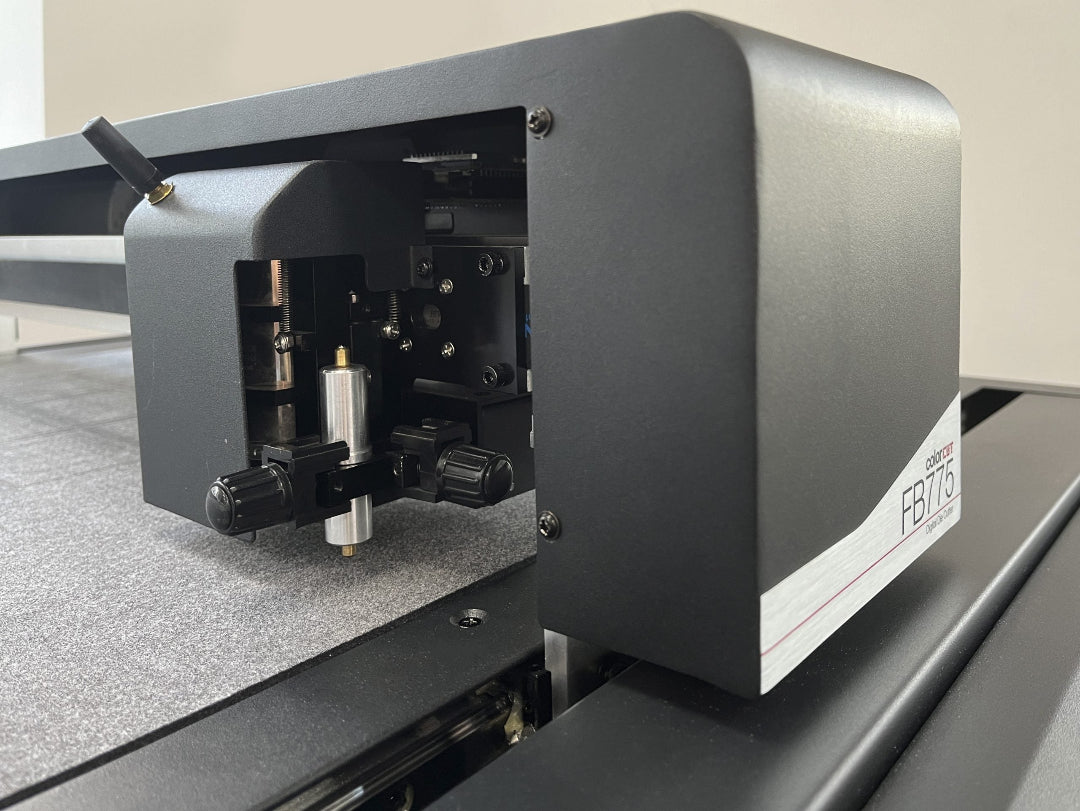

| Cutting Carriage | Dual tool system (independent cut & crease tools) |
| Cutting Force | Tool 1: Cut – up to 1,200gfTool 2: Crease – up to 1,500gf |
| Max Cutting Depth | Paper/card up to 1,000 microns (800gsm) |
| Cutting Speed | 1,200mm/s (Fast Mode), 960mm/s (Standard), 750mm/s (High Definition) |
| Accuracy | +/- 125 microns |

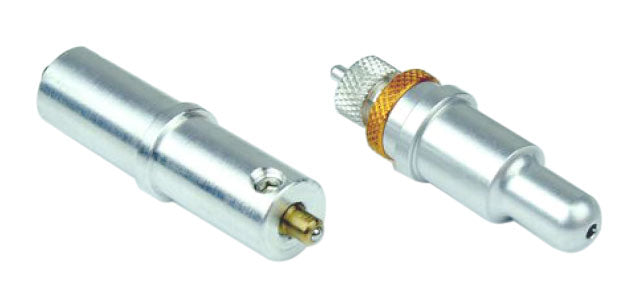

| Mountable Tools | Blade holder, double-ended creasing tool, calibration pen |
| Software | ColorCut Pro 5 – PC-based standalone software with barcode & QR code recognition |
| General | Weight: 82kgMachine dimensions: 1150mm x 1100mm x 1010mm |
Applications
📦 Custom Packaging & Cartons – Creates high-quality, digitally cut & creased boxes with precision.
🛍️ Point-of-Sale Displays – Retail signage, displays, and promotional materials with professional finishing.
🎨 Labels & Decals – Kiss-cut vinyl stickers, novelty cards, and intricate cut designs.
🛠️ On-Demand Prototyping – Ideal for one-off sample production and proofing.
ColorCut Pro Software
The Intec ColorCut Pro software is a powerful digital cutting platform with:
- QR Code Recognition – Instant cut file retrieval, ensuring error-free automated job selection.
- Job Library Management – Stores and reuses cut files for high-efficiency workflow.
- Integration with Adobe® & CorelDRAW® – Simplifies contour cutting & job processing.
The Morgana ColorCut FB775 delivers unmatched speed, precision, and automation, making it the perfect choice for businesses looking to enhance digital print finishing and expand into packaging, labeling, and POS applications.
