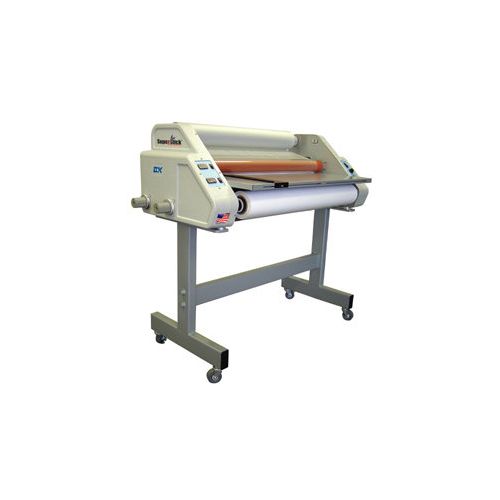

D&K EXP42 Plus wide format laminator with dual heated rollers, integrated control panel, and mobile stand, designed for high-quality lamination of posters, prints, and wide-format graphics.
D&K

D&K EXP42 Plus Laminator

The D&K Expression 42 Plus is an industrial 42" wide-format roll laminator for mounting and finishing. Dealer pricing, financing & service at Mid-State Litho.

Pricing by quote

We will quote equipment price, freight to your ZIP, and any install or service needs.

Tax-exempt? Apply once, check out tax-free
Parcel shippingShips by ground carrier.
Talk to a finishing expertReal specialists by phone.
Financing availableLease & purchase options.
Factory-trained install & serviceWe deliver, install & support.

Downloads

Details & specifications

The D&K EXP42 Plus is a wide format laminator built for heavy-duty use in print finishing shops. It mounts, laminates, and encapsulates large-format digital output using heated rollers and runs several film types. It is built for simple operation and long service life in busy shops.

Key features

  • Mounter, laminator, and encapsulator in one machine
  • Runs thermal, pressure-sensitive, and low-melt films
  • Variable speed up to 10 ft/min with heated silicone rollers
  • Accepts substrates up to 1/2" thick and film rolls up to 8" in diameter
  • Independent temperature controls with LED readouts
  • Adjustable roller pressure
  • Auto-grip shafts and roller lift for fast film loading
  • Includes a heavy-duty stand with locking casters
  • Made in the USA

Specifications

Spec Value
Working width 41"
Max substrate thickness 1/2"
Max speed 0-10 ft/min
Roller diameter 3"
Power requirements 230V, 60Hz, 30A, 1 phase
Machine dimensions 57" W x 19.25" H x 27.5" D (with feed tray)
Machine weight 205 lbs
Shipping dimensions 72" x 40" x 38"
Shipping weight 420 lbs

Applications

  • Wide format print finishing
  • Mounting boards or posters
  • Encapsulation of large documents
  • Scratch-free graphic protection

Available options

  • Foot switch for hands-free operation
  • Slitter kit for inline trimming
  • Release liner take-up for PSA films

Benefits

  • Built for wide format jobs and heavy daily use
  • Simple operation and maintenance
  • Smooth, bubble-free output across material types
  • Flexible film and mounting options
