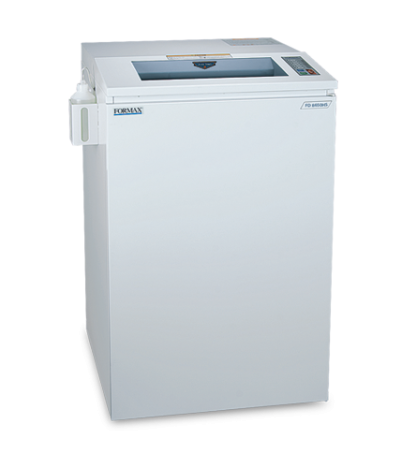

Formax FD 8650HS High-Security Office Shredder (P-7 / NSA Level 6)

The Formax FD 8650HS is an office-size, high-security shredder that destroys documents to a classified grade without a central, floor-standing machine. Mid-State Litho is an authorized Formax dealer. We deliver, install, and service the 8650HS across Michigan and the Great Lakes. It fits legal, finance, and government offices that need on-site destruction of sensitive material.

Per Formax, the NSA evaluated the FD 8650HS. It meets NSA/CSS specification 02-01 for Level 6 high-security cross-cut shredders, which corresponds to DIN 66399 grade P-7. It shreds up to 15 sheets at a pass at roughly 24 feet per minute to a 1/32 inch by 3/16 inch particle.

An automatic oiler periodically lubricates the cutting head, so the machine holds its rated performance with less hands-on maintenance. The extra-wide feed opening takes documents up to 16 inches across. The waste bin holds up to 53 gallons. An ECO mode puts the unit into standby after five minutes idle.

What P-7 (DIN 66399) and NSA Level 6 mean

DIN 66399 grade P-7 is the highest commercial destruction level: it reduces a sheet to particles of 5 square millimeters or smaller. The NSA/CSS Level 6 evaluation certifies that same grade for classified material. So P-7 (DIN 66399) and NSA Level 6 describe the same thing from two standards bodies.

P-4 and P-5 machines are fine for ordinary confidential paper. P-7 (the FD 8650HS) is the grade you specify when the documents are classified or top-secret. Your security policy can name either one: P-7 (DIN 66399) or NSA Level 6. Compare the full high-security shredder range for other P-7 options.

Specifications

Choosing a high-security shredder: the Formax P-7 ladder

The FD 8650HS sits in the upper-middle of Formax's P-7 high-security line. Use four axes to place it against its siblings: sheet throughput, bin capacity, footprint, and price. Click any model to see live pricing.

• FD 8300HS: compact deskside P-7 for a single workstation.
• FD 8400HS-1: a step up in feed and bin capacity.
• FD 8500HS: the office unit one tier below the 8650HS.
• FD 8650HS (this model): 15-sheet feed, 53-gallon bin, automatic oiler, the upper-middle office tier.
• FD 8732HS: the floor-standing top of the line, with optical-media destruction.

If you need a smaller deskside footprint, step down to the 8300HS or 8400HS-1. If you destroy high daily volume or optical media, step up to the 8732HS. The 8650HS is the right pick for an office that wants industrial-strength P-7 destruction in an office-size cabinet.

Keep it running: the automatic oiler and the right oil

The FD 8650HS has an automatic oiler that periodically lubricates the cutting head. That oil keeps a P-7 micro-particle cutter at its rated throughput. Keep the correct consumable on hand: use shredder oil formulated for automatic oilers (sold as six one-quart bottles), not the manual pint oil meant for hand-oiling. You can order auto-oiler oil and related consumables from our supplies and consumables range.

Why buy from Mid-State Litho

Mid-State Litho is a second-generation family integrator that sells and services office and production equipment, in business since 1984. On an install-class machine like the 8650HS, the service and financing matter as much as the spec sheet. We cover Michigan and the Great Lakes with factory-trained technicians. We deliver, install, train your team, and keep the machine running. Financing is available. See service and support and financing and leasing, or browse the full paper shredder lineup.

Frequently asked questions

Is the FD 8650HS NSA approved, and what is P-7? The NSA evaluated the 8650HS, and it meets NSA/CSS specification 02-01 for Level 6. That level corresponds to DIN 66399 grade P-7, the highest commercial destruction grade (particles of 5 square millimeters or smaller).

How many sheets does it shred at once? Up to 15 sheets per pass at roughly 24 feet per minute, per the Formax specification above.

What is the automatic oiler, and what oil does it use? A built-in oiler that periodically lubricates the cutting head. Refill it with shredder oil made for automatic oilers (the six-bottle one-quart auto-oiler oil), not manual pint oil.

Is it suitable for classified documents? Yes. At P-7 / NSA Level 6 it is rated for classified and top-secret material.

Do you install and service it in Michigan? Yes. Mid-State Litho delivers, installs, trains your team, and provides factory-trained service across Michigan and the Great Lakes.
