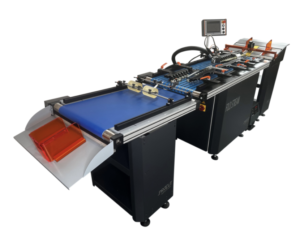

Graphco Fold Stream Folding & Gluing System
Streamline production with the FoldStream. Featuring user-friendly setup, precise folding, and gluing for presentation folders, mailers, boxes, and more.
Request a Quote
Tell us what you need—we’ll follow up quickly with pricing and options.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications

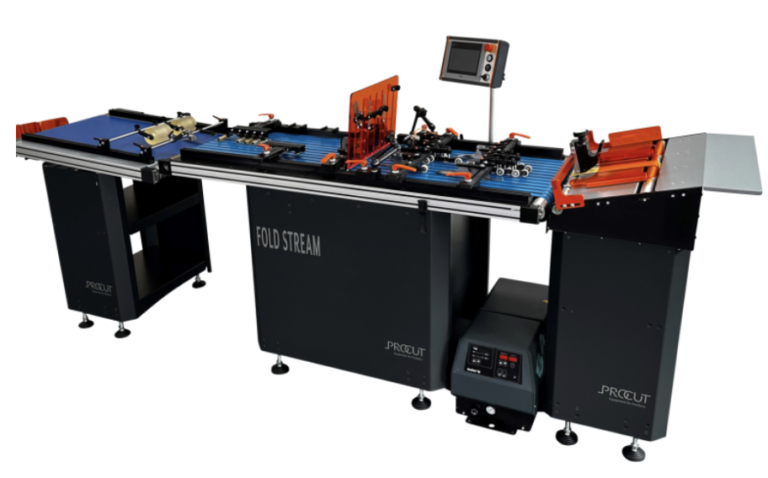

The Graphco FoldStream is a versatile and efficient folding and gluing solution, designed to meet the demands of both digital and offset production workflows. With its innovative multi-transport-belt concept, this system eliminates the need for belt adjustments during changeovers, offering unmatched ease of use and precise handling for a wide range of applications. Ideal for creating presentation folders, mailers, promotional items, and more, the FoldStream is the ultimate solution for streamlined finishing operations.
Key Features
🔹 Multi-Transport-Belt Concept: Enables smooth product transport and simplifies setup by removing the need for belt adjustments, significantly reducing changeover times.
🔹 Adjustable Spring-Loaded Drive Rollers: Ensures even downward pressure on the product for consistent and accurate folding results.
🔹 Precision Adjustable Ploughs: Ploughs can be adjusted in both height and angle to deliver flawless folding of flaps, even for complex designs.
🔹 Interactive Touch-Screen Control: Features an intuitive interface for easy control of machine speed and precise glue application in different positions and lengths.
🔹 Quick-Release Tooling: Simplifies the positioning, adjustment, and maintenance process, improving overall production efficiency.
🔹 Optional Add-Ons: Enhance productivity with complementary equipment, such as:
- Continuous feeder
- Batch counter
- Second gluing head
- Tipper plate
- Turning unit
- Side lay
- Tape applicator
- Shingle delivery unit
Applications
The Graphco FoldStream is perfect for a variety of projects, including: Presentation folders, Ticket sleeve, Envelope, Pouch boxes, Mailers, Greeting cards, Folding plans, Promotional articles, Folding games, Pillow boxes, Wallets, Pocket folders, Gable boxes, Tape applications, and more!
Specifications
| Specification | Details |
|---|---|
| Paper Weight | 180 to 400 g/m² |
| Blank Width | 60 to 520 mm |
| Blank Length | 60 to 450 mm |
| Machine Speed | 2 to 50 m/min |
| Electrical Consumption | 3.5 kW |
| Electric Connection | 230 V / Single Phase / 50-60 Hz |
| Pneumatic Connection | 6 bar / 5 L/min |
