Plockmatic

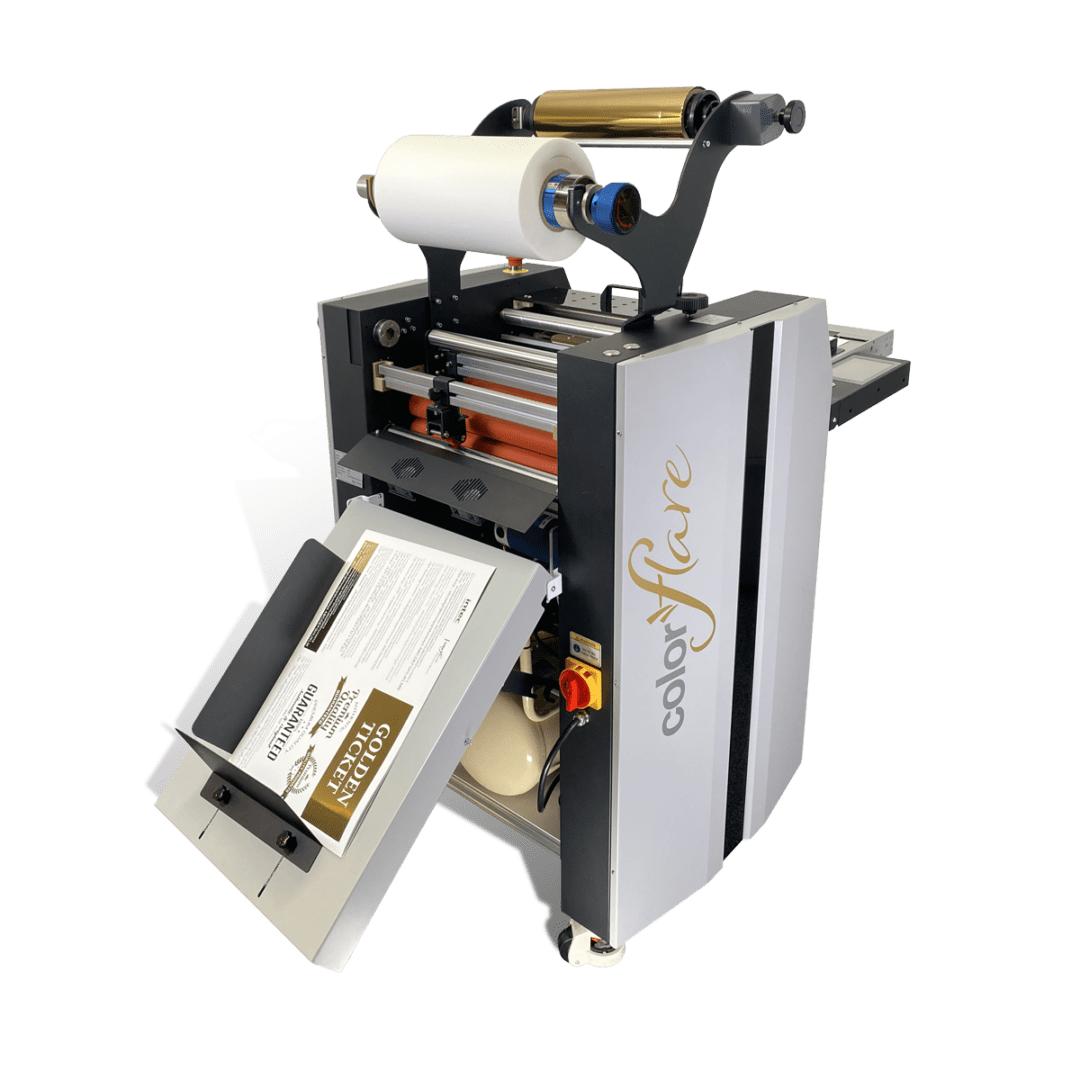

ColorFlare CF2000
ColorFlare CF2000
Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:
How to Purchase This Item:
How to Purchase This Item:
- Web: Sales Contact Form
- Call: 1-800-343-4231
- Email: sales@midstatelitho.com
- Text: (810) 238-7370
Automatic Laminator and Foiler
The Morgana CF2500 is a high-speed automatic laminator and foiler designed for commercial and digital print applications. With its advanced oil-heated rollers, adjustable hydraulic pressure, and precise feeding system, it delivers professional-quality lamination and foiling on a variety of media.
Key Features
🔹 Automatic Air-Suction Feeding – Ensures smooth and accurate sheet handling for uninterrupted operation.
🔹 High-Speed Production – Processes up to 2,000 SRA3 sheets per hour for maximum efficiency.
🔹 Precision Registration – Self-centering guides and automatic sheet registration maintain perfect alignment.
🔹 Oil-Heated Rollers – Delivers even heat distribution for consistent lamination and foiling results.
🔹 Hydraulic Pressure System – Adjustable up to 1 metric tonne (970 kg) for a flawless finish.
🔹 Pneumatic Burst Separation – Clean, efficient separation of laminated sheets with micro-perf technology.
🔹 Fully Adjustable Settings – Control speed, temperature, and pressure via the user-friendly touchscreen.
🔹 De-Curling System – Ensures perfectly flat output, even on heavy media.
🔹 Auto Stop Function – Stops for stack reloading, reducing downtime.
Specifications
| Specification | Details |
|---|---|
| Max Media Size | 15.3 x 28.1 inches (390 x 715 mm) |
| Min Media Thickness | 130 gsm |
| Max Media Thickness | 400 gsm |
| Lamination Speed | 1 m/min to 15 m/min |
| Lamination/Foil Thickness | 20-250 microns |
| Max Pile Height | 280 mm / 2500 sheets |
| Feeding Mode | Dual air suction |
| Max Temperature | 130ºC |
| Heating System | Oil heating |
| Max Roller Pressure | 1 metric tonne (970 kg) |
| Core Size | 3 inches (76 mm) |
| Laminating Rollers | Upper: High gloss chromium, Lower: silicon rubber |
| Power Supply | 220-240V, 50/60Hz, 3200W |
| Machine Weight | 838 lbs (380 kg) |
| Dimensions (W x D x H) | 68.1 x 31.5 x 58.3 inches (1730 x 800 x 1480 mm) |
Benefits
- Boost Production Efficiency – High-speed output with auto sheet registration for fast job completion.
- Enhance Print Durability – Protects printed materials with a high-quality laminated finish.
- Expand Creative Possibilities – Adds metallic, colored, holographic, or textured foils for premium effects.
- Minimize Waste – Pneumatic burst separation and precise feeding reduce misfeeds and material waste.
- User-Friendly Controls – Easily adjust settings via the intuitive touchscreen interface.
Ideal Applications
📄 Commercial Printing – High-quality lamination and foiling for brochures, cards, and marketing materials.
🖨️ Digital Printing – Enhances the durability of short-run and variable data prints.
📚 Booklet Covers – Adds protective or decorative finishes to booklet and catalog covers.
✨ Specialty Finishing – Creates luxurious, high-impact foiled designs for premium prints.
Software Features
✔ Automated Job Memory – Save frequently used settings for quick recall.
✔ Real-Time Performance Monitoring – Adjust settings dynamically for optimal results.
✔ Customizable Pressure and Temperature – Ensures perfect results on different stock types.
