Graphic Whizard

Graphic Whizard SP-Bander

Graphic Whizard SP-Bander

How to Purchase This Item:

SP-Bander Product Details:

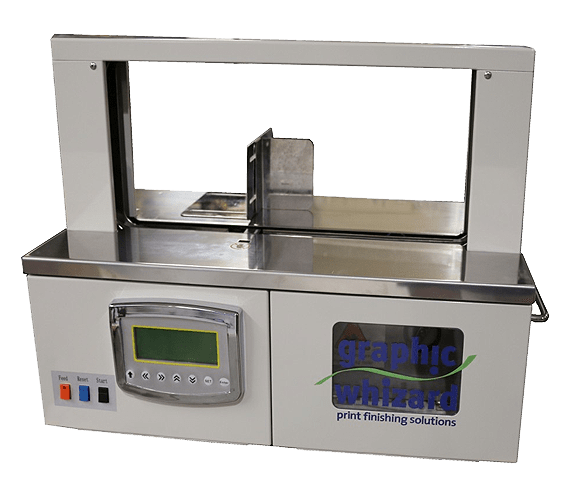

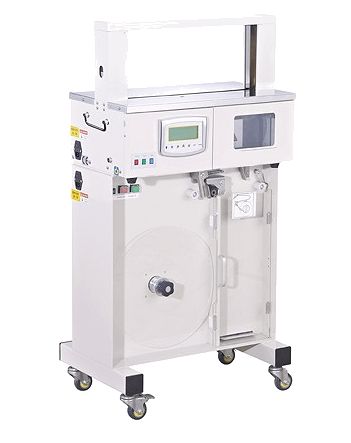

Paper or poly band business cards, postcards, and brochures with the SP bander. Also available with a high-capacity stand. Banding your work is easy and more economical than boxing or shrink wrapping.

  • 20 pieces per minute
  • 110-130V, 50/60Hz, 15A
  • Minimum 1.2" wide x 0.4" high (3.04 x 1.01cm)
  • Maximum 18" wide x 7.9" high (45.72cm x 20.06cm)

Features:

  • Available in either paper or poly rolls
  • Adjustable backstops for feeding ease
  • LCD readout for operation adjustments
  • Adjustable lag time for variable feeding
  • Adjustable tension for duplicate jobs
  • Optional Jump roll stand available for high volume users
  • Closed arch system for feeding ease and durability
  • Quick release to cut and eject the banding in case of misfeeds
  • Manual, Foot-pedal, or automatic sensor-driven operation
  • 1 year Warranty* (excludes consumables)

Technical Specifications:

Banding Specification 30mm (1.2”) wide x 100-120 microns (thickness)*
Banding Types Poly film or Paper banding
Banding Roll Size 150 metre (492’) length *
Control System Manual, Foot Pedal, Automatic
Electrical 110V, 50Hz/60Hz, 10A
Maximum Input Size 460mm (18”) x 200mm (7.9”)
Minimum Input Size 30mm (1.2”) x 10mm (0.4”)
Banding Speed 20 pieces/ minute **
Sealing Method Thermal Sealing (self-welding tape)
Feeder Handfed

* based on Graphic Whizard supplied banding rolls

** dependent on operator speed
