Heat Seal HSE50
Heat Seal HSE50

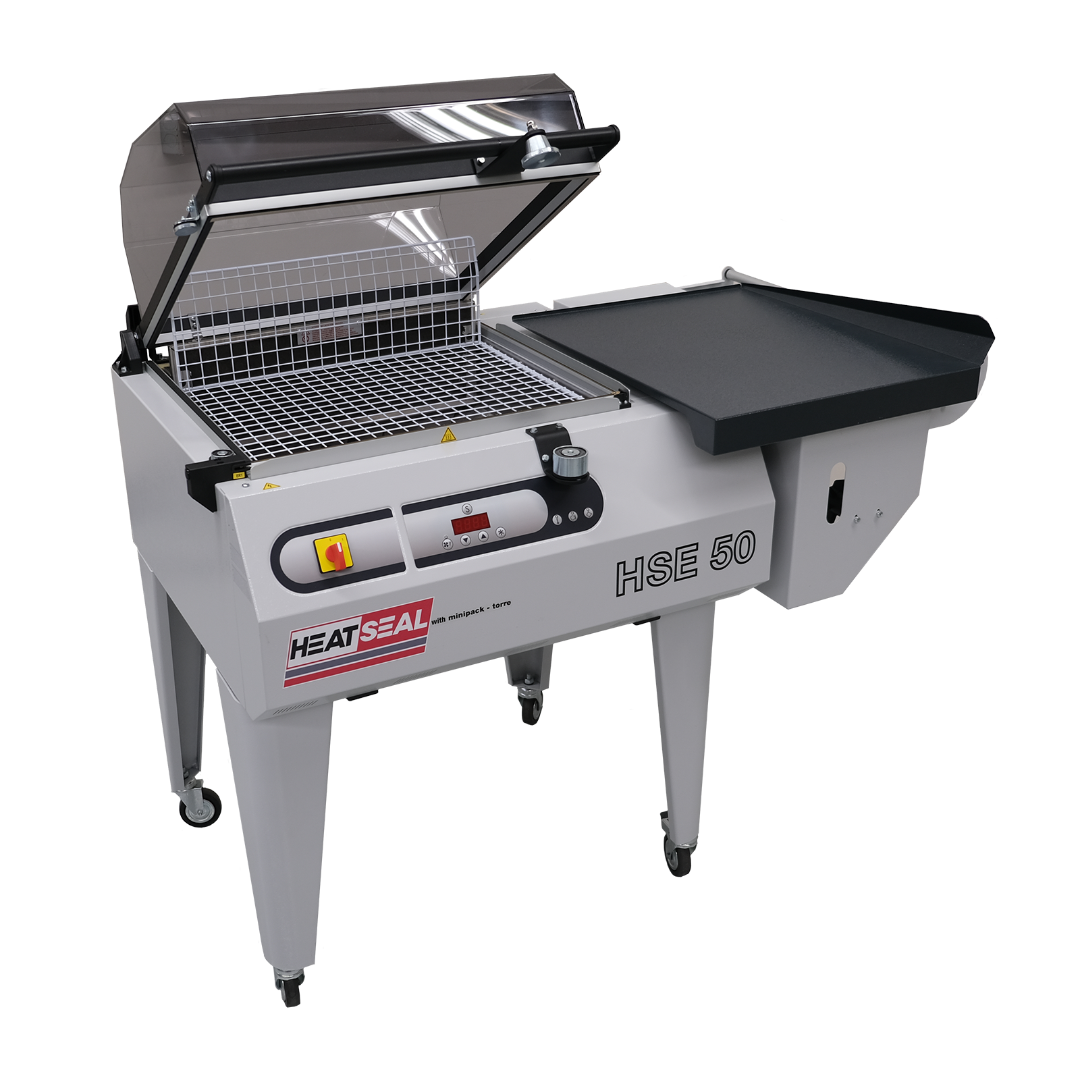

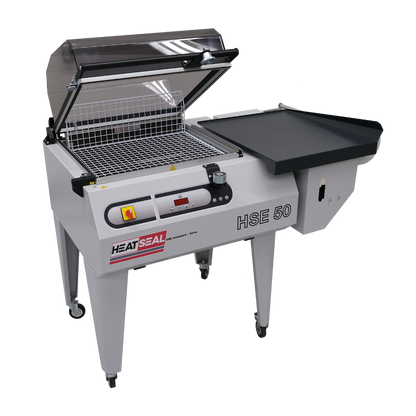

One-Step Shrink Wrap Machine
The HSE50 is a compact, all-electric, one-step shrink wrap system designed for retail packaging, light industrial shrink wrapping, and space-constrained environments. With simple digital controls, a cut-and-seal magnetic hold down, and support for product sizes up to 15” x 19.5”, the HSE50 offers quick, clean shrink wrapping with no compressed air required. It’s ideal for businesses looking for plug-and-play shrink wrapping without the footprint of larger tunnel systems.
Key Features
🔷 All-Electric Design – No air compressor required, simplifying installation and reducing maintenance.

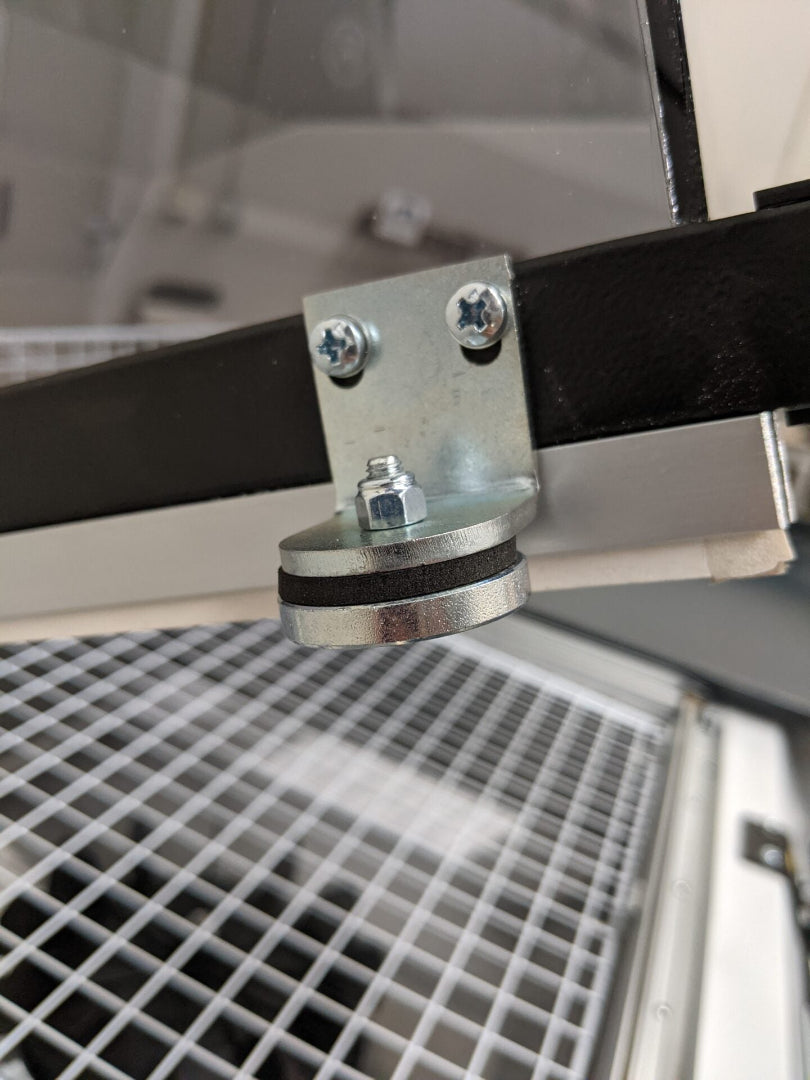

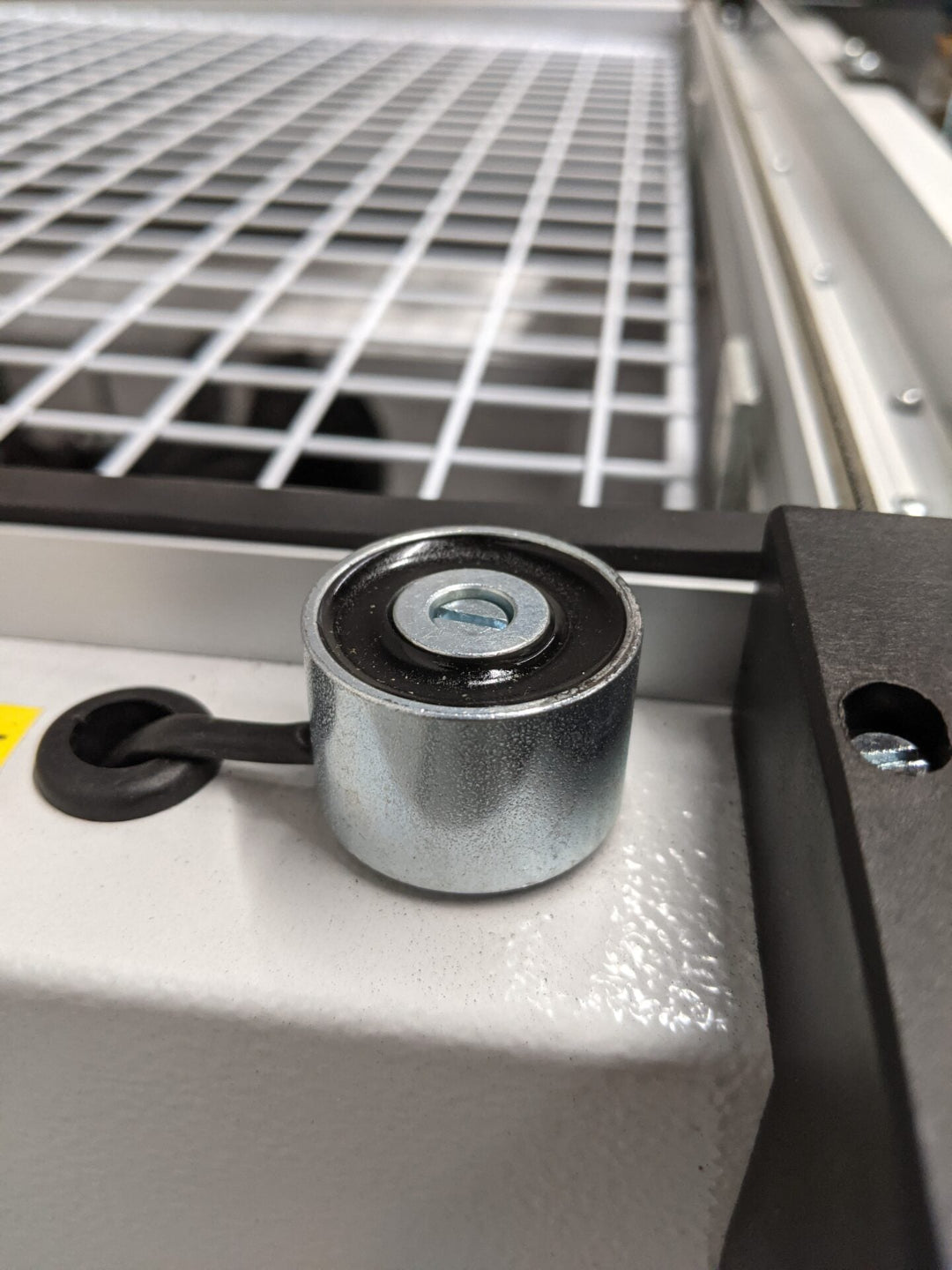

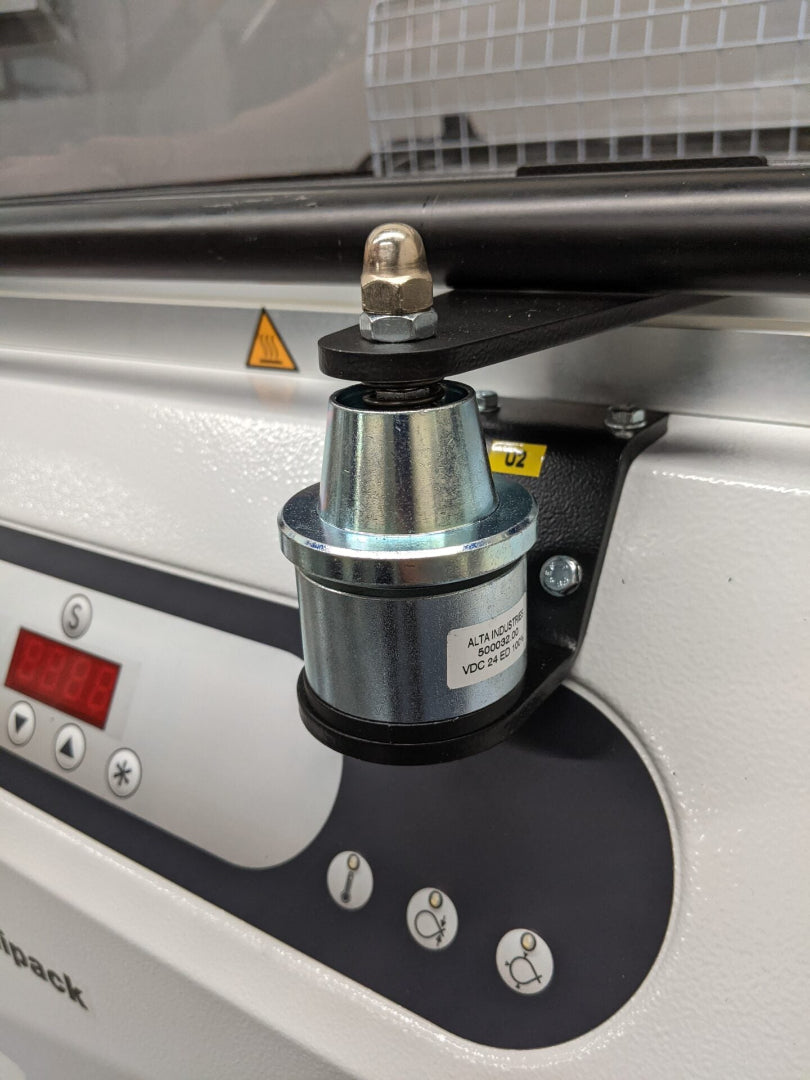

🔷 Cut-and-Seal in One Step – Magnetic hold down applies seal and shrink in a single motion.
🔷 Compact Footprint – Fits comfortably in retail, office, or space-limited production environments.
🔷 Digital Control Panel – Set and recall up to 10 custom programs for repeat jobs.
🔷 SoftShrink & Seal-Only Modes – For delicate products or operations not requiring full shrink.
🔷 Powder-Coated Steel Frame – Durable and cleanable for long-lasting operation.
🔷 Multiple Machine Alarms – Provides monitoring for heat, seal, and operational safety.

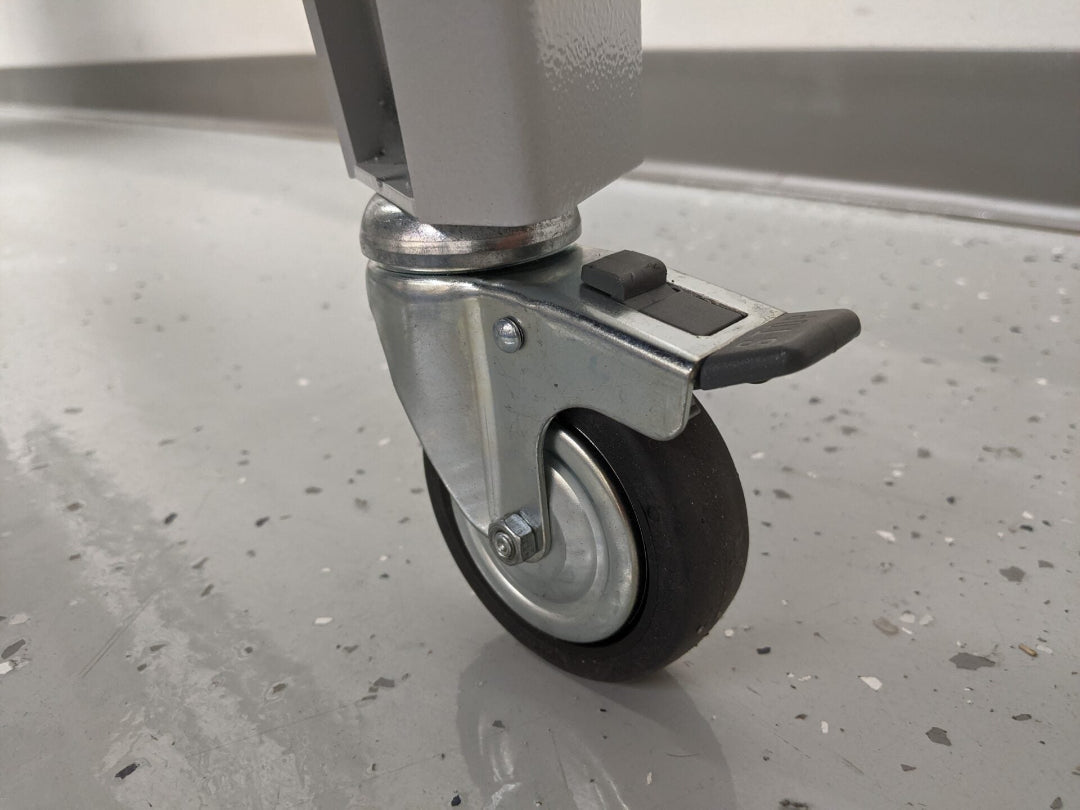

🔷 Locking Casters – Enables easy mobility with secure placement when in use.
🔷 Two-Year Limited Warranty – Peace of mind with long-term support.
Specifications
| Specification | Details |
|---|---|
| Seal Area | 15” W x 19.5” L (380mm x 500mm) |
| Max Product Size | 15” W x 21” L x 7.8” H (390 x 540 x 200 mm) |
| Film Roll Capacity | 23.5” W x 9.5” OD (600mm x 250mm) |
| Production Rate | Up to 5 packages per minute* |
| Working Height | 37” (940mm) |
| Machine Dimensions | 50” L x 32” W x 46” H (1260 x 810 x 1165 mm) |
| Weight | 232 lbs (105 kg) |
| Power Requirements | 200–240V AC, single phase, 16.5A |
* Throughput depends on film, product, and operator workflow.
Applications
📦 Retail Packaging – Quick and easy presentation wrapping for boxed goods, gift sets, and kits.
🖨 Printed Products – Protects books, manuals, and literature from handling or dust.

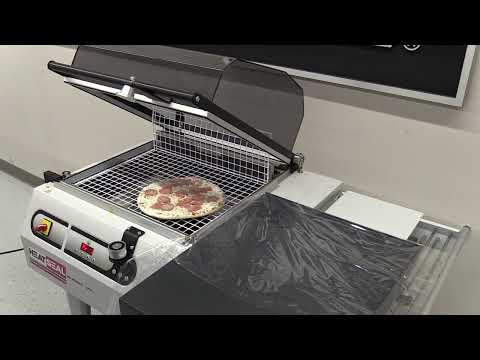

🧁 Food and Bakery Items – Ideal for shrink-wrapping trays, containers, and pre-packaged goods.
🛍 Gift and Subscription Boxes – Clean finish for e-commerce and specialty packaging.
Available Options
📍 Spare Seal Wire Kits – Ensure uninterrupted performance with replacement sealing wires.
📍 Custom Film Rolls – Choose from a range of polyolefin shrink films compatible with the HSE50.
📍 Worktable Accessories – Optional product guides or tray extenders for batch operations.
Benefits
✅ No air compressor needed, making it ideal for plug-and-play use anywhere.
✅ Simplifies shrink wrapping into a single step, reducing labor and time.
✅ Perfect for low- to mid-volume operations or point-of-sale packaging.
✅ Stores custom settings for faster setup and repeatability.
✅ Compact and mobile for environments where space is at a premium.
